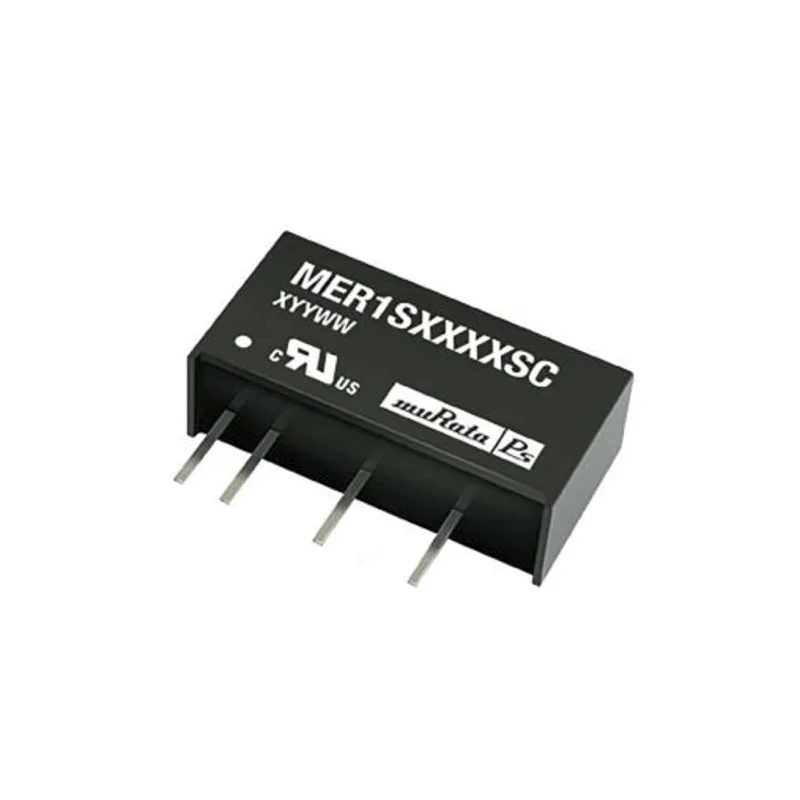

Murata Power Solutions MER1 SIP7 Package 1W Unregulated Isolated DC/DC Converter 5V DC Output 200mA 13.5-16.5V DC Input
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MER1 DC/DC Converter, 5V dc |
| Brand | Murata Power Solutions |
| Efficiency | 83.5% |
| Length | 19.65mm |
| Model | MER1 |
| Depth | 10.15mm |
| Gross Weight | 2.25g |
| Width | 6.15mm |
| Series | MER1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 7167000h |
| Number of outputs | 1 |
| Ripple and Noise | 20mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 16.5V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 13.5V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1kV dc |
| MER1S05xxSC | 1A |
| MER1S12xxSC | 0.375A |
| MER1S15xxSC | 0.375A |
| MER1S24xxSC | 0.2A |
| MER1S48xxSC | 0.1A |
Key Features
- The SIP7 package provides a compact footprint with industry standard pinout.
- Features galvanic isolation of 1kV DC to reduce switching noise interference.
- Operating temperature range from -40°C to 85°C ensures wide environmental adaptability.
- Efficiency rating of 83.5% minimizes power loss for improved performance.
- Fully encapsulated design requires no external heatsinks or additional components.
- Suitable for control system boards requiring stable isolated DC power sources.
- Meets RoHS compliance and UL94V-0 package material standards.
- MTBF calculated at 7,167,000 hours indicating high reliability.
Product Description
Murata Power Solutions MER1 MER1S1505SC DC/DC Converter is a high-quality 1W isolated unregulated DC to DC converter housed in a SIP7 package. It delivers a stable 5V DC output at 200mA with an input voltage range of 13.5V to 16.5V DC, making it ideal for electronic control system boards and applications needing localized and isolated power supply.
The converter features galvanic isolation with a voltage rating of 1kV DC which effectively reduces switching noise and enhances system performance. Its SIP7 package comes with an industry standard pinout and dimensions of 19.65mm length, 6.15mm width, and 10.15mm depth, facilitating easy PCB integration.
Designed to operate reliably in a wide temperature range from -40°C to 85°C, this converter is encapsulated with toroidal magnetics, eliminating the need for heatsinks or external capacitors. It achieves an efficiency of 83.5%, helping to minimize power losses in demanding applications.
It complies with RoHS environmental standards and is constructed using UL94V-0 flame retardant materials, assuring safety and quality. The converter has a mean time between failures (MTBF) of 7,167,000 hours, underscoring its suitability for long-term industrial use.
This product finds applications in industrial electronics, communication equipment, power supplies, and other systems requiring compact, efficient, and isolated DC power conversion.
The SIP7 package provides a compact footprint with industry standard pinout. Features galvanic isolation of 1kV DC to reduce switching noise interference. Operating temperature range from -40°C to 85°C ensures wide environmental adaptability.
Efficiency rating of 83.5% minimizes power loss for improved performance. Fully encapsulated design requires no external heatsinks or additional components. Suitable for control system boards requiring stable isolated DC power sources.
Meets RoHS compliance and UL94V-0 package material standards. MTBF calculated at 7,167,000 hours indicating high reliability. Explore more specialized DC/DC Converters and power solutions at EnvMart to suit your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 5V DC with a maximum output current of 200mA.
The input voltage range for this unit is from 13.5V to 16.5V DC.
It has an efficiency rating of 83.5%, which helps minimize power loss during operation.
The SIP7 package has dimensions of 19.65mm in length, 6.15mm in width, and 10.15mm in depth.
This model features galvanic isolation with a voltage rating of 1kV DC, reducing switching noise interference.
It operates reliably within a temperature range of -40°C to 85°C.
The MER1 converter has one output.
The MTBF for this unit is calculated at 7,167,000 hours, indicating high reliability.
This converter meets RoHS compliance and is constructed using UL94V-0 flame retardant materials.
The output ripple and noise is specified at 20mV peak-to-peak.
No, it features a fully encapsulated design that requires no external heatsinks or additional components.
It is suitable for control system boards and other applications requiring stable isolated DC power sources.
