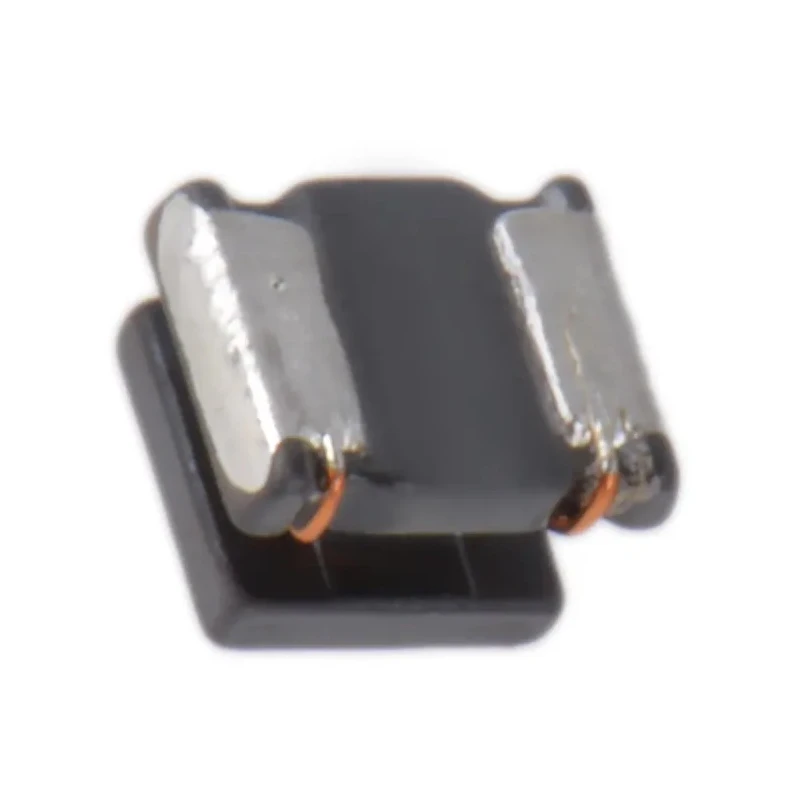

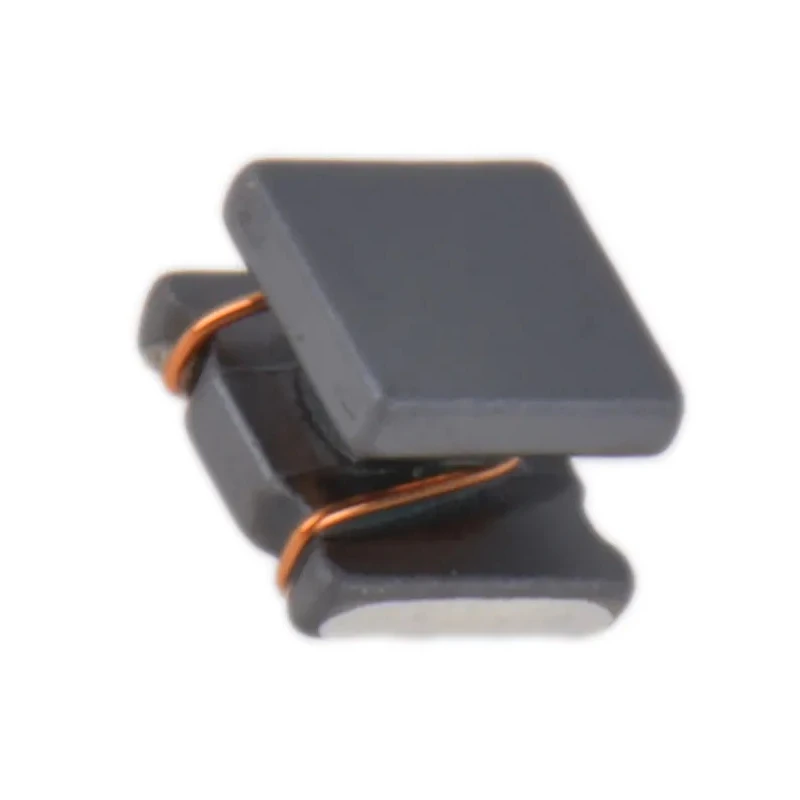

Murata 1210 Unshielded Wirewound Surface Mount Inductor 150 nH ±20 % 1.45 A Idc Ferrite Core LQH32CNR15M33L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 3.2mm |
| Model | LQH32CNR15M33L |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 150nH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 1.45A |
| Maximum DC Resistance | 36.4mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 400MHz |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a ferrite core for efficient magnetic performance.
- Compact 1210 package size measuring 3.2 mm length, 2.5 mm depth, and 2 mm height.
- Maximum DC resistance of 36.4 milliohms ensuring low power loss.
- Inductance tolerance of ±20 % suitable for various filtering applications.
- Maximum operating temperature of 85 degrees Celsius for high temperature stability.
- RoHS compliant with solder termination style for surface mounting.
- Maximum self-resonant frequency of 400 MHz allowing high-frequency operation.
- Wirewound construction with molded design for durability.
Product Description
Murata LQH32CNR15M33L is a high-quality 1210 unshielded wirewound surface mount inductor featuring a ferrite core. This inductor provides an inductance of 150 nanohenries with a tolerance of ±20 % and supports a maximum DC current of 1.45 amperes. Its compact dimensions of 3.2 mm length, 2.5 mm depth, and 2 mm height make it suitable for densely packed electronic assemblies.
The device exhibits a low maximum DC resistance of 36.4 milliohms, which contributes to low power loss and efficient energy use. It is constructed using wirewound technology with a molded design enhancing mechanical robustness and reliability under harsh operating conditions. The inductor operates stably across a temperature range from -40 °C to 85 °C and reaches a maximum self-resonant frequency of 400 MHz, making it versatile for high-frequency electronic applications.
Designed without shielding, this Surface Mount Inductor uses solder termination style and is supplied in embossed tape packaging for automated assembly processes. It complies with RoHS standards, ensuring environmental safety and regulatory adherence.
Commonly used as a filtration inductor in switch mode power supplies, it supports applications in consumer electronics, industrial systems, telecommunications, automotive electronics, and other commercial and industrial devices.
Constructed with a ferrite core for improved magnetic characteristics. Compact 1210 form factor ideal for surface mount technology. Low resistance minimizes voltage drop and power loss. Wide operating temperature range ensures performance stability.
RoHS compliant material and manufacturing. Wirewound and molded construction for durability. Maximum self-resonant frequency of 400 MHz supports high-frequency operation. Packaging in embossed tape suitable for automated PCB assembly.
This Murata inductor is sourced from Japan and designed to meet demanding electronic component standards. Explore more high-quality inductors and related components in EnvMart’s Electronics Components category for reliable industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 150 nanohenries (nH) with an inductance tolerance of ±20%.
This model has a length of 3.2 mm, a depth of 2.5 mm, and a height of 2 mm.
The maximum DC current supported by this inductor is 1.45 amperes (A).
The maximum operating temperature for this inductor is 85 degrees Celsius.
The core material used in this inductor is ferrite, which enhances its magnetic performance.
The maximum self-resonant frequency of this inductor is 400 MHz, allowing for high-frequency operation.
This inductor features a solder termination style suitable for surface mounting.
The maximum DC resistance of this inductor is 36.4 milliohms (mΩ), contributing to low power loss.
It is packaged in embossed tape, which is suitable for automated assembly processes.
This inductor operates within a temperature range of -40 °C to 85 °C, ensuring stability across varying conditions.
Yes, this inductor is RoHS compliant, ensuring it meets environmental safety standards.
This inductor is commonly used in filtration applications for switch mode power supplies and is suitable for consumer electronics, industrial systems, telecommunications, and automotive electronics.
