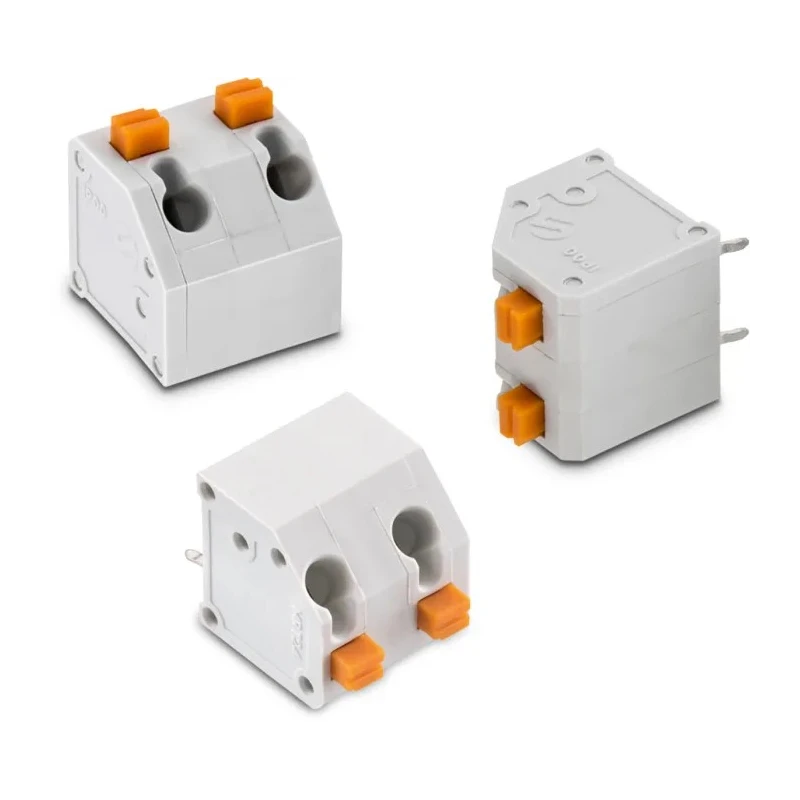

Wurth Elektronik 4172 Series 2-Contact 7 mm Pitch PCB Terminal Block Through Hole 1 Row 750V AC 4A 691417220002
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 750V ac |
| Brand | Wurth Elektronik |
| Colour | Grey |
| Orientation | 45° |
| Current | 4A |
| Length | 12mm |
| Depth | 13.2mm |
| Width | 12mm |
| Mount Type | Through Hole |
| Series | 4172 |
| Number of Rows | 1 |
| Pitch | 7mm |
| Standards/Approvals | cULus, RoHS, VDE |
| Number of Contacts | 2 |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 1.31mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 16AWG |
Key Features
- Rated current capacity of 4 amperes ensures reliable electrical connection.
- Pitch between contacts is 7 millimeters for precise PCB integration.
- Supports wire sizes from 0.05mm² to 1.31mm² (30 AWG to 16 AWG) for versatile wiring options.
- Designed for through-hole mounting with a single row of contacts and 45° orientation.
- Constructed with durable grey color housing meeting cULus, RoHS, and VDE standards.
- Made in Italy adhering to quality industrial manufacturing.
Product Description
Wurth Elektronik 691417220002 is a 4172 Series PCB Terminal Block designed for secure electrical connections on printed circuit boards. Featuring 2 contacts spaced with a 7 mm pitch, this terminal block supports a rated current of 4 amperes and can handle voltages up to 750V AC, making it suitable for a wide range of industrial and electronic applications.
The terminal block mounts through hole on a single row layout and is oriented at 45° ensuring reliable mechanical and electrical performance. It accommodates wire sizes from 0.05 mm² (30 AWG) to 1.31 mm² (16 AWG), providing flexibility for various wiring diameters commonly used in control panels and electrical assemblies.
It is constructed with a grey housing designed for durability and compliance with key industry standards including cULus, RoHS, and VDE certifications. Compact dimensions of 12mm length, 12mm width, and 13.2mm depth make it optimal for space-constrained PCB designs where secure connectivity is critical.
Manufactured in Italy, the Wurth Elektronik 4172 Series terminal block exemplifies quality and precision engineering. The product is ideal for use in electronic equipment, industrial automation systems, power and control circuits, and other environments requiring dependable terminal connections.
Rated 4A current capacity for robust electrical connectivity. 7 mm pitch and 2-contact design for standard PCB wiring. Through-hole mounting with 45° orientation for secure installation. Accommodates wire sizes from 0.05 mm² to 1.31 mm² (30 AWG to 16 AWG).
Complies with cULus, RoHS, and VDE standards ensuring safety and environmental compliance. Compact size supports dense PCB configurations. Grey color housing for industrial visual identification and quality.
Explore EnvMart’s extensive catalogue for a broad selection of terminal blocks and PCB connection solutions that meet diverse industrial, laboratory, and manufacturing requirements.
Explore more products in our PCB Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated current capacity of this terminal block is 4 amperes, ensuring reliable electrical connections.
The pitch between the contacts is 7 millimeters, which allows for precise integration on printed circuit boards.
This terminal block can handle voltages up to 750V AC, making it suitable for various applications.
It accommodates wire sizes ranging from 0.05 mm² (30 AWG) to 1.31 mm² (16 AWG), providing versatility for different wiring needs.
This model is designed for through-hole mounting with a single row of contacts oriented at 45° for secure installation.
The dimensions of this terminal block are 12 mm in length, 12 mm in width, and 13.2 mm in depth.
It complies with cULus, RoHS, and VDE standards, ensuring safety and environmental compliance.
This terminal block is manufactured in Italy, adhering to quality industrial manufacturing standards.
This model features 2 contacts, allowing for efficient electrical connections on PCBs.
The housing of this terminal block is grey, which aids in visual identification in industrial settings.
This terminal block belongs to the 4172 Series, which is designed for secure electrical connections.
The contacts on this terminal block are oriented at a 45° angle, facilitating easier access and connection.
