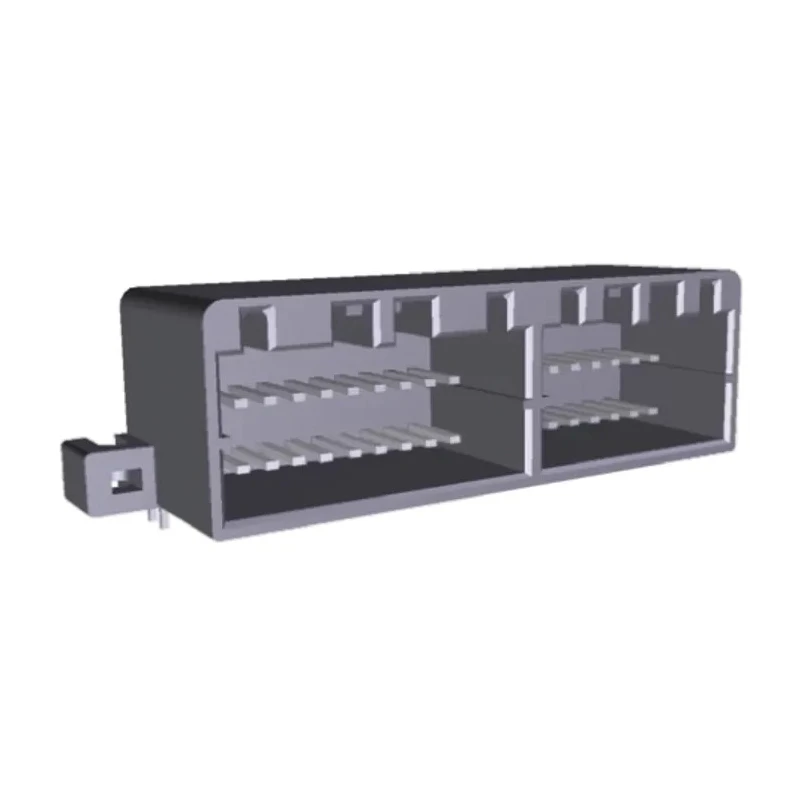

TE Connectivity MULTILOCK 040 II Series Right Angle Through Hole PCB Socket, 36-Contact, 2 Row, 2.5 mm Pitch Solder 179059-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 12V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Model | 179059-6 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | MULTILOCK 040 II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 36 |
| Contact Gender | Female |
| Connector System | Wire-to-Board |
| Row Pitch | 5.2mm |
Key Features
- Compact and durable PCB socket designed for automotive and general purpose applications.
- Features a right angle through hole mount for secure and easy installation.
- Constructed from thermoplastic housing with brass female contacts plated in tin.
- Supports voltage rating of 12V with operating temperature range from -30°C to 105°C.
- Includes integral double locking system and contact protection against rocking action.
- High density 2.5 mm pitch contacts ensure efficient signal transfer.
- Suitable for powertrain, safety, convenience, driver information, and body & chassis automotive systems.
- Wire-to-board connector system with robust solder termination for secure electrical connections.
Product Description
TE Connectivity 179059-6 MULTILOCK 040 II Series Right Angle Through Hole PCB Socket is a high-density, compact PCB connector designed to provide a robust wire-to-board interface. Featuring 36 female brass contacts plated with tin and spaced at a 2.5 mm pitch across 2 rows, this connector supports automotive and general purpose applications with excellent durability and reliability.
The thermoplastic housing includes an integral double locking mechanism ensuring contact retention while protecting pins from rocking during mating and unmating cycles. The right angle through hole mount allows straightforward PCB installation, supporting voltages up to 12V and operating across temperatures from -30°C to 105°C.
This connector is ideal for automotive systems including powertrain, safety, security, convenience features like air conditioning, radios, heated seats, driver information modules, and body & chassis control systems. It also suits signal transfer applications requiring compact, reliable wiring solutions.
The MULTILOCK 040 II series emphasizes high contact density and durability, making it a suitable choice for demanding industrial, automotive, and electronic manufacturing environments.
Compact and durable automotive connector with 36 contacts. Right angle, through hole mount for easy insertion on PCB. Thermoplastic housing with brass and tin plated female contacts. Integral double locking system prevents contact loosening.
Wide operating temperature range from -30°C to 105°C for harsh environments. Supports 12V operation typical of automotive applications. High density 2.5 mm pitch contact centres optimize PCB space usage. Protects contacts against rocking motion ensuring reliable connections.
This connector is widely used in industrial and automotive electronics for powertrain, safety, convenience, and information systems. For engineers seeking dependable wire-to-board connection solutions, the TE Connectivity MULTILOCK 040 II Series offers proven performance and installation efficiency. Explore further products in PCB Sockets category on EnvMart for comprehensive electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TE Connectivity MULTILOCK 040 II Series PCB socket supports a voltage rating of 12V.
This model operates within a temperature range of -30°C to 105°C.
It features 36 female contacts arranged in 2 rows.
This connector employs a right angle through hole mount for easy installation on a PCB.
The housing is made from thermoplastic, and the contacts are brass plated with tin.
The contacts are spaced at a 2.5 mm pitch.
Yes, it features an integral double locking system that ensures contact retention and protects against rocking during mating and unmating cycles.
Yes, it is designed for automotive systems, including powertrain, safety, and convenience features.
The termination type for this model is solder, providing secure electrical connections.
The row pitch for this connector is 5.2 mm.
The country of origin for this product is India.
It supports applications in powertrain, safety, convenience, driver information, and body & chassis automotive systems.
