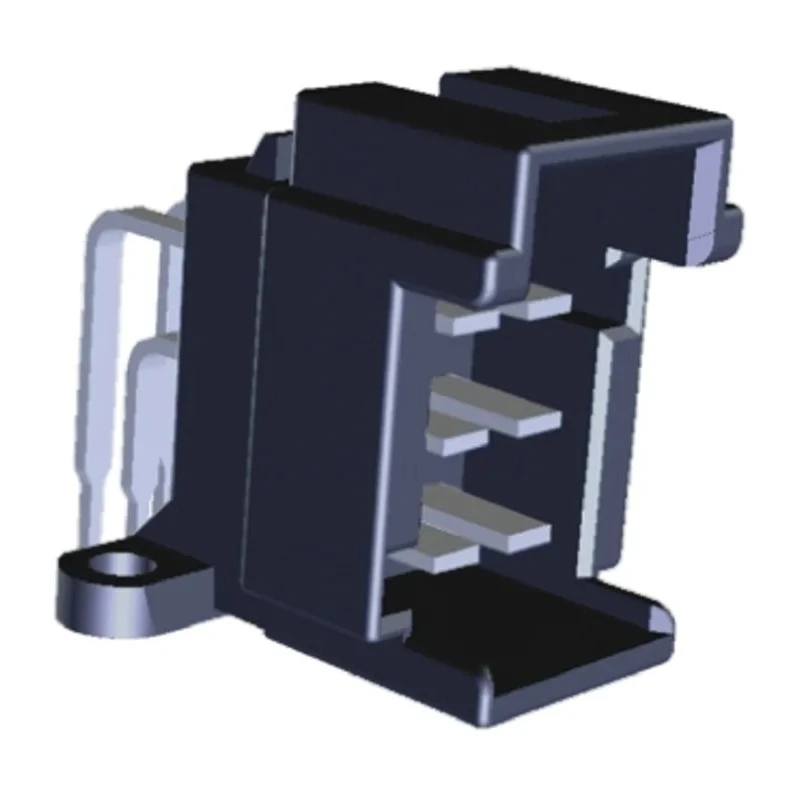

TE Connectivity Timer Automotive Connector Male Black Through Hole 6 Way Solder Termination 9-966140-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 26.2mm |
| Depth | 26mm |
| Width | 20.3mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Polyamide 66 |
| Contact Material | Phosphor Bronze |
| Series | Timer |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Sub Type | Plug Header |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Standards/Approvals | ELV, REACH, RoHS, UL 94HB |
| Contact Plating | Tin |
| Number of Contacts | 6 |
Key Features
- Connector type is automotive male with 6 contacts for secure fitment.
- Featuring a black polyamide 66 housing for durability and chemical resistance.
- Contacts are made from phosphor bronze with tin plating to improve conductivity and corrosion resistance.
- Designed for through-hole mounting with 3 rows of contacts for compact design.
- Suitable for operating temperatures from -40°C to 100°C ensuring performance under varied environmental conditions.
- Compliance with ELV, REACH, RoHS, and UL 94HB standards for safety and environmental requirements.
- The series is designed for Timer applications within automotive electronics.
- Compact dimensions of 20.3mm width, 26.2mm height, and 26mm depth.
Product Description
TE Connectivity model 9-966140-5 is a Timer Automotive Connector designed for robust and reliable male electrical connection in automotive electronic systems. It features a black polyamide 66 housing that provides excellent chemical and mechanical resistance, ensuring long operational durability.
This connector includes 6 contacts arranged in 3 rows, terminated via solder for secure electrical connection on through-hole PCBs. The contacts are manufactured using phosphor bronze and coated with tin for enhanced conductivity and resistance to corrosion.
The connector's operational temperature range from -40°C to 100°C makes it suitable for harsh automotive environments, maintaining electrical integrity over extreme ambient conditions. Compliance with ELV, REACH, RoHS, and UL 94HB safety and environmental standards ensures it fits rigorous industry demands for automotive electronics safety and sustainability.
With compact dimensions measuring 20.3mm width, 26.2mm height, and 26mm depth, it is ideal for integration in timer circuits and automotive control modules where space efficiency is critical.
Connector type: automotive male plug header. Termination type: solder through hole for PCB installation. Housing material: rugged polyamide 66. Contact material: phosphor bronze with tin plating. Number of contacts: 6 in 3 rows.
Operating temperature range: -40°C to 100°C. Certifications: ELV, REACH, RoHS, and UL 94HB compliant. Series: Timer automotive connectors. Color: black. Dimensions: 20.3 x 26.2 x 26 mm (W x H x D).
TE Connectivity connectors are widely used in automotive manufacturing, power systems, electronic device assembly, and laboratory testing environments. This timer Automotive Connector supports reliable and durable electrical interfaces suitable for all industrial applications requiring high-performance connection components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 100°C.
This model features 6 contacts arranged in 3 rows.
It uses solder termination for through-hole mounting on PCBs.
The contacts are made from phosphor bronze and coated with tin for improved conductivity and corrosion resistance.
The dimensions are 20.3mm in width, 26.2mm in height, and 26mm in depth.
Yes, it complies with ELV, REACH, RoHS, and UL 94HB standards.
The housing is made from polyamide 66, which provides durability and chemical resistance.
This connector is a male type.
It is designed for timer applications within automotive electronics.
The minimum operating temperature is -40°C.
This model is designed for through-hole mounting.
The connector is black in color.
