Phoenix Contact MKDS 3/2-5.08 Series Straight PCB Terminal Block, 2 Contacts, 5.08 mm Pitch, 24A, 400V, 1 Row 1711725

Free Delivery in India | Lowest Global Shipping Charges

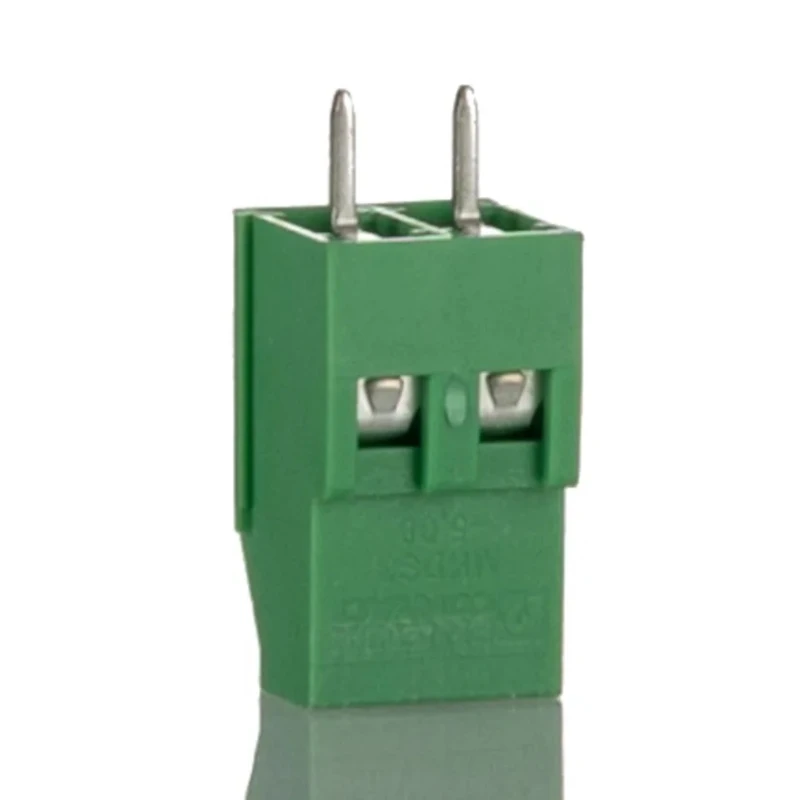

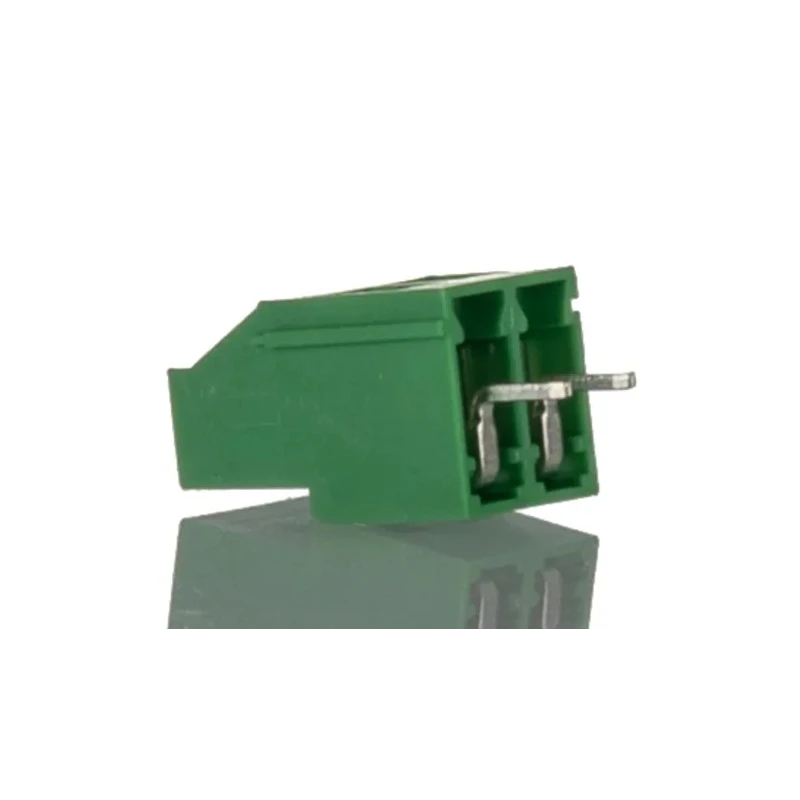

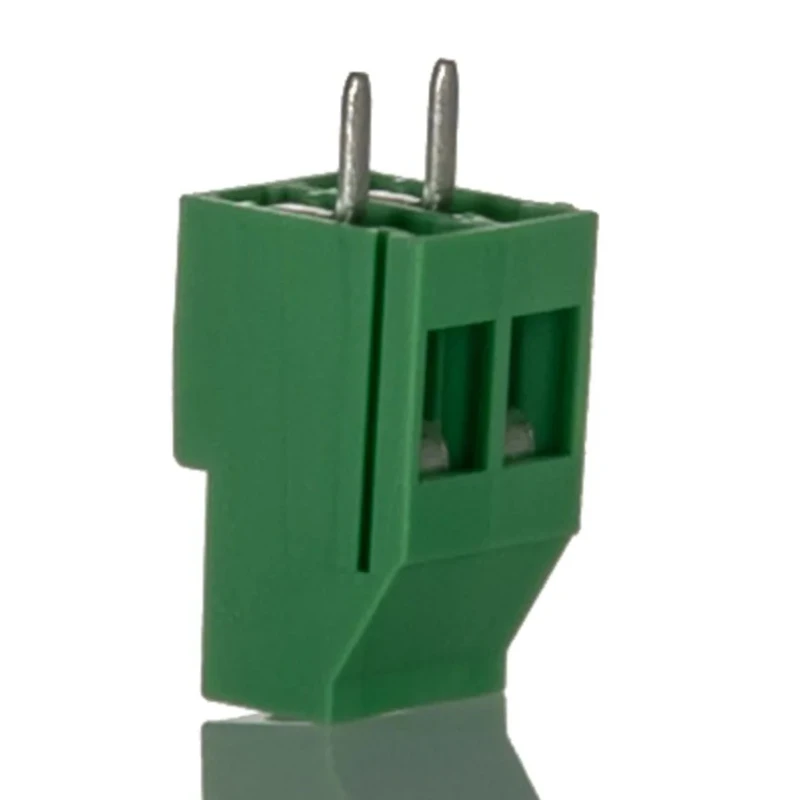

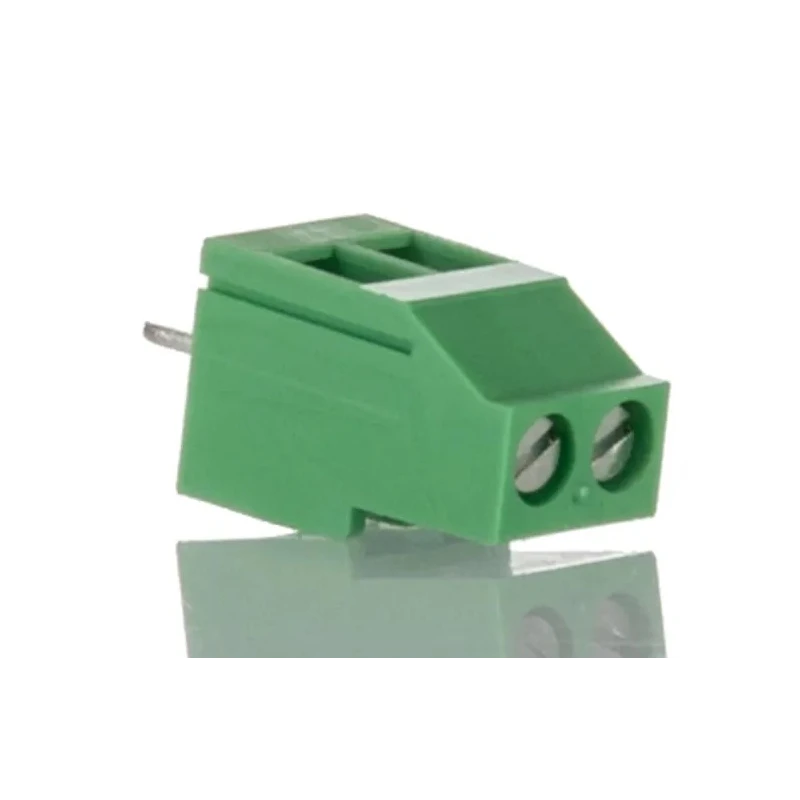

Phoenix Contact MKDS 3/2-5.08 Series Straight PCB Terminal Block, 2 Contacts, 5.08 mm Pitch, 24A, 400V, 1 Row 1711725

Name: Phoenix Contact MKDS 3/2-5.08 Series Straight PCB Terminal Block, 2 Contacts, 5.08 mm Pitch, 24A, 400V, 1 Row 1711725
Brand: PHOENIX CONTACT
SKU: 102926
Price: 1.83 USD
Availability: InStock



Category PCB Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	400V
Brand	Phoenix Contact
Orientation	Straight
Current	24A
Model	1711725
Series	MKDS 3/2-5.08
Number of Rows	1
Pitch	5.08mm
Number of Contacts	2

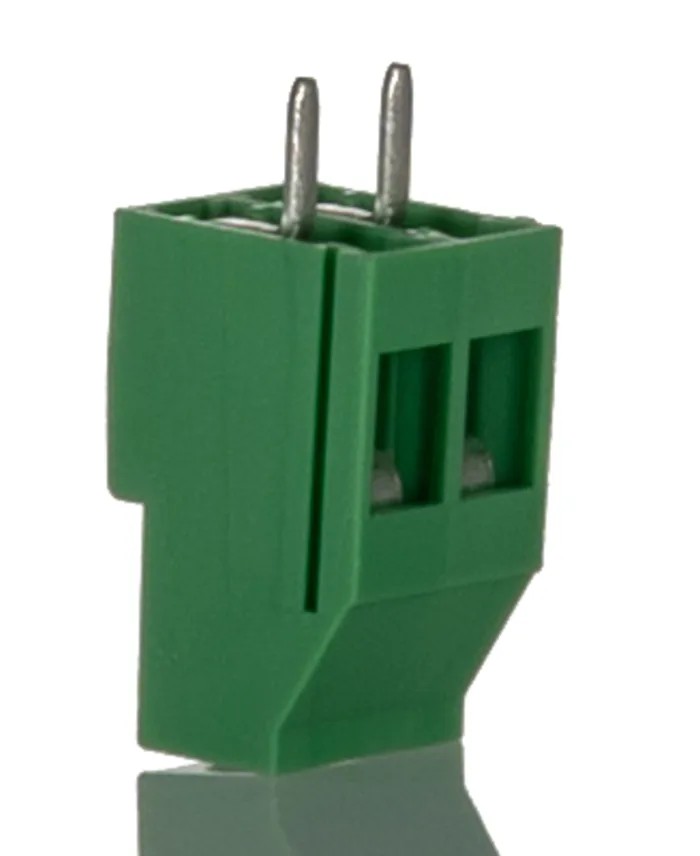

RS PRO PCB Terminal Block, 2-Contact, 5.08 mm Pitch, Through Hole, 1 RowBrand	RS PRO

Key Features

Features 2 contact points with 5.08 mm pitch for precise connections.
Single row, straight orientation suitable for PCB mounting.
Constructed with screw connection and tension sleeve for reliable conductor fixing.
Supports flexible conductors up to 2.5 mm² cross-section.
Designed for wave soldering processes ensuring secure attachment.
Operates efficiently within temperature range of -40°C to 105°C.
Integrated protective guide prevents incorrect conductor insertion.
Low temperature rise due to maximum contact pressure supporting safe operation.

Product Description

Phoenix Contact 1711725 MKDS 3/2-5.08 Series Straight PCB Terminal Block is engineered for high reliability in industrial and electronic applications requiring secure and stable connections. Rated at 24 amps current and supporting nominal voltage of 400 volts, this terminal block features a 5.08 mm pitch with a 2-contact, single-row straight configuration designed for seamless PCB integration.

The terminal block incorporates screw connections with tension sleeves which ensure consistent and secure conductor fixation, reducing risks of disconnection under vibration or thermal expansion. Its integrated protective guide effectively prevents incorrect conductor insertion, promoting safe and error-free wiring procedures.

Designed for wave soldering, it ensures strong mechanical and electrical connection suitable for automation and control systems, electrical panel assemblies, and other electronic device integrations. It accepts flexible conductors up to 2.5 mm² and is rated for use within temperature ranges of -40°C to 105°C, allowing operation in diverse environments.

Significant low temperature rise during operation is achieved through maximum contact pressure, enhancing long-term durability and safety of power transmission. The compact 1-row design facilitates efficient PCB layout and wiring organization, ideal for industrial, manufacturing, and automation sectors.

Features 2 contact points with 5.08 mm pitch for precise and reliable connections. Screw connection with tension sleeve ensures secure conductor fixation. Integrated protective guide prevents miswiring and conductor damage.

Supports flexible conductors up to 2.5 mm² cross-section. Rated for 24A current and 400V voltage for demanding electronic applications. Range of operating temperatures from -40°C to 105°C for harsh environments. Designed for wave soldering for secure PCB mounting.

Ideal for electrical panel assemblies and industrial automation systems. Manufactured in Germany with stringent quality controls.

This Phoenix Contact PCB Terminal Block is an essential component for industrial, laboratory, manufacturing, and automation applications requiring efficient power and signal distribution on printed circuit boards. For additional PCB connector and terminal block options, browse the Electronics Components category on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is rated for a maximum current of 24A and a nominal voltage of 400V, making it suitable for demanding electronic applications.

It features a pitch of 5.08 mm and has a 2-contact, single-row straight configuration designed for PCB integration.

It supports flexible conductors with a cross-section of up to 2.5 mm², ensuring secure connections.

This unit operates efficiently within a temperature range of -40°C to 105°C, suitable for various environmental conditions.

It incorporates screw connections with tension sleeves, which provide consistent and secure fixation of conductors, reducing disconnection risks.

Yes, it includes an integrated protective guide that effectively prevents incorrect conductor insertion, promoting safe wiring procedures.

It is designed for wave soldering processes, ensuring a strong mechanical and electrical connection for PCB mounting.

This terminal block is manufactured in Germany, adhering to stringent quality controls.

It is ideal for use in electrical panel assemblies, industrial automation systems, and other electronic device integrations.

The terminal block features a straight orientation, facilitating efficient PCB layout and wiring organization.

This model has a single row design, which is compact and efficient for PCB integration.

The low temperature rise achieved through maximum contact pressure enhances the long-term durability and safety of power transmission in this terminal block.
