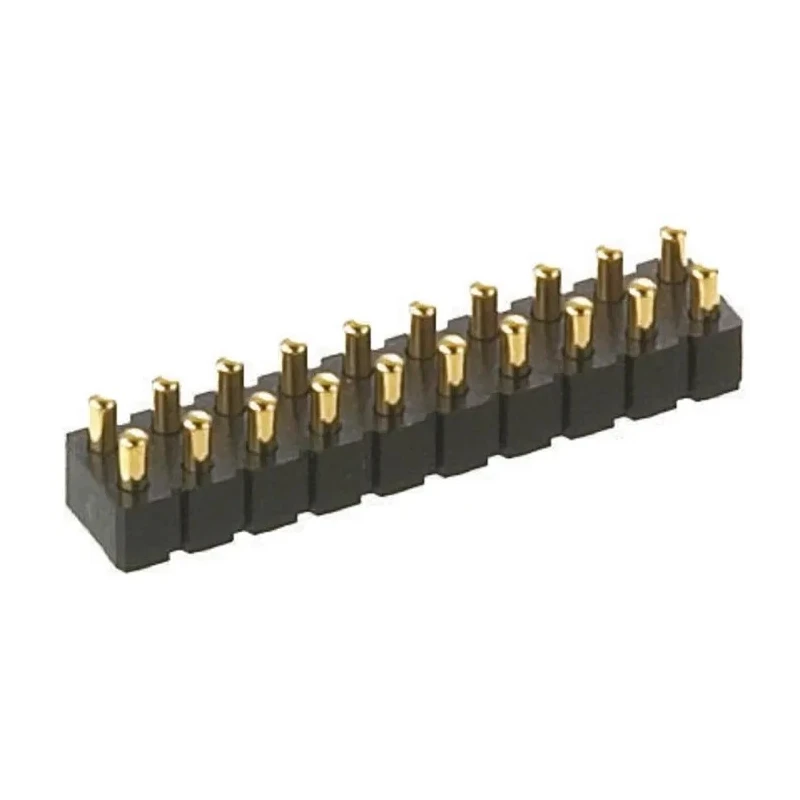

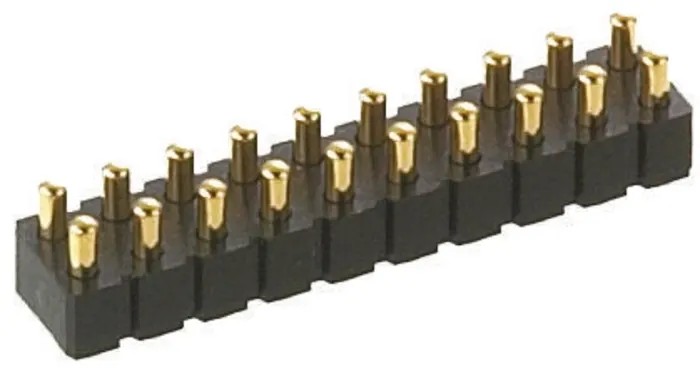

Preci-Dip 813 Series Straight Surface Spring Loaded Connector 16 Contacts 2.54 mm Pitch 2 Row Shrouded 813-S1-016-30-017191
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3.5A |
| Model | 813-S1-016-30-017191 |
| Mount Type | Surface |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | 813 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Features a two-row, shrouded design for secure connectivity.
- Made with fibreglass reinforced polyethylene terephthalate housing for durability.
- Gold-plated brass contacts provide excellent conductivity and corrosion resistance.
- Supports current rating of 3.5A and voltage of 150V.
- Designed for surface mount with solder termination for efficient PCB assembly.
- Operates reliably within a temperature range of -55°C to 125°C.
- Spring-loaded contacts ensure low and stable electrical resistance even under vibration or movement.
- Compact 2.54 mm row pitch suits dense PCB layouts.
Product Description
Preci-Dip 813-S1-016-30-017191 is a high-performance straight surface mount spring loaded connector designed for demanding electronic applications. It features 16 brass contacts arranged in two rows with a 2.54 mm pitch, providing stable multipoint electrical connections with low resistance. The housing is constructed from fibreglass reinforced polyethylene terephthalate, offering excellent mechanical strength and thermal stability over an operating temperature range from -55°C to 125°C.
The gold-plated contacts optimize conductivity and ensure corrosion resistance, while the spring-loaded mechanism maintains consistent electrical contact despite vibrations or mechanical movement. The connector is shrouded for protection and designed for solder termination onto PCBs with surface mount pads, facilitating efficient assembly and reliable operation.
This connector supports a current of 3.5 A and withstands voltages up to 150 V, making it suitable for industrial electronics, instrumentation, and control systems requiring robust, compact, and durable connector solutions.
The compact footprint with a 2.54 mm pitch and dual row configuration promotes high-density PCB designs. Manufactured in Switzerland, this connector meets UL 94V-0 standards and offers an ideal alternative to conventional connection methods.
Two-row shrouded spring-loaded contacts deliver secure and reliable connectivity. Fibreglass reinforced polyethylene terephthalate housing ensures durability under harsh conditions. Gold-plated brass contacts minimize contact resistance and provide long service life.
Surface mount solder termination simplifies PCB assembly and improves efficiency. Wide operating temperature range from -55°C to 125°C supports diverse applications. Spring mechanism guarantees stable multipoint connections without micro-discontinuities.
Compact 2.54 mm pitch suitable for space-constrained electronic assemblies. Ideal for industrial, instrumentation, and electronic manufacturing environments. Manufactured in Switzerland, assuring premium quality and reliability.
Explore a wide selection of PCB connectors and related components at EnvMart.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage rating of 150V.
This model has a current rating of 3.5A.
The contact pitch is 2.54 mm, suitable for dense PCB layouts.
The housing is made from fibreglass reinforced polyethylene terephthalate.
It features solder termination for efficient PCB assembly.
It operates reliably within a temperature range of -55°C to 125°C.
This connector has 16 contacts arranged in two rows.
It features male contacts and is designed for surface mount applications.
The shrouded design provides protection and secure connectivity.
It is manufactured in Switzerland.
The contacts are gold-plated to optimize conductivity and corrosion resistance.
It is suitable for industrial electronics, instrumentation, and control systems requiring robust connectivity.
