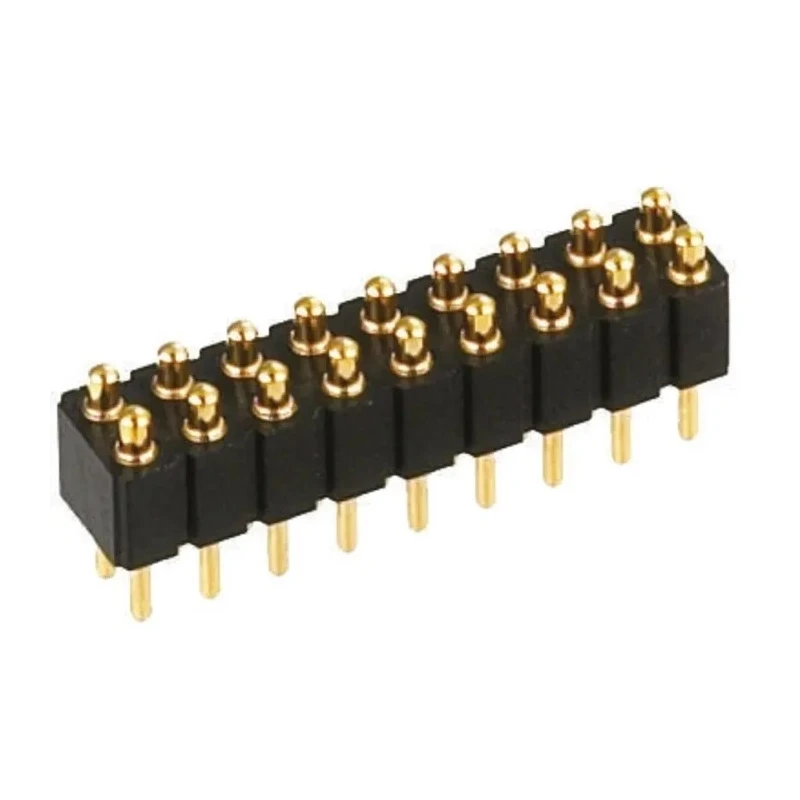

Preci-Dip 813 Series Straight Through Hole Spring Loaded Connector, 20 Contact(s), 2.54 mm Pitch, 2 813-S1-020-10-016101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3.5A |
| Model | 813-S1-020-10-016101 |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | 813 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Features a straight through hole mount type for stable PCB installation.
- Constructed with fibreglass reinforced polyethylene terephthalate housing material for durability.
- Offers 3.5A current rating with 150V voltage tolerance.
- Gold plated brass contacts ensure optimal conductivity and corrosion resistance.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Includes 2.54 mm row pitch with shrouded male contacts for enhanced safety.
- Plunger stroke length is 1.4 mm with plastic body height of 4 mm for precise connection.
- Suitable for industrial and electronic applications requiring low resistance connections.
Product Description
Preci-Dip 813-S1-020-10-016101 Spring Loaded Connector is a high-quality PCB connector designed for through hole mounting with 20 spring-loaded contacts arranged in two rows at 2.54 mm pitch. The connector features a robust fibreglass reinforced polyethylene terephthalate housing, ensuring mechanical stability and durability in diverse electronic and industrial applications.
The brass contacts are gold plated, providing excellent conductivity and long-term corrosion resistance. This connector supports a current rating of 3.5A and voltage up to 150V, suitable for various low-voltage PCB interconnections. It operates reliably over a wide temperature range from -55°C to 125°C, making it versatile for harsh environments.
Designed with a shrouded male contact configuration and plunger stroke length of 1.4 mm, it ensures low and stable electrical resistance without micro-discontinuities, even under vibration or movement conditions.
This connector is ideal for industrial electronics, power connectors, test equipment, and other applications where dependable multipoint connections are critical. Its through hole mount type facilitates firm and secure PCB attachment, enhancing production efficiency.
Package contains a single Preci-Dip 813 series straight through hole, spring loaded connector with 20 contacts and 2 rows. Features a straight through hole mounting style for PCB integration. Gold plated brass contacts maintain consistent conductivity.
Fibreglass reinforced housing provides mechanical strength. Operates within -55°C to 125°C temperature range. Ensures stable low resistance under vibration and movement. Supports 3.5A current and 150V voltage ratings. Plunger stroke length of 1.4 mm for reliable contact engagement.
This product is designed for industrial and electronic component applications and is made in Switzerland. Browse Preci-Dip connectors and PCB header products for more options in the EnvMart catalog.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of 3.5A, making it suitable for low-voltage PCB interconnections.
It has a voltage tolerance of 150V, allowing it to be used in various electronic applications.
This model operates reliably within a temperature range of -55°C to 125°C, suitable for harsh environments.
The connector features 20 contacts arranged in two rows, providing multiple connection points.
It uses a through hole mounting type, ensuring stable installation on PCBs.
The housing is made from fibreglass reinforced polyethylene terephthalate, and the contacts are made of brass with gold plating for optimal conductivity.
The contacts are arranged at a pitch of 2.54 mm, which is standard for many PCB applications.
The plunger stroke length is 1.4 mm, which helps ensure reliable contact engagement.
Yes, it is designed for industrial and electronic applications requiring low resistance connections.
The connector features shrouded male contacts, enhancing safety during connections.
This connector is manufactured in Switzerland, ensuring a high standard of production.
It uses a solder termination type, which is common for PCB connections.
