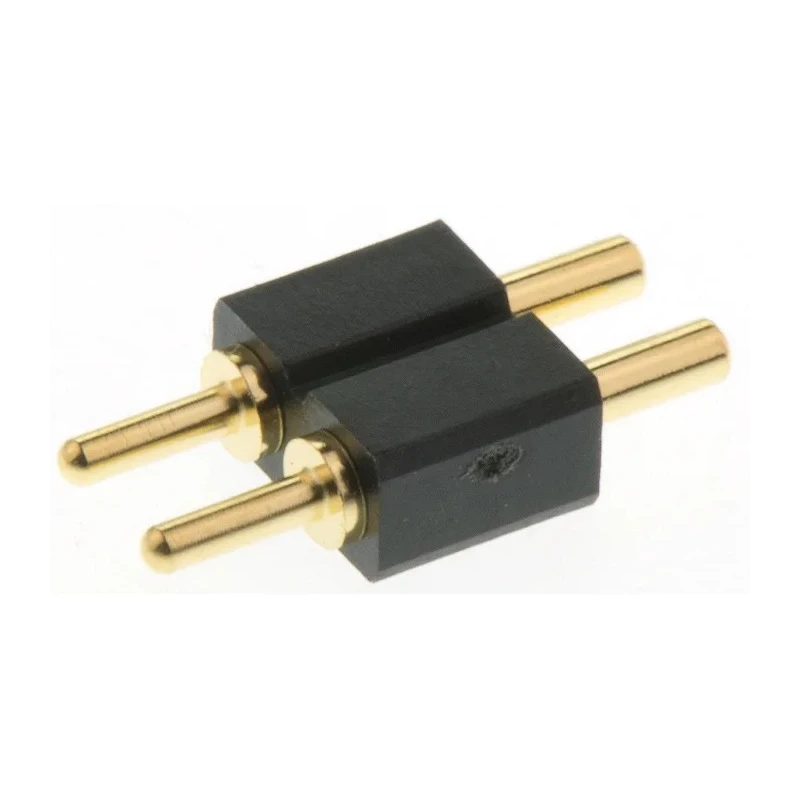

Preci-Dip 811 Series Straight Through Hole Spring Loaded Connector 2 Contact(s) 2.54 mm Pitch 1 Row 811-S1-002-10-017101

Preci-Dip 811-S1-002-10-017101 is a high-quality spring loaded connector from the 811 Series, featuring 2 contacts with a 2.54 mm pitch and 1 row, designed with a straight through hole mount and shrouded housing. Manufactured with a fibreglass reinforced polyethylene terephthalate body, this connector combines durability with reliable electrical performance.

The brass contacts are plated with gold, providing low electrical resistance and excellent conductivity. This spring loaded contact design allows for stable multipoint connections that maintain contact quality even under mechanical vibrations, enhancing system reliability in diverse industrial and electronic environments.

Rated for a current of 3.5 A at 150 V, the connector is suitable for moderate power applications. It tolerates operating temperatures from -55°C to a maximum of 125°C, supporting usage in harsh conditions. The termination type is solder, with male contact gender, enabling straightforward PCB assembly.

The plastic housing height is 4 mm, and the plunger stroke length is 1.4 mm, providing precise mechanical characteristics essential for custom PCB layouts. This product is manufactured in Switzerland, adhering to stringent quality control and ensuring long-term performance.

Applications include use in electronic components, power and connectors, and PCB headers, ideal for industrial, manufacturing, and electronic assembly processes requiring dependable spring loaded connectors.

Features a straight through hole mounting type ensuring secure PCB connection. Shrouded design provides protection and prevents accidental contact. Constructed with brass contacts plated in gold for excellent conductivity.

Fibreglass reinforced polyethylene terephthalate housing ensures durability and temperature resistance. Supports continuous current rating of 3.5 A and voltage up to 150 V. Operates reliably in temperatures ranging from -55°C to 125°C.

Contact termination is by soldering with male contact gender. Designed as a 2 contact, single row connector suitable for industrial electronics applications. Manufactured in Switzerland ensuring strict quality standards.

Ideal for use in electronic components, power connectors, and PCB header applications. Browse more PCB Connectors & Wire Housings and Preci-Dip brand products at EnvMart for a wide selection of reliable components to support your electronic assemblies and projects.
