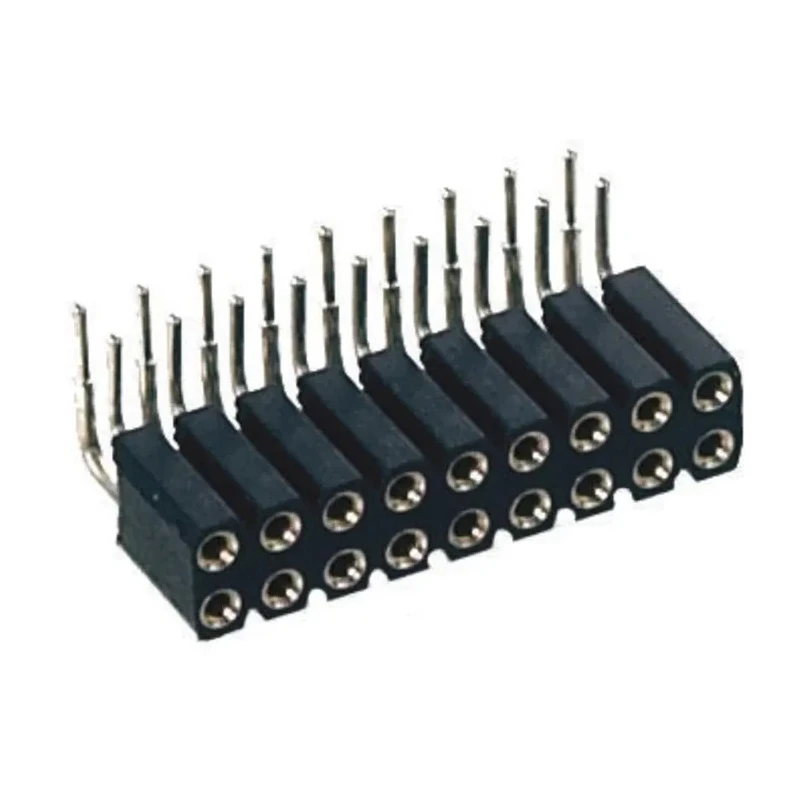

Preci-Dip 803 Series Right Angle Surface PCB Socket, 24-Contact, 2 Row, 2.54 mm Pitch, 12A, 150V 803-87-024-20-001101
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Right Angle |
| Current | 12A |
| Mount Type | Surface |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Beryllium Copper Alloy |
| Series | 803 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold Flash |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with black glass filled polyester housing for durability.
- Supports a current rating of 12A and voltage of 150V for reliable electrical applications.
- Features gold flash-plated beryllium copper alloy female contacts to ensure low resistance and long life.
- Designed as a right angle surface mount for efficient PCB connection and space saving.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Termination is by solder for secure electrical and mechanical connection.
- Suitable for board-to-board connector systems in industrial electronic assemblies.
- Compliant with UL 94V-0 standard for flammability resistance.
Product Description
Preci-Dip 803-87-024-20-001101 is a right angle surface PCB socket connector designed for board-to-board electronic interconnection featuring 24 contact points arranged in 2 rows at a 2.54 mm pitch.
The housing is made from black glass filled polyester which provides excellent mechanical strength and thermal resistance. The contacts are female and fabricated from beryllium copper alloy, plated with gold flash for enhanced conductivity and corrosion resistance.
This socket supports a nominal current rating of 12 amperes and a voltage rating of 150 volts, making it suitable for various industrial, electronic manufacturing, and repair applications where reliable connectivity is critical.
It is designed for surface mounting on printed circuit boards with right angle orientation, enabling efficient board layouts and space optimization. The operating temperature range from -55°C to 125°C ensures performance reliability in diverse environmental conditions.
The termination type uses solder, facilitating durable and stable electrical connections. The product conforms to UL 94V-0 standards, highlighting stringent material flame retardance suitable for industrial electronics.
Black glass filled polyester housing offers strength and durability. Beryllium copper alloy contacts with gold flash plating provide excellent electrical performance. Right angle surface mount for compact PCB design. Rated for 12 A current and 150 V voltage.
Wide operating temperature range from -55°C to 125°C. Solder termination ensures secure connectivity. Complies with UL 94V-0 flammability standard.
This PCB socket is widely used in industrial, electronic manufacturing, and laboratory equipment applications requiring reliable board-to-board connections with robust mechanical and electrical characteristics.
Explore similar PCB Sockets and connectors at EnvMart to find the ideal components for your electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 12A and a voltage rating of 150V, making it suitable for reliable electrical applications.
The housing is made from black glass filled polyester, while the contacts are fabricated from beryllium copper alloy and plated with gold flash for enhanced conductivity.
This connector features a 2.54 mm pitch and has 24 contacts arranged in 2 rows.
It operates reliably within a temperature range of -55°C to 125°C, suitable for diverse environmental conditions.
The termination type for this socket is solder, ensuring secure electrical and mechanical connections.
This model is designed for right angle orientation, allowing for efficient PCB layouts and space optimization.
Yes, it complies with the UL 94V-0 standard for flammability resistance, suitable for industrial electronics.
This socket is designed for board-to-board connector systems, making it suitable for various electronic applications.
The contacts in this socket are female, designed for compatibility with male connectors.
The country of origin for this PCB socket is India.
It is widely used in industrial, electronic manufacturing, and laboratory equipment applications requiring reliable board-to-board connections.
The specific dimensions of this socket are not provided, but it is designed for a 2.54 mm pitch and a right angle surface mount configuration.
