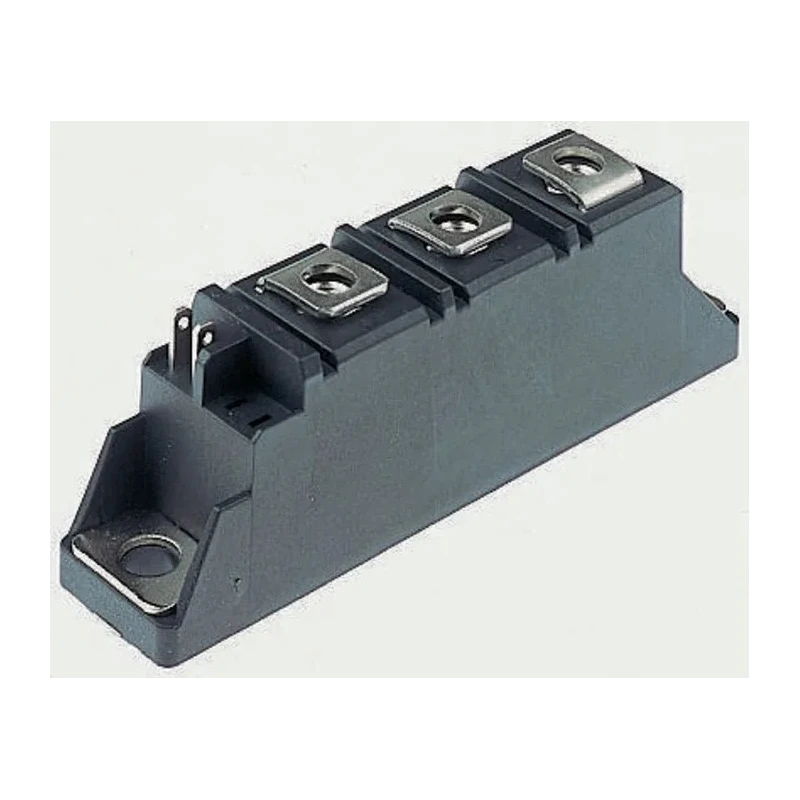

Vishay 1 kV 80 A Recovery Diode 3-Pin TO-240 VS-VSKJ71/10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 35mm |
| Length | 92mm |
| Model | VS-VSKJ71/10 |
| Width | 21mm |
| Mount Type | Panel |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-240 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 80A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Common Anode |
| Rectifier Type | Recovery |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.6kA |
| Maximum Forward Voltage Vf | 1.6V |
Key Features
- Standard recovery rectifier diode suitable for industrial power electronics.
- Panel mount type with TO-240 package ensuring durable installation.
- Common anode diode configuration optimizes circuit design flexibility.
- Supports peak non-repetitive forward surge current up to 1.6 kA.
- Operating temperature range spans from -40°C to 150°C ensuring reliable performance.
- Maximum forward voltage drop of 1.6 V minimizing power loss.
- Peak reverse current limited to 10 mA enhancing efficiency.
Product Description
Vishay VS-VSKJ71/10 is a standard recovery power diode engineered for high current and voltage applications. Rated for 1 kV peak reverse repetitive voltage and 80 A maximum continuous forward current, it delivers reliable switching performance in a TO-240 package intended for panel mount installations. The common anode diode configuration lends versatility for integration into power supply and rectifier circuits.
The device supports a peak non-repetitive forward surge current of 1.6 kA, making it suitable for transient load conditions common in industrial electronics. Its maximum forward voltage of 1.6 V ensures efficient operation with minimized conduction losses. Operating temperature ranges from -40°C to 150°C, allowing use in a variety of environments including demanding automotive and industrial settings.
With compact physical dimensions (length 92 mm, height 35 mm, and width 21 mm), the diode offers space-saving benefits for dense circuit boards. The 3-pin configuration facilitates secure mechanical and electrical connections. While it carries no specific automotive certifications, the diode complies with standard recovery rectifier product requirements and is ideal for power conversion, motor drives, and industrial power management systems.
Standard recovery rectifier diode suitable for industrial power electronics. Panel mount type with TO-240 package ensuring durable installation. Common anode diode configuration optimizes circuit design flexibility. Supports peak non-repetitive forward surge current up to 1.6 kA.
Operating temperature range spans from -40°C to 150°C ensuring reliable performance. Maximum forward voltage drop of 1.6 V minimizing power loss. Compact dimensions: length 92 mm, height 35 mm, width 21 mm. Rectifier type: Recovery with 3 pins for robust connection.
Peak reverse current limited to 10 mA enhancing efficiency.
This product is suitable for industrial, laboratory, electronic component manufacturing, power supply design, and HVAC electrical applications. Vishay’s engineering expertise ensures this diode meets rigorous quality standards for continuous and surge current demands. Explore the Electronics & Electricals Semiconductor category at EnvMart for Vishay’s comprehensive range of power rectifiers and related components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VS-VSKJ71/10 diode is 80 A.
This model has a peak reverse repetitive voltage rating of 1 kV.
The operating temperature range for the VS-VSKJ71/10 spans from -40°C to 150°C.
The maximum forward voltage drop for this diode is 1.6 V.
This diode supports panel mount installation with a TO-240 package type.
The VS-VSKJ71/10 features a common anode diode configuration.
It supports a peak non-repetitive forward surge current of up to 1.6 kA.
The physical dimensions are 92 mm in length, 35 mm in height, and 21 mm in width.
The peak reverse current is limited to 10 mA for enhanced efficiency.
This diode is suitable for industrial power management systems, power supply design, and motor drives.
The VS-VSKJ71/10 has a pin count of 3.
The country of origin for this diode is India.
