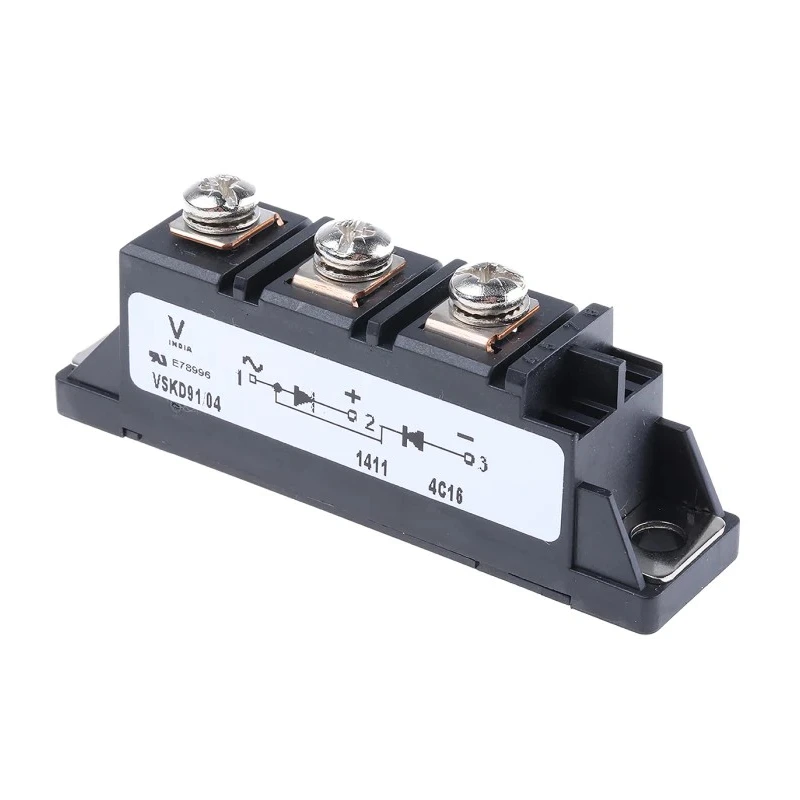

Vishay 400 V 100 A Standard Recovery Diode 3-Pin TO-240 VS-VSKD91/04
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 35mm |
| Length | 92mm |
| Model | VS-VSKD91/04 |
| Width | 22.6mm |
| Mount Type | Panel |
| Series | VS-VSKD91 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-240 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 100A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Series |
| Rectifier Type | Recovery |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2.1kA |
| Maximum Forward Voltage Vf | 1.55V |
Key Features
- Panel mount type ensuring secure installation in electronic assemblies.
- 3-pin configuration suitable for standard recovery applications.
- Maximum forward voltage of 1.55 V to optimize power efficiency.
- Wide operating temperature range from -40°C to 150°C for reliable performance.
- High peak non-repetitive forward surge current rating of 2.1 kA handles transient conditions.
- Designed for industrial and electronic component applications requiring robust rectifier performance.
- No automotive or special approvals; standard recovery diode for general use.
Product Description
Vishay VS-VSKD91/04 is a high-efficiency standard recovery diode designed for applications requiring a maximum continuous forward current of 100 A and a peak repetitive reverse voltage of 400 V. Packaged in the industry-standard TO-240 format with a 3-pin configuration, it is engineered to provide reliable, efficient rectification in a wide range of electronic systems.
The diode supports a comprehensive operating temperature range from -40°C to 150°C, offering versatility for demanding industrial, commercial, and electronic component manufacturing environments. Its maximum forward voltage drop of 1.55 V ensures minimal power losses, enhancing system efficiency.
With a peak non-repetitive forward surge current rating of 2.1 kA, this device can withstand transient surge events common in power electronics. The diode’s compact physical dimensions (92 mm length, 22.6 mm width, 35 mm height) facilitate easy integration in panel mount assemblies demanding space-saving solutions.
This standard recovery diode is appropriate for use in rectifier circuits within power and connector modules typical in manufacturing, water treatment, HVAC, and industrial automation systems where robust semiconductor components are essential.
Panel mount type ensures stable and secure integration into assemblies. Industry-standard TO-240 package allows for compatibility with common electronic designs. Wide temperature operation supports high reliability in harsh environments.
High surge current capability accommodates transient power spikes. Compact design optimizes space utilization in electronic modules. Standard recovery rectifier type meets typical power conversion needs.
This product is a valuable component for engineers and technicians looking to enhance power efficiency and reliability in electronic circuits. Explore more Vishay semiconductor products and related components in the Environmental Mart catalog for comprehensive solutions to your electronic component requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating for this diode is 100 A.
The peak reverse repetitive voltage for this model is 400 V.
The maximum forward voltage drop of this diode is 1.55 V.
The peak non-repetitive forward surge current rating is 2.1 kA.
This diode has dimensions of 92 mm in length, 22.6 mm in width, and 35 mm in height.
The operating temperature range for this model is from -40°C to 150°C.
This diode supports panel mount installation, ensuring secure integration into electronic assemblies.
The pin configuration for this diode is 3 pins.
This model is a standard recovery diode, suitable for general use in rectifier circuits.
This diode is typically used in rectifier circuits within power and connector modules for manufacturing, water treatment, HVAC, and industrial automation systems.
The peak reverse current for this model is 10 mA.
The country of origin for this diode is India.
