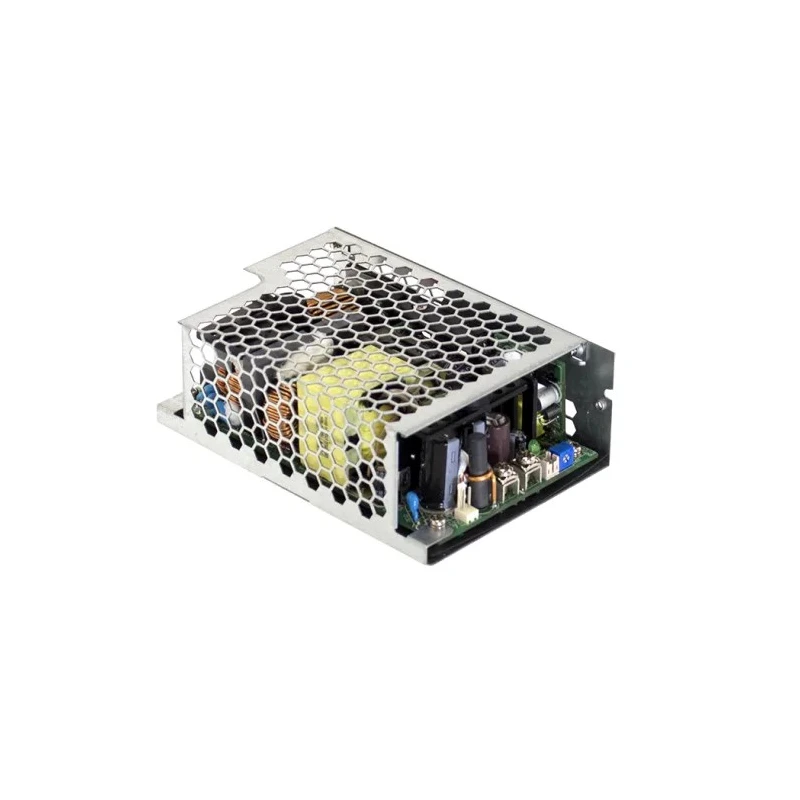

MEAN WELL Switching Power Supply PCB Mount 24V dc, 499.2W, 20.8A, 80-264V AC Input, Model RPS-500-24-C

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Switching Power Supply PCB Mount 24V dc, 499.2W, 20.8A, 80-264V AC Input, Model RPS-500-24-C

Name: MEAN WELL Switching Power Supply PCB Mount 24V dc, 499.2W, 20.8A, 80-264V AC Input, Model RPS-500-24-C
Brand: MEAN WELL
SKU: 102152
Price: 20.22 USD
Availability: InStock



Category Switching Power Supply Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	499.2W
Efficiency	93%
Length	130mm
Model	RPS-500-24-C
Depth	43mm
Gross Weight	540g
Width	43mm
Mount Type	PCB
Series	RPS-500
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Protections	Short circuit / Overload / Over voltage / Over temperature
Maximum Output Voltage	24V dc
SMPS Output Current	20.8A
Minimum Input Voltage	80V ac

Key Features

Supports wide AC input voltage range from 80V to 264V.
Efficient operation with up to 93% efficiency.
Operates safely in temperatures from -30°C to 70°C.
Equipped with protections against short circuit, overload, over voltage, and over temperature.
Compact size with dimensions of 130mm length, 43mm width and depth.
Low leakage current below 220μA suitable for medical and industrial applications.
Complies with multiple international safety standards including UL, TUV, CSA and CE.
Designed for both Class I and Class II system designs.

Product Description

MEAN WELL RPS-500-24-C Switching Power Supply is a green, highly reliable medical grade module designed for PCB mounting with a compact footprint of 5 inches by 3 inches.

The unit accepts an AC input voltage range of 80 to 264 volts and delivers a stable 24V DC output at a power rating of 499.2 watts and current of 20.8 amperes, making it ideal for industrial, medical, and laboratory equipment requiring consistent power supply.

Its design offers high efficiency up to 93% and extremely low no-load power consumption below 0.5 watts, which helps reduce operational costs and improves energy savings. Safety protections include short circuit, overload, over voltage, and over temperature protections, ensuring system reliability and user safety.

It supports both Class I systems with functional grounding and Class II standalone designs, with leakage current below 220 microamperes, fitting stringent medical supply requirements.

Dimensions are compact at 130mm length and 43mm width and depth, with a weight of 540 grams, facilitating easy integration into PCB assemblies.

The product conforms to a wide range of global safety standards such as UL 62368-1, TUV BS EN/EN 62368-1, IEC standards, CSA, CCC, BSMI CNS, and AS/NZS 62368.1, making it suitable for international deployment.

MEAN WELL offers a 3-year warranty period backing product longevity and performance. High power density green PCB type medical power supply. Broad input voltage range from 80 to 264 VAC. Output voltages options range between 12V and 48V; this model outputs 24V DC.

Efficiency up to 93%, reducing energy waste. Multiple safety protections to safeguard connected equipment. Compact 5" x 3" footprint size for space-saving installations. Extremely low leakage current.
