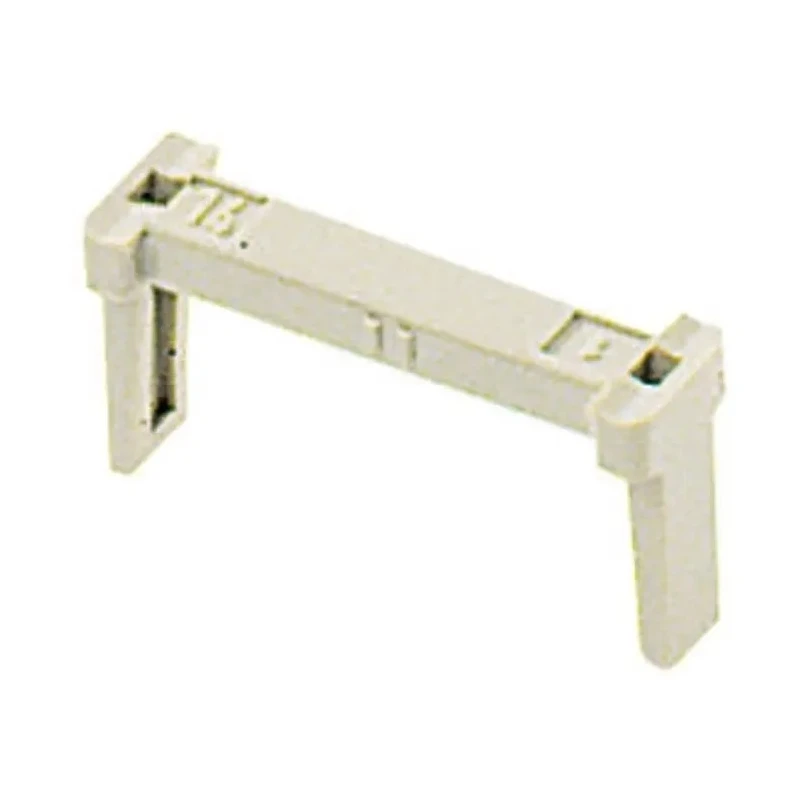

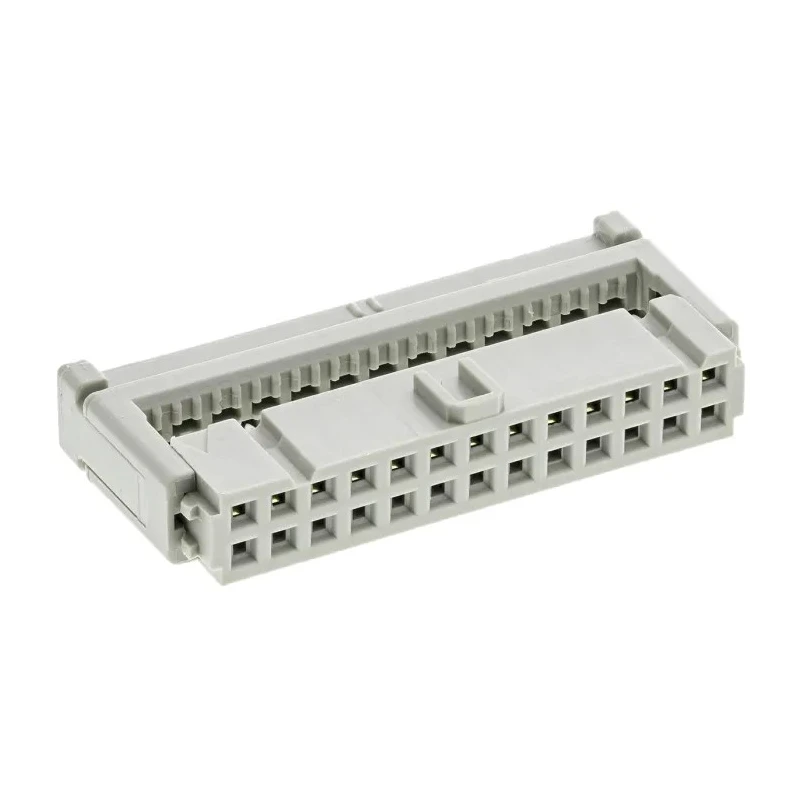

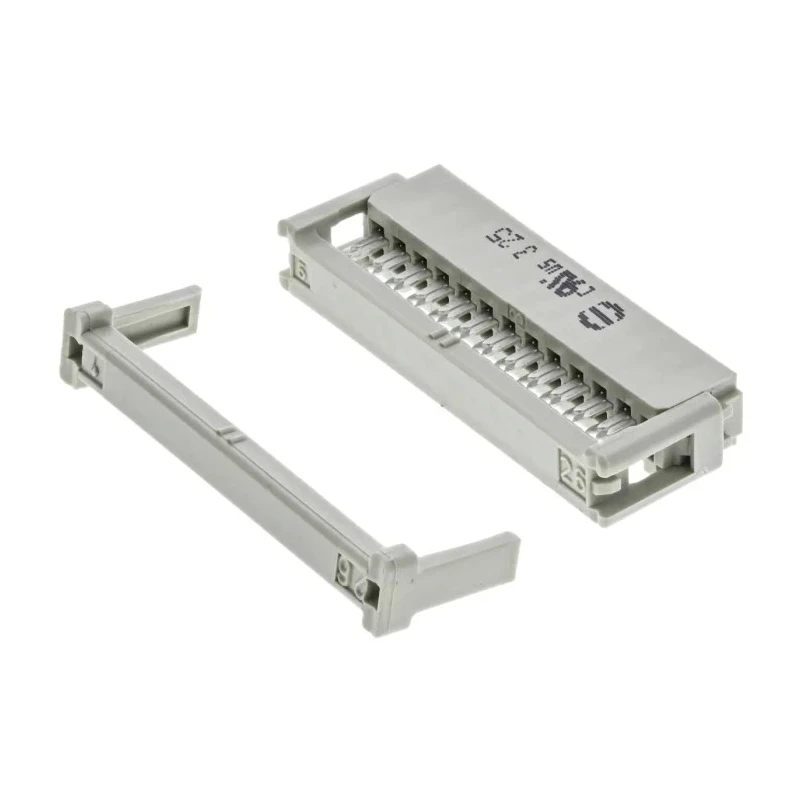

HARTING 26-Way 2 Row Female IDC Connector for Cable 2.54mm Pitch, 320V AC, 2.5A 09185267813
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 320V ac |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2.5A |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Designed with 26 contacts arranged in 2 rows for reliable cable connections.
- Shrouded female connector ensuring secure and robust mating.
- Gold-plated copper alloy contacts provide excellent conductivity and corrosion resistance.
- Mount type is cable with right angle orientation for flexible installation.
- Operates reliably between -55°C to 125°C temperature range.
- Termination by insulation displacement contact (IDC) technology simplifies assembly.
- Housing made from durable polybutylene terephthalate for mechanical strength.
- Compliant with IEC 60 603-13 standards but has no additional approvals listed.
Product Description
HARTING 09185267813 is a 26-way female IDC connector designed for cable mounting featuring a 2-row contact arrangement and 2.54mm pitch spacing. It supports a rated voltage of 320V AC and a maximum current of 2.5A, making it ideal for electronic and industrial applications requiring reliable data and power transmission.
The connector is shrouded and right angle oriented, providing secure and space-efficient cable connections. Its contacts are made from copper alloy with gold plating to enhance conductivity and reduce contact wear. The housing is constructed of polybutylene terephthalate, offering excellent mechanical durability and thermal resistance within the operating temperature range of -55°C to 125°C.
This connector utilizes insulation displacement contact termination allowing quick assembly without soldering. It is part of the SEK 18 series known for central polarization and available in multiple configurations up to 64 contacts. Though it complies with IEC 60 603-13 standards, it carries no specific additional certifications or approvals.
Typical applications include industrial automation, electronic instrumentation, and detailed PCB wiring projects where compact, high-density connectors are essential. Its manufacturing origin is Switzerland, reflecting stringent quality controls.
26 contacts arranged in 2 rows for high-density connections. Shrouded female connector design enhances protection and reliability. Gold-plated copper alloy contacts for excellent electrical performance. Cable mount with right angle orientation for versatile installation.
Wide operating temperature range from -55°C to 125°C ensures durability. Termination with IDC technology for fast and reliable installations. Durable polybutylene terephthalate housing provides mechanical strength. Compliant with IEC 60 603-13 standards for industrial usage.
Part of SEK 18 series with central polarization for correct mating. Manufactured in Switzerland assuring premium quality. Explore more IDC Connectors and electronic components on EnvMart for your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a rated voltage of 320V AC and a maximum current of 2.5A.
It features a 2.54mm pitch with 26 contacts arranged in 2 rows.
The operating temperature range is from -55°C to 125°C.
The housing is made from polybutylene terephthalate, and the contacts are made from gold-plated copper alloy.
It utilizes insulation displacement contact (IDC) technology for termination, allowing for quick assembly without soldering.
This connector has a right angle orientation, which allows for flexible installation options.
Yes, it is compliant with IEC 60 603-13 standards.
It is part of the SEK 18 series, which is known for its central polarization feature.
It is designed for cable mounting.
Typical applications include industrial automation, electronic instrumentation, and PCB wiring projects.
This connector is manufactured in Switzerland, reflecting stringent quality controls.
The connector features female contacts and is classified as a female connector.
