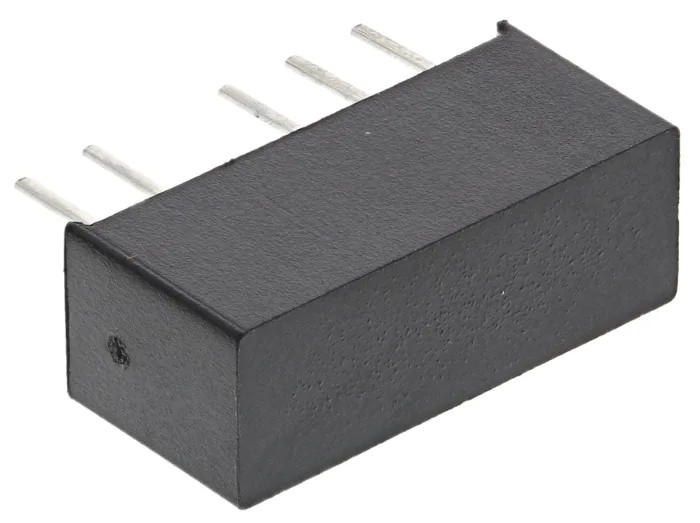

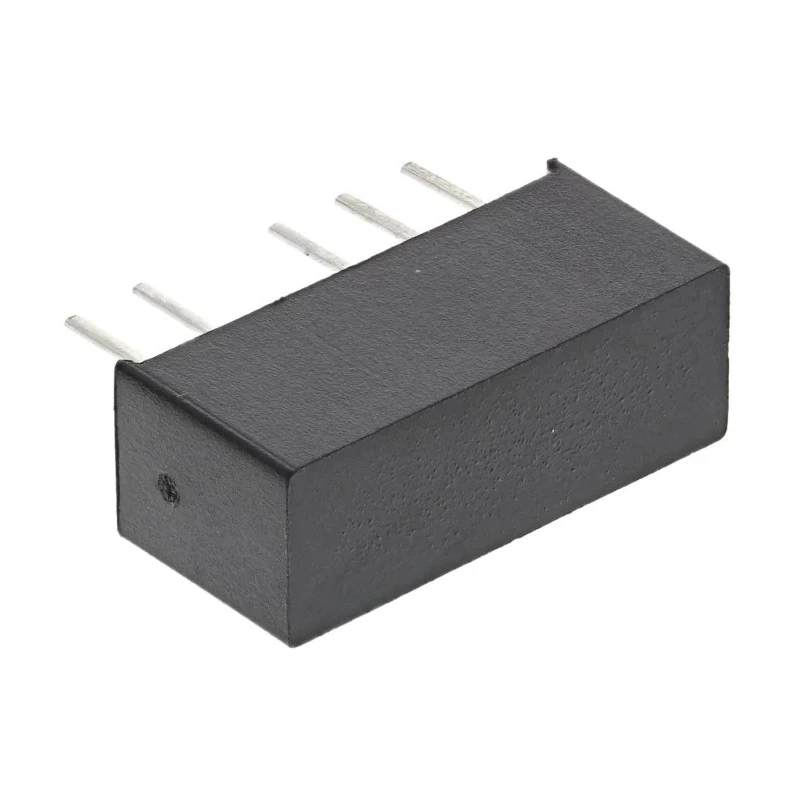

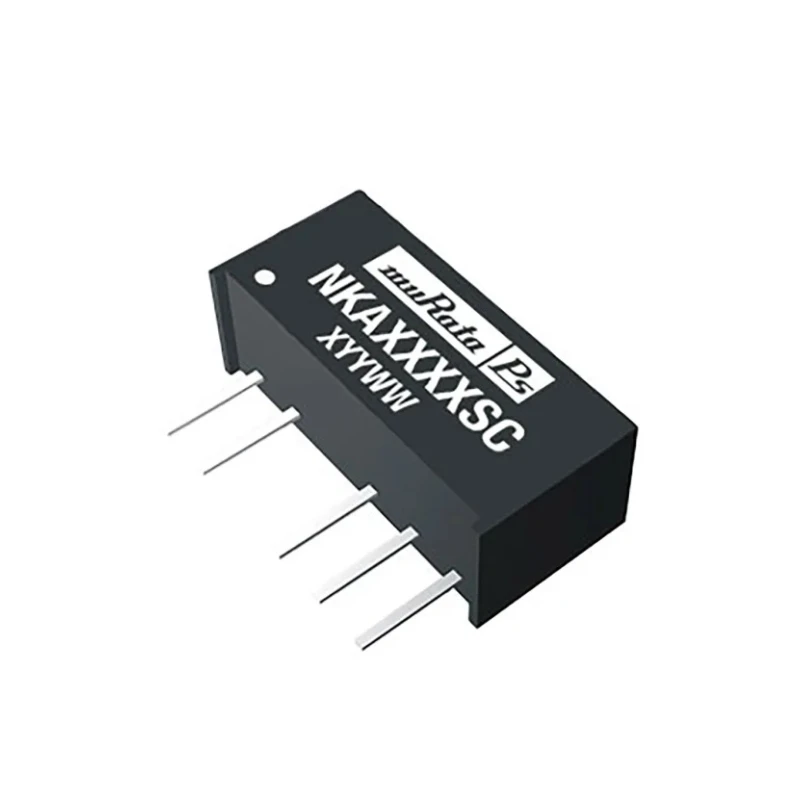

Murata Power Solutions NKA SIP Dual Output Unregulated Isolated DC/DC Converter 5V dc 100mA 3W Through Hole NKA0505SC
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NKA DC/DC Converter, 5V dc/ |
| Brand | Murata Power Solutions |
| Efficiency | 70% |
| Length | 16.5mm |
| Model | NKA0505SC |
| Depth | 7.55mm |
| Gross Weight | 1.4g |
| Width | 5.4mm |
| Mount Type | Through Hole |
| Series | NKA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1697000h |
| Number of outputs | 2 |
| Ripple and Noise | 75mV Pk-Pk |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 100mA |
| Output Voltage Adjustment Range | 2.97/3.63 V |
| Isolation Voltage | 3kV dc |
| Output Voltage 2 | -5V dc |
Key Features
- This SIP dual output converter features unregulated, isolated outputs suitable for various electronic applications.
- It operates with input voltage ranging from 4.5V to 5.5V dc to deliver efficient power conversion.
- High isolation voltage of 3kV dc ensures protection in demanding environments.
- The device supports operating temperatures from -40°C to 85°C, suitable for industrial and commercial use.
- The compact SIP package measures 16.5mm length, 5.4mm width, and 7.55mm depth, enabling space-saving PCB designs.
- Featuring a low ripple and noise of 75mV peak-to-peak enhances signal integrity for sensitive circuits.
- MTBF exceeds 1.6 million hours, highlighting its high reliability and long-term performance.
- Its RoHS compliant and fully encapsulated design ensures environmental safety and durability.
Product Description
Murata Power Solutions NKA0505SC is a SIP Dual Output Unregulated Isolated DC/DC Converter that delivers ±5V dc output voltage with 100mA output current and 3W maximum power. It is designed for through hole mounting and is highly efficient with 70% typical efficiency.
This converter operates over an input voltage range of 4.5V to 5.5V dc, providing stable dual output voltage suitable for powering isolated circuits requiring unregulated DC outputs.
The product features a compact SIP package with dimensions 16.5mm length, 5.4mm width, and 7.55mm depth, allowing for high-density PCB assembly. Rated for an isolation voltage of 3kV dc, it ensures electrical isolation between input and output for enhanced system safety and noise immunity.
With a ripple and noise specification of 75mV peak-to-peak, the device supports the integrity of sensitive analog and digital signals. It operates reliably across wide temperature ranges from -40°C to +85°C, making it suitable for harsh industrial environments. The mean time between failures (MTBF) of approximately 1.7 million hours ensures long operational life and durability.
Constructed with a fully encapsulated UL 94V-0 rated package, it complies with RoHS environmental standards, confirming it is lead-free and environmentally friendly.
This DC/DC Converter is ideal for use in industrial equipment, telecommunications, instrumentation systems, laboratory power supplies, and other electronics applications requiring isolated dual output DC voltages.
This product provides isolated dual ±5V DC outputs at 100mA each. Supports input voltages from 4.5V to 5.5V DC for flexible integration. Compact SIP through hole package enables easy mounting on standard PCBs. Fully encapsulated housing protects internal components and offers UL 94V-0 fire safety rating.
High isolation voltage of 3kV DC enhances safety in industrial applications. Low ripple and noise of 75mV peak-to-peak ensures stable power output. Reliable operation from -40°C to 85°C suits diverse environmental conditions.
MTBF of over 1.6 million hours attests to ruggedness and long life. RoHS compliant and environmentally responsible manufacturing standards. Explore more power supply solutions and electronic components at EnvMart for your industrial and laboratory instrumentation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of ±5V dc, with each output capable of delivering 100mA current.
It operates within an input voltage range of 4.5V to 5.5V dc.
The maximum output power of this unit is 3W.
The SIP package measures 16.5mm in length, 5.4mm in width, and 7.55mm in depth.
It features a high isolation voltage of 3kV dc, ensuring electrical isolation between input and output.
This model has a typical efficiency of 70%.
It operates reliably within a temperature range of -40°C to +85°C.
The ripple and noise is specified at 75mV peak-to-peak, which helps maintain signal integrity.
The NKA0505SC has two outputs, providing dual output voltage.
It supports through hole mounting, suitable for standard PCB assembly.
This product is RoHS compliant, ensuring it meets environmental safety standards.
The MTBF for this unit exceeds 1.6 million hours, indicating high reliability.
