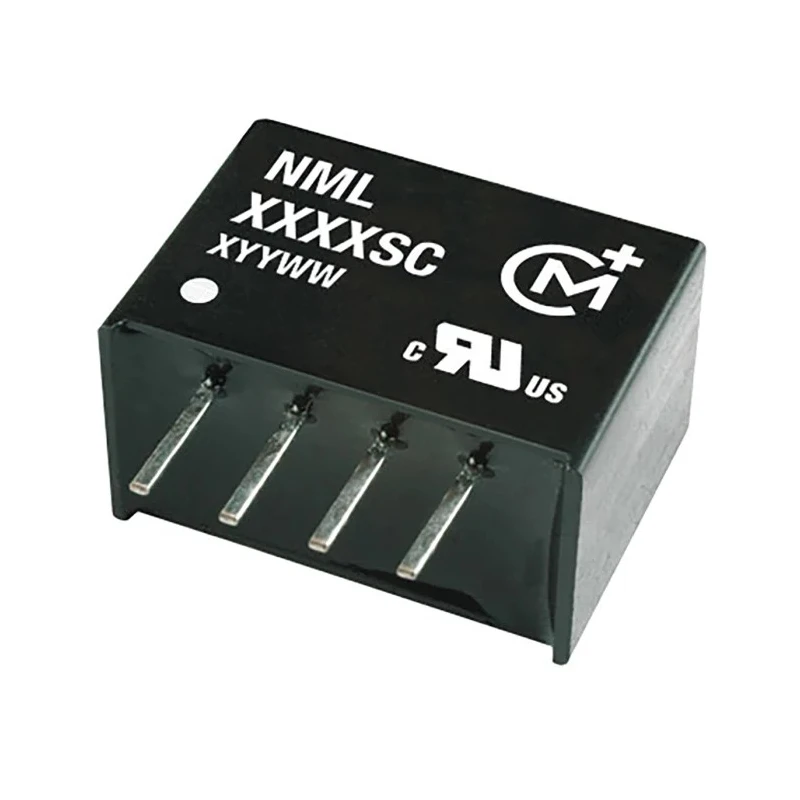

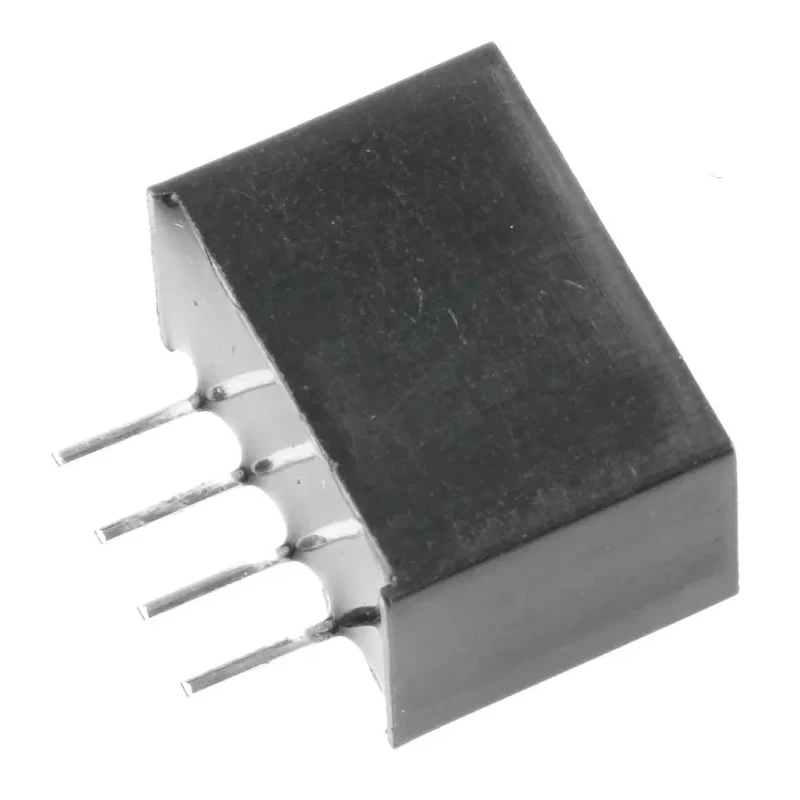

Murata Power Solutions NML Series 2W SIP Single Output Unregulated Isolated DC-DC Converter Through Hole 5V Output NML0505SC
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NML DC/DC Converter, 5V dc/ |
| Brand | Murata Power Solutions |
| Efficiency | 78% |
| Length | 14mm |
| Model | NML0505SC |
| Depth | 10mm |
| Gross Weight | 2g |
| Width | 14mm |
| Mount Type | Through Hole |
| Series | NML |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2327000h |
| Number of outputs | 1 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 4 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 400mA |
| Isolation Voltage | 1kV dc |
Key Features
- Provides isolated SIP4 package design for industrial use.
- Maximum output power rating of 2W ensuring reliable performance.
- Supports wide input voltage range from 4.5V to 5.5V DC.
- Fully encapsulated UL 94V-0 rated package material ensures safety and durability.
- Features 1kV DC isolation voltage for electrical safety.
- Operates efficiently with 78% efficiency rating.
- Ripple and noise maintained at a low 200mV Pk-Pk.
- Compact dimensions of 14mm length, 14mm width, and 10mm depth for easy PCB integration.
Product Description
Murata Power Solutions NML0505SC is a 2W SIP single output unregulated isolated DC-DC converter designed for industrial and electronic applications requiring stable DC conversion. This through hole mounted device offers isolated SIP4 package design with 1kV DC isolation voltage, ensuring safety in power-sensitive environments.
It delivers a regulated 5V DC output at 400mA with a maximum input voltage of 5.5V DC and a minimum input of 4.5V, making it suitable for a variety of power supply requirements where small form factor and reliable isolation are critical.
The converter is fully encapsulated with UL 94V-0 package material enhancing thermal and electrical safety. It operates efficiently with 78% efficiency and maintains a low ripple and noise level of 200mV Pk-Pk, critical for sensitive electronic circuits.
With compact dimensions measuring 14mm length, 14mm width, and 10mm depth, it fits easily on PCBs designed for embedded power solutions. It has a high MTBF of 2,327,000 hours, ensuring long operational life in demanding industrial environments.
The temperature rating from -40°C to 85°C allows use in harsh conditions such as industrial manufacturing, automation controls, instrumentation, and telecommunications equipment. Provides isolated SIP4 package design for industrial use.
Maximum output power rating of 2W ensuring reliable performance. Supports wide input voltage range from 4.5V to 5.5V DC. Fully encapsulated UL 94V-0 rated package material ensures safety and durability. Features 1kV DC isolation voltage for electrical safety.
Operates efficiently with 78% efficiency rating. Ripple and noise maintained at a low 200mV Pk-Pk. Compact dimensions of 14mm length, 14mm width, and 10mm depth for easy PCB integration. Rated MTBF of 2,327,000 hours for long operational life.
Temperature operating range from -40°C to 85°C suitable for varied industrial environments.
This DC-DC converter is ideal for use in industrial electronics, telecommunications, automotive electronics, and instrumentation applications where space-saving, efficiency, and isolation are required.
Explore related Murata Power Solutions products and other DC/DC Converters available on EnvMart for your power supply needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power rating of this model is 2W.
It supports a wide input voltage range from 4.5V to 5.5V DC.
This model operates efficiently with a rating of 78%.
It features an isolation voltage of 1kV DC, ensuring electrical safety.
The dimensions are 14mm in length, 14mm in width, and 10mm in depth.
The ripple and noise are maintained at a low level of 200mV Pk-Pk.
It operates within a temperature range from -40°C to 85°C.
This model has a single output.
It utilizes a through hole mounting type.
The mean time between failures (MTBF) is rated at 2,327,000 hours.
This model complies with RoHS standards.
It is suitable for industrial electronics, telecommunications, automotive electronics, and instrumentation applications.
