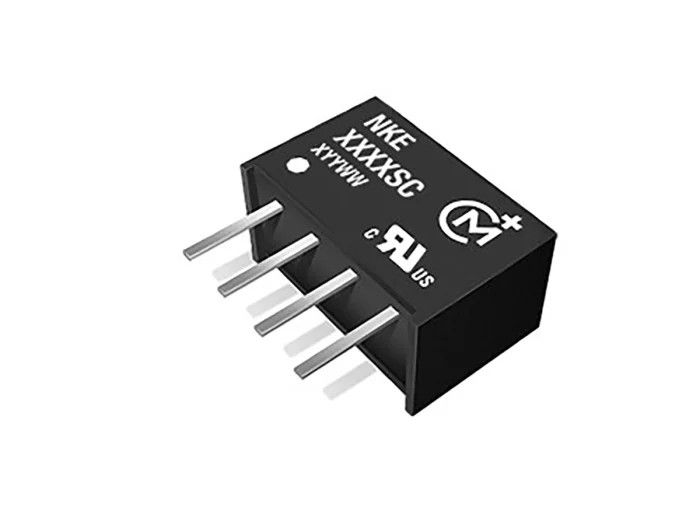

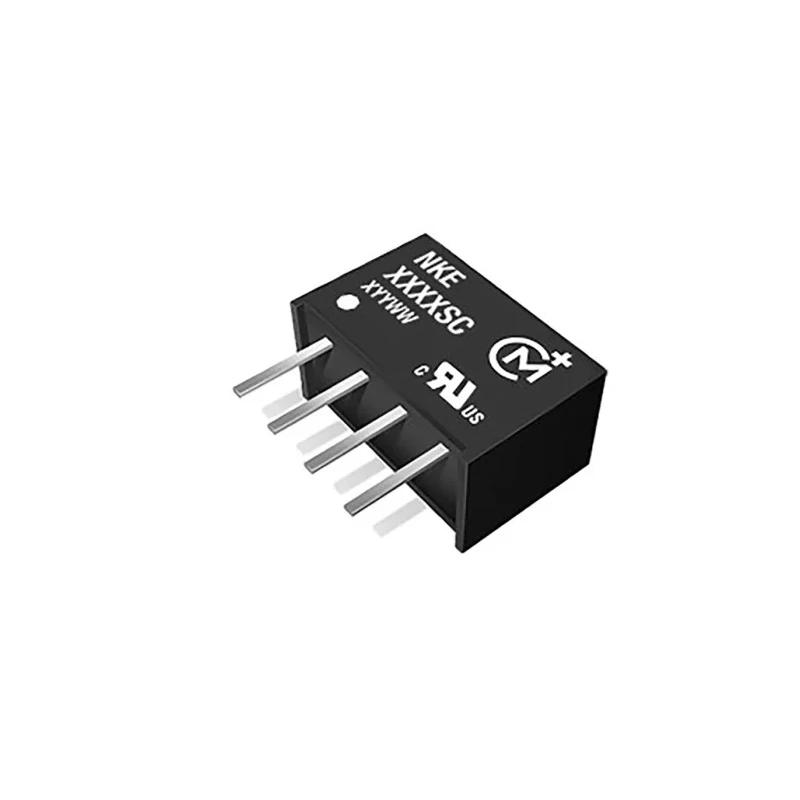

Murata Power Solutions NKE DC/DC Converter, 5V DC Output, 4.5 - 5.5V DC Input, 1W Through Hole SIP Package NKE0505SC

Murata Power Solutions NKE0505SC is a single output DC/DC converter designed to deliver a regulated 5V DC output voltage from inputs ranging between 4.5V and 5.5V DC. This high reliability converter supports a maximum output power of 1 watt with a through hole SIP package type, making it suitable for compact and efficient electronic power supply applications.

The converter features 3kV DC isolation ensuring safety and noise immunity in electronic circuits. Operating temperature ranges from -40°C to 85°C allow the product to perform reliably under varied environmental conditions. It is housed in a fully encapsulated UL 94V-0 compliant case providing ruggedness and flame retardancy.

With an efficiency rating of 69% and ripple and noise limited to 100mV peak-to-peak, the NKE0505SC supports sensitive electronic loads requiring stable power. The device includes 6 pins for mounting and connectivity and measures 11.48mm in length, 7.46mm in width, and 7.46mm in depth, with a total weight of only 1.09 grams, ideal for space constrained applications.

This module is rated for an MTBF of over 4 million hours demonstrating exceptional reliability for industrial, laboratory, HVAC, and telecommunications equipment power needs. Being RoHS compliant, it meets environmental and safety standards.

The Murata NKE series DC/DC converters are popular in industrial and electronic components sectors for efficient voltage conversion and isolation. This product is especially applicable for embedded system power supply, instrumentation, and control electronics where compact size and high performance are required.

Single output isolated DC/DC converter with 3kV DC isolation. Maximum operating temperature of 85°C and minimum of -40°C. Compact SIP package with 6 pins and dimensions 11.48mm x 7.46mm x 7.46mm. Efficiency of 69% with ripple and noise of 100mV peak-to-peak.

Mean time between failures (MTBF) is 4,277,000 hours ensuring long reliability. Fully encapsulated UL 94V-0 compliant package for safety and durability. Weight is approximately 1.09 grams suitable for compact electronic assemblies.

RoHS compliant and made in China.

This DC/DC converter is highly suitable for applications including industrial automation, laboratory instrumentation, telecommunications equipment, embedded systems, and general electronic components power supply. Browse more DC/DC Converters and power supplies to find compatible power modules for your projects at EnvMart.
