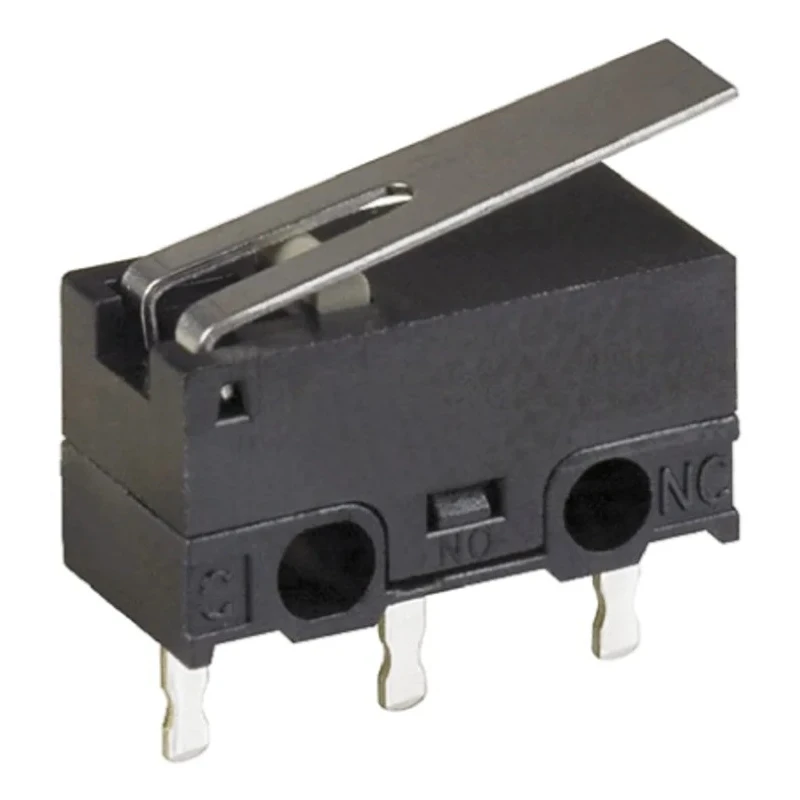

Omron Ultra Subminiature Hinge Lever Micro Switch with PCB Terminal, SPDT, 100mA, 30V dc, IP40 D2F-01L-T

Omron D2F-01L-T is an ultra subminiature micro switch featuring a hinge lever actuator and PCB terminals, designed for precision switching tasks in low current applications. It supports a contact current of 100mA at 30V dc with a Single Pole Double Throw (SPDT) contact configuration, making it ideal for home appliances, audio equipment, and communications devices.

This micro switch is built to provide reliable snap action switching with low actuation force of 0.78N, ensuring sensitive and accurate operation. The compact size with a length of 12.8 mm makes it suitable for integration in space-constrained electronic assemblies. It offers an electrical contact rating of 3A at 125 Vac with silver contacts and 0.1A at 30V dc with gold contacts, supporting a wide range of switching requirements.

Designed to operate within temperatures from -25°C to 65°C, this switch can function reliably in various ambient conditions. The device features an IP40 ingress protection rating, protecting it against solid particles larger than 1mm, suitable for indoor and controlled environments.

The D2F-01L-T model has a robust mechanical lifespan rated for 1,000,000 operations, ensuring durability and longevity in industrial and commercial applications. It complies with RoHS environmental standards and holds certifications from UL and CSA, underscoring its safety and quality standards.

Manufactured in Japan, it embodies precision engineering and quality manufacturing. This switch is widely used in electrical automation and control systems, providing dependable switching in industrial, laboratory, HVAC, manufacturing, and consumer electronics applications.

Features a hinge lever actuator for reliable operation. Compact ultra subminiature form factor with a length of 12.8 mm. SPDT contact configuration with snap action for fast response. Suitable for home appliances, audio, and communication equipment.

Supports electrical ratings of 3A at 125 Vac and 0.1A at 30V dc with gold contacts. Operating force is low at 0.78N for sensitive actuation. Durable mechanical life rated at 1,000,000 operations. Operating temperature range from -25°C to 65°C to suit various environments.

Complies with RoHS standards and has UL & CSA approvals. Manufactured in Japan ensuring high quality standards. Explore more Micro Switches and precision electrical components at EnvMart for your automation and electronic design needs.
