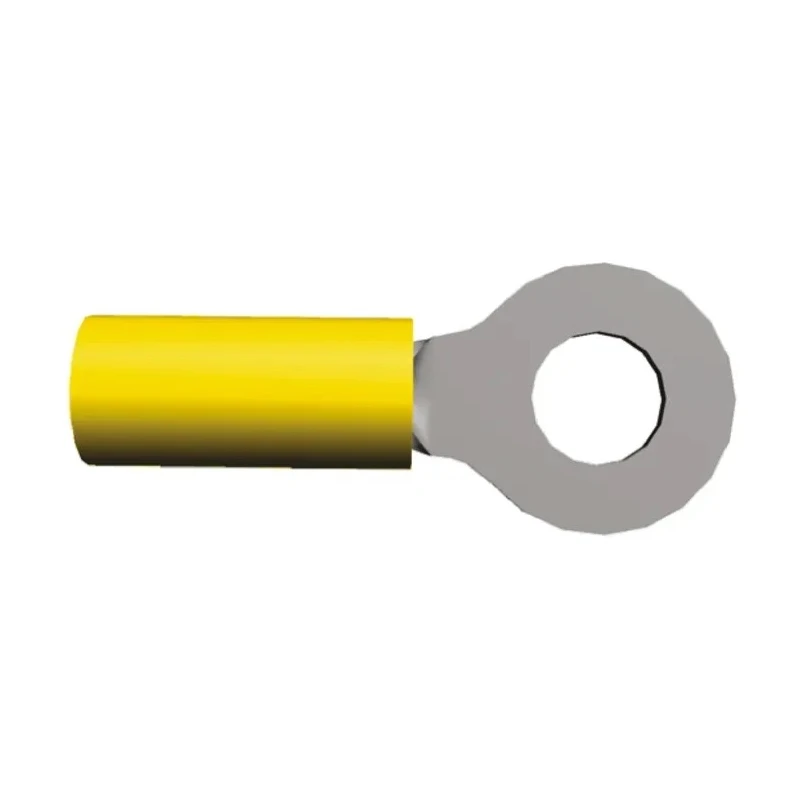

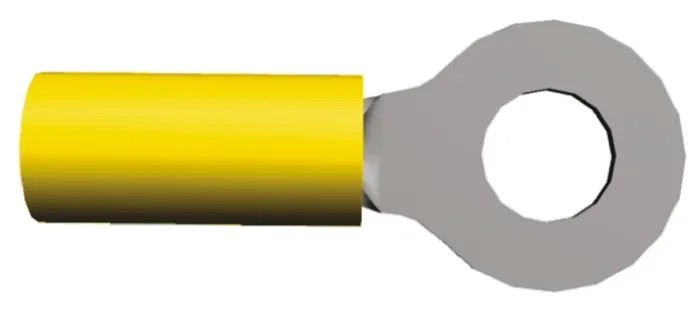

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 12 AWG 10 AWG Wire Size Yellow 165028
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.79mm |
| Model | 165028 |
| Insulation | Insulated |
| Overall Length | 29.9mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Stud Size | M6 |
Key Features
- Constructed with high conductivity copper body for excellent electrical performance.
- Insulated with a yellow nylon sleeve for wire size identification and insulation support.
- Features a precision-formed ring tongue for reliable connections in electrical circuits.
- Includes serrations inside the barrel to enhance contact and tensile strength after crimping.
- Designed funnelled wire entry allows fast and secure wire insertion.
- Compatible with various wiring applications including instruments, power supplies, and transportation.
- Meets RoHS compliance for environmental safety.
- Maximum operating temperature up to 105°C for durability in harsh environments.
Product Description
TE Connectivity 165028 PIDG Insulated Ring Terminal is engineered for reliable and durable electrical connections in demanding environments. This ring terminal is designed with a high conductivity copper body and tin plating to ensure optimal electrical performance and corrosion resistance.
The product features an insulated yellow nylon sleeve that provides easy wire size identification and electrical insulation. The copper sleeve surrounding the wire barrel supports insulation and prevents wire fraying, enhanced by serrations within the barrel that assure maximum contact and tensile strength after crimping.
With an overall length of 29.9 mm and a stud size of M6, this ring terminal supports wire sizes from 12 AWG (2.6 mm²) to 10 AWG (6.6 mm²), making it versatile for multiple wiring applications. The funnelled wire entry design facilitates fast wire insertion during production, improving efficiency.
This terminal complies with RoHS standards and is suitable for use in industries including instrumentation, control systems, power supplies, panel box wiring, transportation equipment, lifting machinery, motor connections, aerospace hardware, and household appliances.
High conductivity copper body for optimal electrical performance. Copper sleeve supports wire insulation and prevents fraying. Serrated barrel ensures secure crimp connections. Yellow nylon insulated sleeve for wire size and tooling identification.
Funnelled wire entry allows easy wire insertion. RoHS compliance ensures environmental safety. Suitable for diverse industrial electrical applications.
TE Connectivity offers reliable PIDG ring terminals engineered for consistent performance and long service life in industrial and commercial electrical systems. Explore more TE Connectivity products and solutions at EnvMart for dependable component sourcing.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this ring terminal is 105°C.
This terminal supports wire sizes from 12 AWG (2.6 mm²) to 10 AWG (6.6 mm²).
The stud size for this model is M6.
It is constructed with a high conductivity copper body and features tin plating for corrosion resistance.
Yes, it complies with RoHS standards for environmental safety.
The overall length of this terminal is 29.9 mm.
The terminal includes serrations inside the barrel that enhance contact and tensile strength after crimping.
The funnelled wire entry design allows for fast and secure wire insertion, improving installation efficiency.
The insulation on this terminal is yellow, which aids in wire size identification.
This terminal is suitable for various applications including instrumentation, power supplies, and transportation equipment.
The thickness of this terminal is 0.79 mm.
This terminal is manufactured in India.
