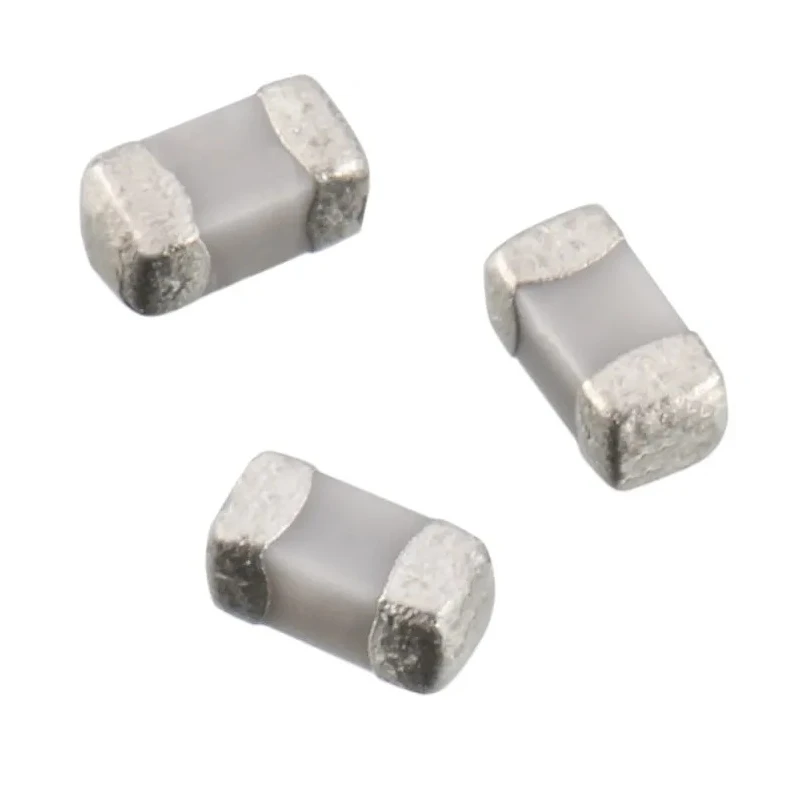

Wurth Elektronik 2.7 pF Multilayer Ceramic Capacitor 25V DC Surface Mount NP0 (Class I) 0603 Package 885392004006

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 2.7 pF Multilayer Ceramic Capacitor 25V DC Surface Mount NP0 (Class I) 0603 Package 885392004006

Name: Wurth Elektronik 2.7 pF Multilayer Ceramic Capacitor 25V DC Surface Mount NP0 (Class I) 0603 Package 885392004006
Brand: Wurth Elektronik
SKU: 101283
Price: 0.05 USD
Availability: InStock



Category Multilayer Ceramic Capacitor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Voltage	25V dc
Capacitance Range	0.2 pF ‒ 33 pF
Brand	Wurth Elektronik
Operating Temperature	-55 °C up to + 125 °C
Height	0.3mm
Length	0.6mm
Width	0.3mm
Mounting Style	SMT-Chip
Mount Type	Surface
Series	WCAP-CSRF
Temperature Coefficient	±30 ppm/°C
Termination	Cu/Ni/Sn
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	0.1 pF
Capacitance	2.7pF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0603
Dielectric	C0G
Suppression Class	Class I
Recommended soldering	Reflow soldering
Voltage range (UR)	25 ‒ 50 V(DC)
Sizes	0201 / 0402
Ceramic	NP0 (Class I)

Key Features

Capacitance tolerance of 0.1 pF ensures precision in electronic circuits.
Compact 0603 surface mount package for SMT assembly.
Dielectric material is C0G (NP0), offering stable performance with low temperature coefficient.
Operates reliably between -55°C and 125°C operating temperature range.
Suitable for high frequency applications and antenna matching circuits.
Termination type uses Cu/Ni/Sn for robust solder joints.
Recommended for reflow soldering processes in manufacturing.
Complies with RoHS standards for environmental safety.

Product Description

Wurth Elektronik 885392004006 is a high precision multilayer ceramic capacitor designed for surface mounting (SMT) with a nominal capacitance of 2.7 pF and rated voltage of 25V DC. Utilizing C0G (also known as NP0) dielectric, this Class I capacitor offers very low temperature coefficient (±30 ppm/°C) and excellent stability across a wide operating temperature range from -55 °C to +125 °C.

This compact component is housed in a 0603 package (0.6 mm length, 0.3 mm width, 0.3 mm height) making it ideal for high density circuit board layouts. Its construction with Cu/Ni/Sn termination type ensures reliable solder connections compatible with recommended reflow soldering techniques.

Designed primarily for high frequency applications such as antenna matching and precise signal filtering, this capacitor belongs to Wurth Elektronik’s WCAP-CSRF series and complies with Restriction of Hazardous Substances (RoHS) directives.

Capacitance tolerance is tightly controlled at 0.1 pF for accurate circuit behavior. The capacitor supports a voltage range from 25 to 50 V DC, providing flexibility within circuit design limits. Its small dimensions facilitate integration into modern SMT assembly processes.

Temperature performance and stability are optimized for industrial and communication electronics. Manufactured in Taiwan, Province Of China, ensuring adherence to quality standards.

This component is highly suitable for use in industrial electronics, communication devices, automotive electronics that do not require automotive standards, and precision instrumentation. Its stable electrical characteristics make it valuable in laboratory and manufacturing settings where reliable component performance under varying temperature conditions is critical.

Explore further choices and technical information for Multilayer Ceramic Capacitors in the Electronics Components category at EnvMart for comprehensive industrial applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a nominal capacitance of 2.7 pF with a tolerance of 0.1 pF, ensuring precision in electronic circuits.

It operates reliably within a temperature range of -55 °C to +125 °C.

The dielectric material is C0G (also known as NP0), which offers stable performance with a low temperature coefficient of ±30 ppm/°C.

This capacitor is housed in a compact 0603 package, measuring 0.6 mm in length, 0.3 mm in width, and 0.3 mm in height.

It features a Cu/Ni/Sn termination type, which ensures robust solder joints and is compatible with reflow soldering processes.

This model has a rated voltage of 25V DC and supports a voltage range from 25 to 50V DC.

It is designed for high frequency applications such as antenna matching and precise signal filtering, making it suitable for industrial electronics and communication devices.

The recommended soldering technique for this component is reflow soldering, ensuring compatibility with modern manufacturing processes.

Yes, it complies with RoHS standards for environmental safety, ensuring it meets restrictions on hazardous substances.

The maximum operating temperature for this capacitor is 125°C.

This component is manufactured in Taiwan, Province Of China, ensuring adherence to quality standards.

The capacitance range for this series extends from 0.2 pF to 33 pF, providing flexibility for various circuit designs.
