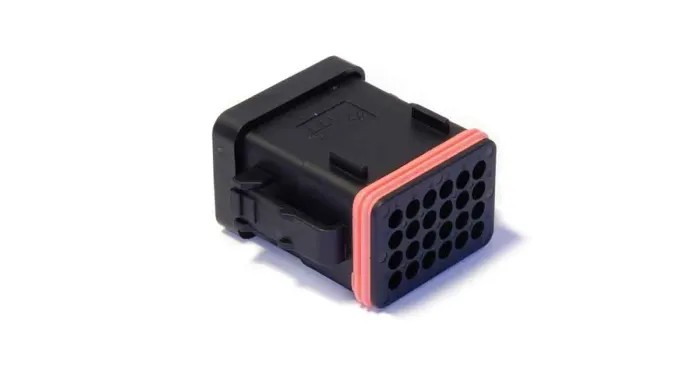

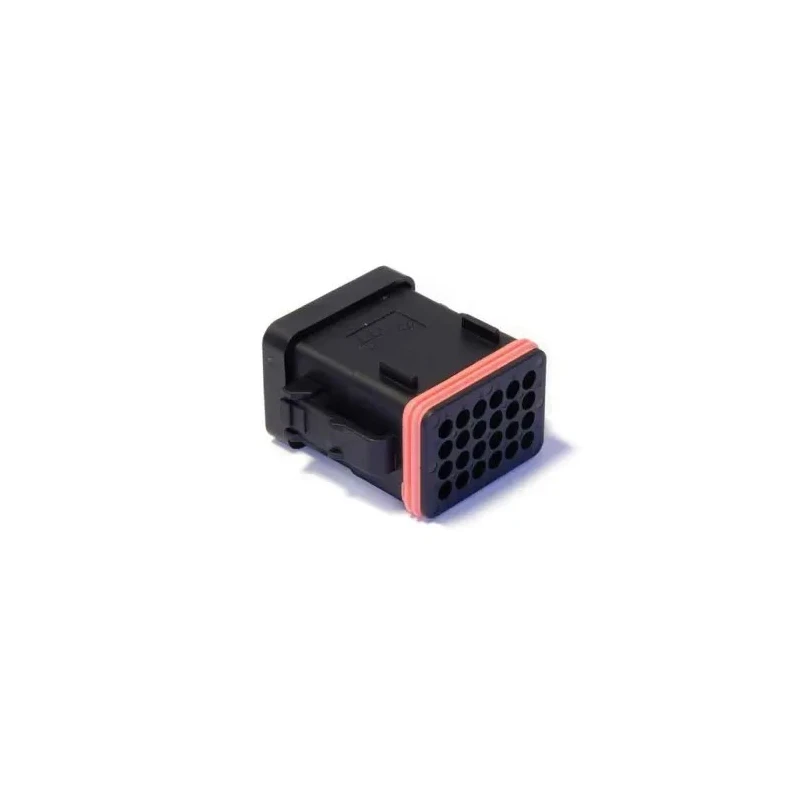

ITT Cannon Automotive Connector Male Black Cable 24 Way Crimp Termination 16A 105°C CTC 24 WAY PLUG BLACK / 132015-0075
Specifications
| Country of Origin | China |
|---|---|
| Brand | ITT Cannon |
| Colour | Black |
| Current | 16A |
| Height | 23mm |
| Model | CTC 24 WAY PLUG BLACK / 132015-0075 |
| Depth | 37mm |
| IP Rating | IP69K |
| Width | 38mm |
| Gender | Male |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Series | 132015 |
| Durability | 200 cycles (T2P) and up to 500 cycles (T3P) |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Sub Type | Cable-to-Cable Interconnector |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 4 |
| Standards/Approvals | RoHS |
| Number of Contacts | 24 |
Key Features
- The connector features 24 contacts arranged in 4 rows for robust cable-to-cable interconnection.
- Termination type is crimp ensuring secure and reliable contact connection.
- Durability supports 200 cycles (T2P) and up to 500 cycles (T3P) ensuring long service life.
- IP69K rating provides high ingress protection against dust and water jets for harsh environments.
- The housing is made of thermoplastic material for mechanical strength and resistance.
- The connector carries a maximum operating voltage of up to 250 V AC.
- Suitable for automotive, industrial, and electronic equipment requiring reliable power and signal connections.
Product Description
ITT Cannon CTC 24 WAY PLUG BLACK / 132015-0075 automotive connector male black cable 24 way crimp termination offers dependable cable-to-cable interconnection with robust electrical and mechanical characteristics. With 24 contacts arranged in 4 rows, this connector supports a current rating of 16A and an operating voltage up to 250 V AC, suitable for demanding automotive and industrial applications.
The termination is crimp type, ensuring reliable contact retention with a single contact retention force above 67N and insertion force below 50N, enabling easy assembly and secure connections. Its thermoplastic housing provides excellent mechanical protection and resistance to environmental factors. The product has a compact form factor, measuring 38mm in width, 23mm in height, and 37mm in depth, facilitating integration in constrained spaces.
Rated for operating temperatures from -55°C up to 105°C, this connector is engineered for harsh operating conditions. The IP69K ingress protection rating confirms its suitability for environments exposed to water jets and dust, making it ideal for automotive electrical systems and equipment exposed to extreme conditions.
The connector’s durability supports 200 mating cycles for T2P connectors and up to 500 cycles for T3P connectors, ensuring long-term reliability in high-use scenarios. It is RoHS compliant and manufactured in China.
This male black cable connector is part of the ITT Cannon 132015 series, recognized for quality and performance in automotive electrical connectors. The connector supports 24 contacts in 4 rows with reliable crimp termination.
Thermoplastic housing material offers mechanical robustness and environmental resistance. Operating temperature range from -55°C to 105°C for extreme condition usage. IP69K rating ensures protection against dust and high-pressure water jets.
Durability rating of 200 to 500 cycles depending on connector type enhances service life. Compact dimensions facilitate easy installation in automotive and industrial systems. Explore the full range of ITT Cannon Automotive Connectors and related components at EnvMart for your electronic and power connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a current rating of 16A, making it suitable for various automotive and industrial applications.
It can handle a maximum operating voltage of up to 250 V AC, providing reliable power connections.
The connector has an IP69K rating, ensuring high ingress protection against dust and water jets, suitable for harsh environments.
The connector measures 38mm in width, 23mm in height, and 37mm in depth, allowing for easy installation in constrained spaces.
It features a crimp termination type, which ensures secure and reliable contact connections.
This model has 24 contacts arranged in 4 rows, facilitating robust cable-to-cable interconnection.
The operating temperature range is from -55°C to 105°C, making it suitable for extreme conditions.
It supports 200 mating cycles for T2P connectors and up to 500 cycles for T3P connectors, ensuring long-term reliability.
The housing is made of thermoplastic material, providing mechanical strength and resistance to environmental factors.
Yes, this connector is RoHS compliant, adhering to standards for hazardous substances.
It is suitable for automotive, industrial, and electronic equipment that requires reliable power and signal connections.
The connector is manufactured in China, ensuring adherence to specified standards and quality.
