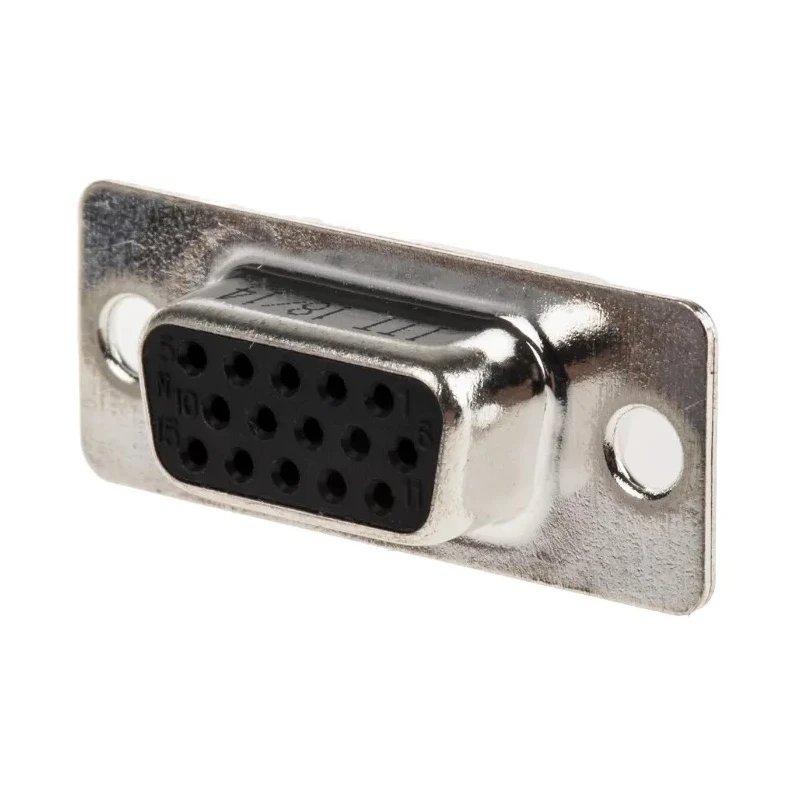

ITT Cannon Panel Mount D-Sub Connector Female 15 Way Straight 2.29 mm Pitch Steel Housing Solder Termination ZDEA-15S

ITT Cannon ZDEA-15S is a high-density, 15-way female D-Sub Connector designed for panel mount applications. It features a straight orientation and a 2.29 mm contact pitch, making it suitable for compact electronic assemblies. The connector housing is made of steel, providing mechanical strength and shielding, while the contacts are phosphor bronze plated with gold over nickel to ensure excellent electrical conductivity and corrosion resistance.

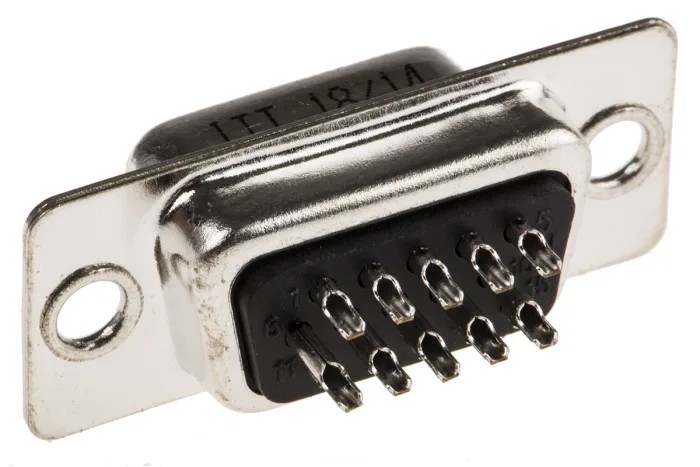

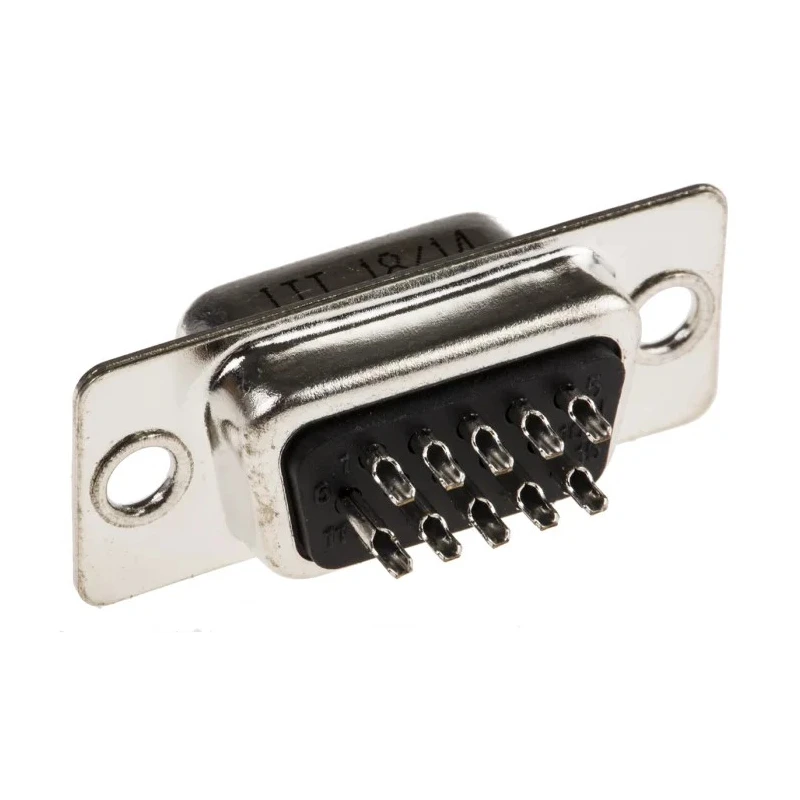

This connector is terminated by solder cups, facilitating secure wire connections. The mounting hardware includes a plastic bracket with #4-40 screws, allowing easy and reliable panel attachment. It operates reliably in a temperature range from -55°C up to 105°C, making it suitable for industrial, communication, and information system applications requiring durability under harsh conditions.

The ZDUA series connectors by ITT Cannon comply with industry standard D-subminiature sizes, ensuring compatibility with existing components. The compact design and high contact density make this connector ideal for space-constrained electronic equipment.

The steel shell and gold-plated contacts provide excellent protection against environmental factors and maintain signal integrity, critical for high-performance communication equipment.

This connector features 15 contacts with a pitch of 2.29 mm for high-density connections. Constructed with a durable steel housing and phosphor bronze contacts plated with gold over nickel for reliable conductivity. Designed for panel mounting with a plastic bracket and #4-40 screws for secure installation.

Termination type is solder cup suitable for strong and durable electrical connections. Operating temperature range from -55°C to 105°C, suitable for demanding environments. Connector orientation is straight with a female connector gender.

Current rating of 2 A ensures efficient power handling in electronic systems. Contact material and plating provide corrosion resistance and long-term reliability. Designed in the ZDUA series for compatibility with industry standard D-subminiature connectors.

Ideal for communication and information system applications requiring high-density signal connections.

This product is suited for use in industrial electronics, communication systems, instrumentation, and control panels where reliable and compact signal connections are essential. Panel mounting ensures stable and secure mechanical installation within enclosures and equipment racks.
