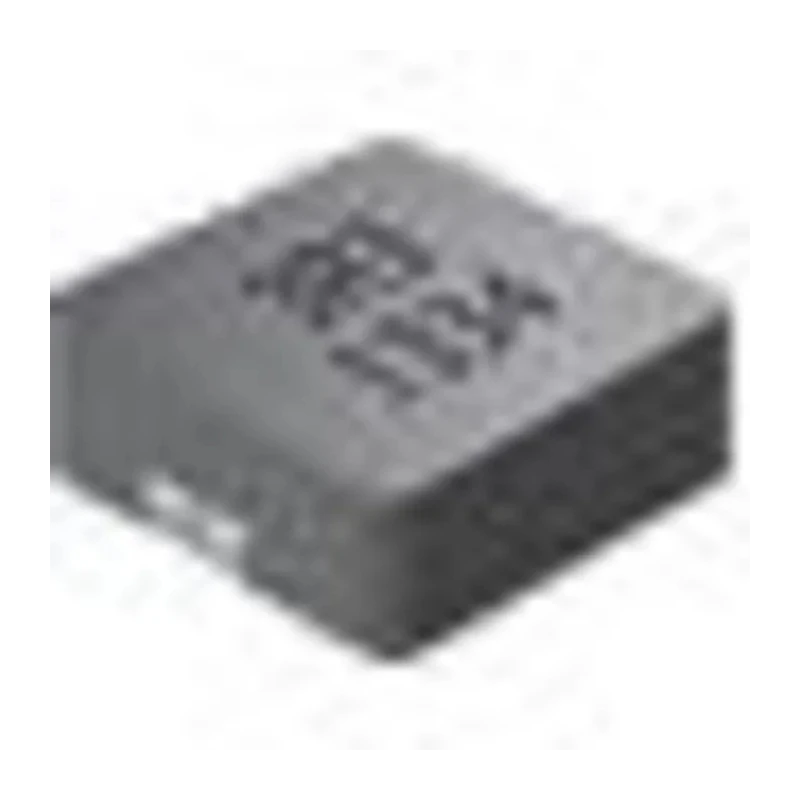

Bourns 1265 Shielded Wirewound Surface Mount Inductor 22 μH ±20 % 9 A Idc AEC-Q200 SRP1265A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 6.2mm |
| Length | 13.5mm |
| Model | SRP1265A |
| Depth | 12.5mm |
| Packaging | Tape & Reel |
| Series | SRP1265A |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Carbonyl Powder |
| Inductance Range | 0.15 to 47 μH |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 1265 |
| Maximum DC Current | 9A |
| Maximum DC Resistance | 37Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 6MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Shielded |
| Automotive Standard | AEC-Q200 |
Key Features
- Features shielded construction for EMI reduction.
- Carbonyl powder core enables high saturation current.
- Inductance value of 22 microhenries with ±20% tolerance.
- Maximum DC current rating of 9 amperes.
- Compliant with AEC-Q200 automotive standard.
- RoHS compliant with halogen-free materials.
- Operating temperature range from -40°C to 150°C.
- Maximum DC resistance of 37 ohms ensuring low power loss.
Product Description
Bourns SRP1265A shielded wirewound surface mount inductor features a carbonyl powder core and offers an inductance of 22 μH ±20% with a maximum DC current rating of 9 A. This inductor is designed for demanding electronic applications requiring reliable high current handling and low electromagnetic interference.
The 1265 package case measures 13.5 mm in length, 6.2 mm in height, and 12.5 mm in depth. It utilizes a solder termination style and is compliant with the automotive industry standard AEC-Q200, ensuring suitability in automotive and industrial electronics.
The shielded construction significantly reduces EMI emissions, making it ideal for use in power supplies, converters, and filtering circuits in industrial, automotive, and consumer electronic devices. The carbonyl powder core contributes to high saturation current tolerance and stable inductance over temperature.
This inductor operates reliably in a temperature range from -40°C to 150°C, making it suitable for harsh environmental conditions. The maximum DC resistance of 37 ohms helps maintain efficiency in high current circuits. The product is RoHS compliant and halogen-free, supporting environmentally responsible manufacturing.
Features shielded construction for EMI reduction. Carbonyl powder core enables high saturation current. Inductance value of 22 microhenries with ±20% tolerance. Maximum DC current rating of 9 amperes. Compliant with AEC-Q200 automotive standard.
RoHS compliant with halogen-free materials. Operating temperature range from -40°C to 150°C. Maximum DC resistance of 37 ohms ensuring low power loss. Termination style designed for solder mounting. Available in tape and reel packaging for automated assembly.
This Bourns SRP1265A inductor is well-suited for applications in industrial electronics, automotive systems, power management, and electronic manufacturing where reliability, high current capability, and EMI reduction are essential. It supports PCB surface mount assembly and is available in tape and reel packaging for efficient production line integration.
Explore more Surface Mount Inductors and electronic components on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22 μH with a tolerance of ±20%.
It has a maximum DC current rating of 9 amperes.
This inductor operates reliably in a temperature range from -40°C to 150°C.
The maximum DC resistance is 37 ohms, which helps maintain efficiency in high current circuits.
The inductor features a carbonyl powder core and has a shielded construction for EMI reduction.
The dimensions are 13.5 mm in length, 6.2 mm in height, and 12.5 mm in depth.
It utilizes a solder termination style, suitable for surface mount assembly.
Yes, it is compliant with the AEC-Q200 automotive standard and is RoHS compliant.
The maximum self-resonant frequency is 6 MHz.
This inductor is well-suited for applications in industrial electronics, automotive systems, and power management.
It is available in tape and reel packaging for automated assembly.
The minimum quality factor is 20, indicating its efficiency in applications.
