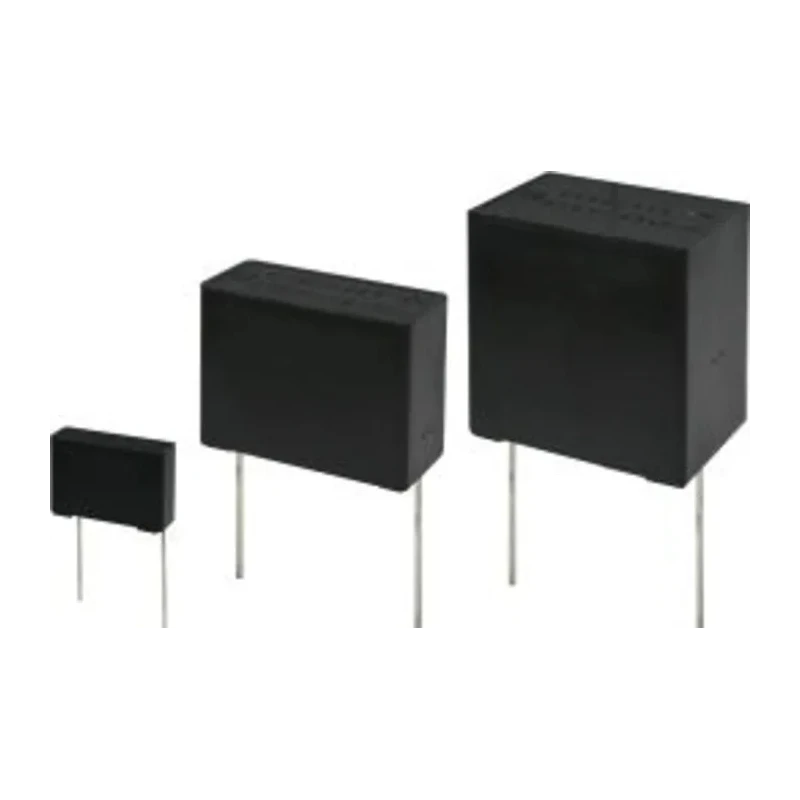

Panasonic ECQUA Film Capacitor X2, ±10 % Tolerance, 220 nF 275V AC Through Hole ECQUAAF224T1

Free Delivery in India | Lowest Global Shipping Charges

Panasonic ECQUA Film Capacitor X2, ±10 % Tolerance, 220 nF 275V AC Through Hole ECQUAAF224T1

Name: Panasonic ECQUA Film Capacitor X2, ±10 % Tolerance, 220 nF 275V AC Through Hole ECQUAAF224T1
Brand: Panasonic
SKU: 99345



Category Film Capacitors Brand Panasonic Condition New

Specifications

Country of Origin	China
Brand	Panasonic
Height	14mm
Length	17.5mm
Model	ECQUAAF224T1
Packaging	Bag
Width	7.5mm
Mount Type	Through Hole
Series	ECQUA
Maximum Operating Temperature	110°C
Tolerance	±10 %
Capacitance	220nF
Minimum Operating Temperature	-40°C
Terminal type	Solder
Dissipation Factor	0.1%
Lead Length	20mm
Rated AC Voltage	275V ac
Lead Pitch	15mm
Lead Diameter	0.6mm
Automotive Standard	AEC-Q200
Suppression Class	X2
High humidity resistance (THB test	85 °C, 85 %, 240 V.AC, 1000 h )

Key Features

High safety with built-in safety function for reliable operation.
High humidity resistance verified by THB test at 85 °C, 85% humidity, and 240 V AC for 1000 hours.
Excellent thermal shock resistance withstanding -40°C to 85°C cycling for 1000 cycles.
Flame-retardant plastic case and non-combustible resin construction for safety compliance.
Suitable for automotive interference suppression applications.
Complies with automotive standard AEC-Q200 ensuring automotive grade quality.
Rated AC voltage is 275V AC with X2 suppression class.
Mount type is through hole with solder terminal type and 15mm lead pitch.

Product Description

Panasonic ECQUAAF224T1 is a high-quality film capacitor designed for electrical and electronic applications requiring interference suppression with high safety requirements. With a capacitance of 220 nF and a tolerance of ±10%, this X2 class capacitor is rated for 275V AC and equipped for through hole mounting with a 15mm lead pitch.

This capacitor features a flame-retardant plastic case combined with a non-combustible resin, ensuring safety and reliability under rigorous conditions. It demonstrates excellent resistance to high humidity as confirmed by THB testing at 85 °C, 85% relative humidity, and 240 V AC stimulus for 1000 hours. Additionally, the capacitor withstands severe thermal shocks, cycling between -40°C and 85°C for 1000 cycles without degradation.

Compliant with automotive standard AEC-Q200, the ECQUAAF224T1 capacitor is suitable for automotive interference suppression roles, ensuring durability and performance in demanding vehicle environments. It also meets UL 60384-14, EN 60384-14, and CSA E60384-14 standards.

The device terminals are solder type with a lead length of 20mm and lead diameter of 0.6mm, enabling straightforward PCB assembly. Its dimension package includes a length of 17.5 mm, width of 7.5 mm, and height of 14 mm, making it compact for various PCB layouts.

High safety with safety function installed. High humidity resistance shown by THB test: 85 °C, 85%, 240 V AC, 1000 h. High thermal shock resistance between -40 °C and 85 °C over 1000 cycles. Flame-retardant plastic case and non-combustible resin.

Interference suppressor suitable for automotive applications. AEC-Q200 compliant for automotive industry demands. X2 suppression class rated at 275V AC. Through hole mount with 15mm lead pitch and solder terminals. Operating temperature range from -40°C to 110°C.

Compact dimensions for versatile PCB incorporation.

This film capacitor is ideal for automotive, electronic components manufacturing, industrial electronic circuit boards, and power electronics requiring interference suppression. It enhances EMC performance ensuring product safety and market compliance.

Explore more high-performance capacitors within the Panasonic ECQUA series at EnvMart for reliable industrial and automotive solutions.
