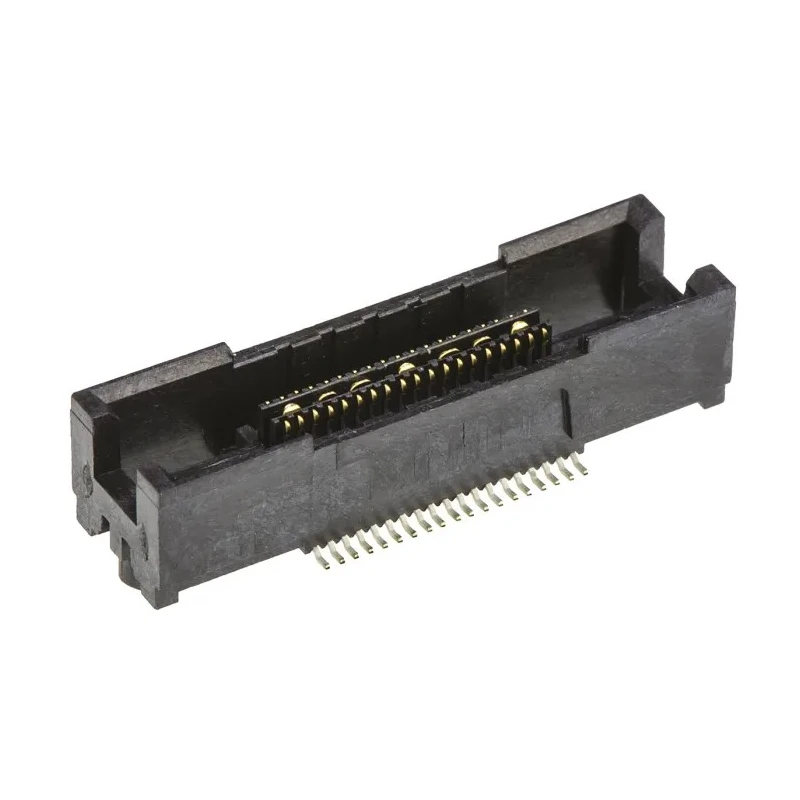

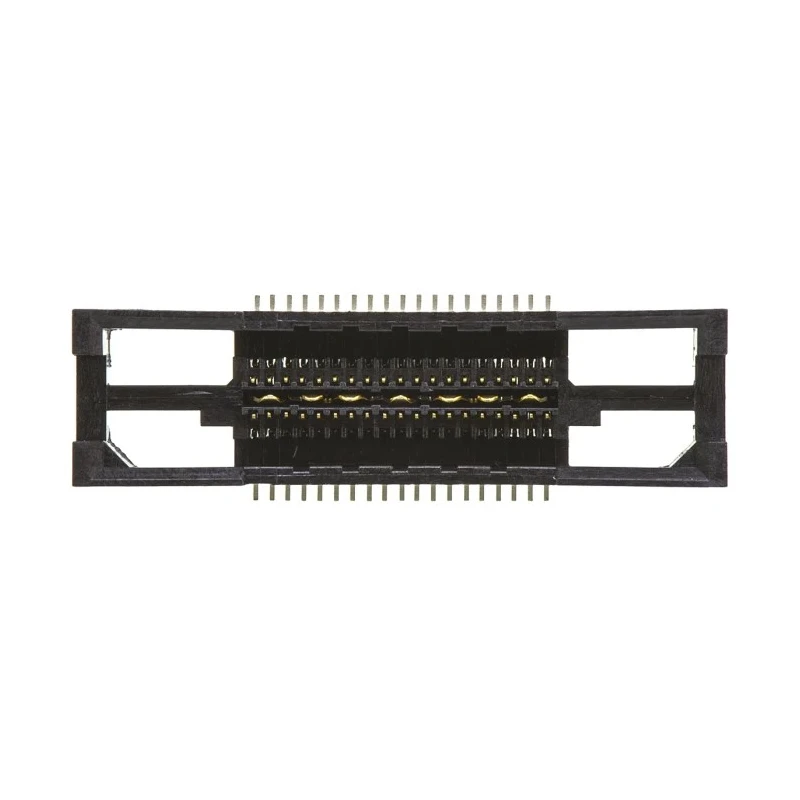

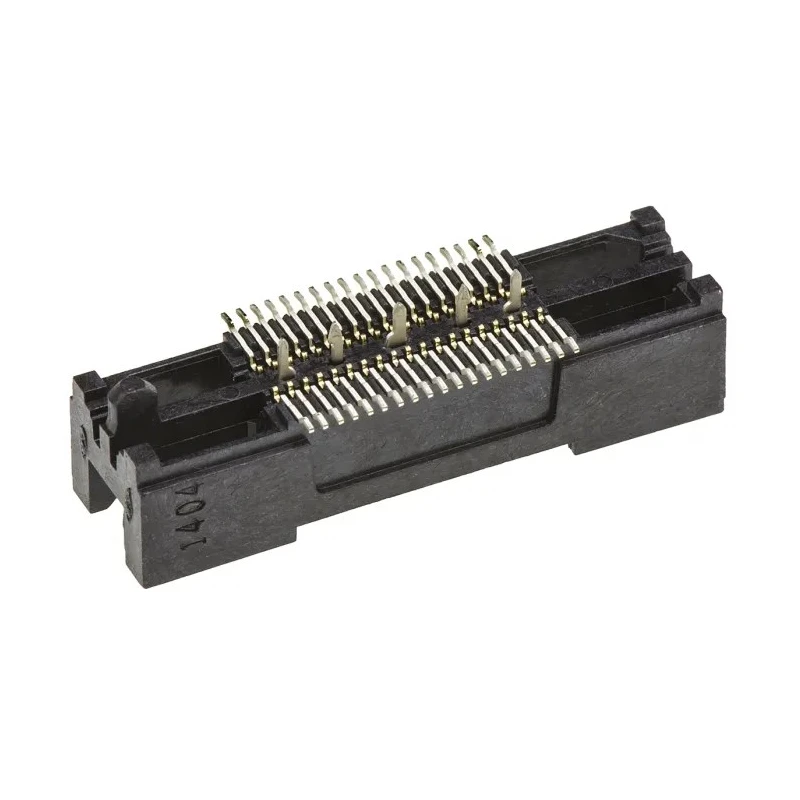

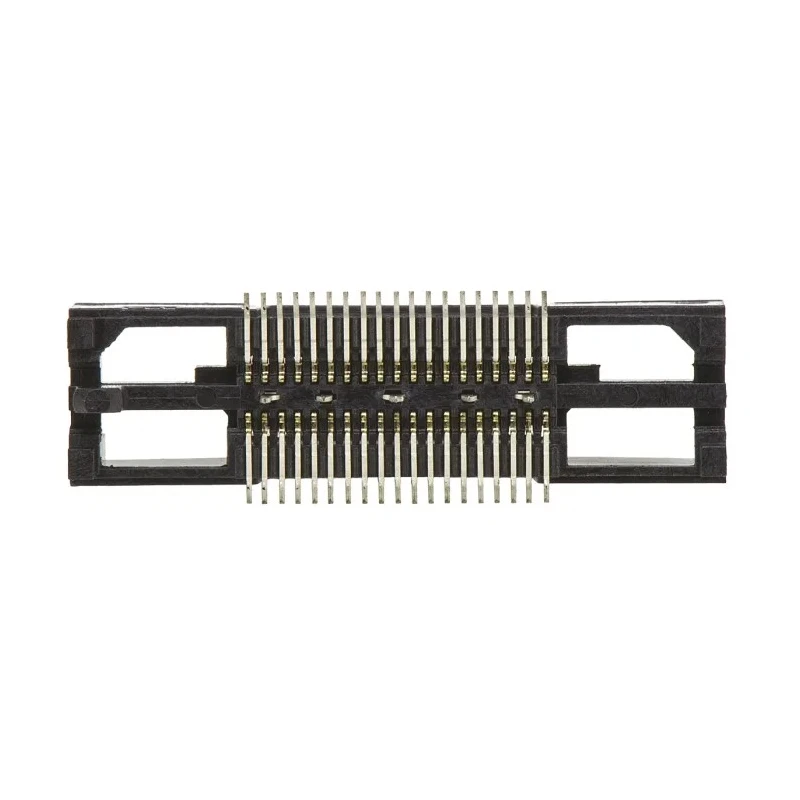

TE Connectivity MICTOR Series Straight Surface PCB Socket, 38-Contact, 2 Row, 0.64 mm Pitch Solder 2-5767004-2

TE Connectivity 2-5767004-2 MICTOR Series Straight Surface PCB Socket is a high-speed fine pitch connector designed for advanced electronic assembly. It features 38 female contacts arranged in 2 rows with a 0.64 mm pitch and uses solder termination for robust connectivity. The connector is built with a liquid crystal polymer housing, providing both durability and stability.

This PCB socket operates up to 30V and 11.5A current, supporting demanding telecommunications, enterprise switching, and data communication equipment. Its microstrip design with a high density of 76 signal pins per linear inch facilitates excellent signal integrity and performance beyond 10 Gbit/s.

The connector incorporates a redundant point of contact dual beam design, enhancing electrical reliability and durability in high-speed data applications. The polarized housings are designed to prevent improper mating, complemented by PCB retention features that secure the socket firmly on the board.

Its operating temperature range of -40°C to 55°C ensures consistent performance in diverse environmental conditions. This connector is part of the MICTOR series, a two-piece modular system consisting of plugs and receptacles, offering various mating heights and configurations for board-to-board connections.

Designed for high-speed data switching applications up to 10+ Gbit/s. Features a microstrip design with 76 signal pins per linear inch. Constructed with a liquid crystal polymer housing for durability. Supports 11.5A current and 30V voltage applications.

Offers a redundant point of contact dual beam contact design for reliability. Polarized housings prevent mismating during assembly. PCB retention features ensure secure connections on the board. Suitable for board-to-board mounting with a straight orientation.

Operates reliably within -40°C to 55°C temperature range.

This MICTOR Series PCB socket is ideal for industrial-grade electronics, telecommunications equipment, storage area networks, server hardware, and other high-speed communication platforms. It supports automated assembly processes, ensuring efficient manufacturing and precise connector placement.
