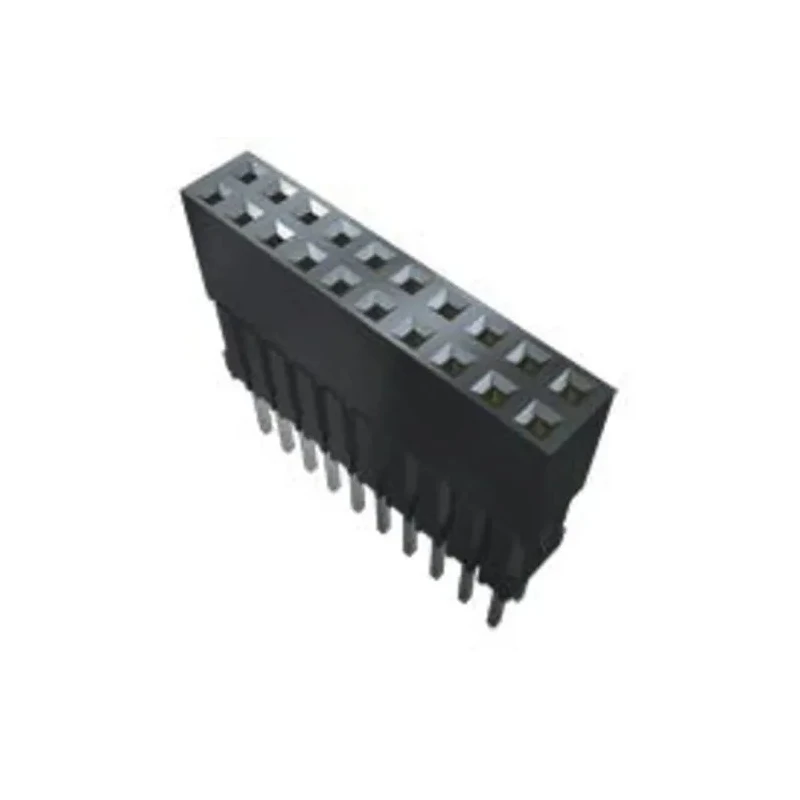

Samtec ESQ Series Elevated Straight Through Hole PCB Socket, 26-Contact, 2 Row, 2.54 mm Pitch, 23A, 225V ESQ-113-12-G-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 225V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 23A |
| Model | ESQ-113-12-G-D |
| Mount Type | Through Hole |
| Special Features | Standard and low insertion force contacts with .025" (0.635 mm) square tails for PC/104™ applications |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Bronze |
| Series | ESQ |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Elevated Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Connector System | Board-to-Board |
| Contact System | Tiger Buy™ |
Key Features
- Supports a current rating of 23 amperes for robust electrical performance.
- Constructed with black glass filled polyester housing for durability.
- Contacts are bronze material plated with gold for corrosion resistance.
- Designed for through-hole termination and vertical straight orientation.
- Operating temperature range extends from -55°C to 125°C for versatile applications.
- Includes standard and low insertion force contacts with .025" square tails suitable for PC/104 applications.
Product Description
Samtec ESQ-113-12-G-D is a high-quality elevated straight through hole PCB socket designed for electronic assembly and industrial applications. This 26-contact socket arranged in 2 rows with a 2.54 mm pitch is ideal for board-to-board connections requiring reliable signal transmission and robust current handling capacity of 23 amperes at 225 volts.
The housing is made of durable black glass filled polyester, ensuring mechanical strength and resistance to environmental factors. Contacts are fabricated from bronze and plated with gold to provide excellent conductivity and corrosion resistance, enhancing connection longevity.
Termination is via solder through-hole technology with a vertical straight orientation aiding easy PCB mounting. The socket supports a broad operating temperature range of -55°C up to 125°C, making it suitable for various industrial, manufacturing, and electronics applications.
Unique features include standard and low insertion force contacts with precisely engineered .025" (0.635 mm) square tails optimized for PC/104 applications, allowing versatile usage in embedded computing environments.
Robust current capacity of 23A ensures dependable electrical performance. Gold-plated bronze contacts provide superior conductivity and resistance. Durable black glass filled polyester housing for mechanical integrity. Wide operating temperature range supports diverse industrial conditions.
Through-hole solder termination with vertical orientation facilitates PCB assembly. Compatible with single, double, and triple row configurations up to 108 pins. Specially designed low insertion force contacts reduce mating stress on PCB.
This Samtec ESQ series PCB socket is well suited for industrial electronics, embedded systems, telecommunications, and manufacturing equipment where reliable, high-performance connectors are essential.
Explore more PCB Sockets and connectors in the Electronics & Electricals category at EnvMart for comprehensive technical solutions and industrial-grade components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a robust current rating of 23 amperes, ensuring reliable electrical performance for various applications.
The socket is rated for a maximum voltage of 225 volts, making it suitable for high-voltage applications.
The housing is made from black glass filled polyester, while the contacts are bronze plated with gold for enhanced conductivity and corrosion resistance.
The Samtec ESQ-113-12-G-D features a 2.54 mm pitch and includes 26 contacts arranged in 2 rows.
It operates within a wide temperature range of -55°C to 125°C, allowing for versatile use in various environments.
Termination is achieved through solder with a through-hole design, facilitating easy PCB assembly.
This socket utilizes the Tiger Buy™ contact system, which includes both standard and low insertion force contacts.
The socket is designed with a straight orientation, which aids in vertical PCB mounting.
Yes, it includes specially designed .025" (0.635 mm) square tails optimized for PC/104 applications, making it suitable for embedded computing environments.
The connector system is designed for board-to-board connections, ensuring reliable signal transmission.
This product is manufactured in India, ensuring compliance with local manufacturing standards.
Specific dimensions are not provided, but it features a 2.54 mm pitch and is designed for standard PCB layouts.
