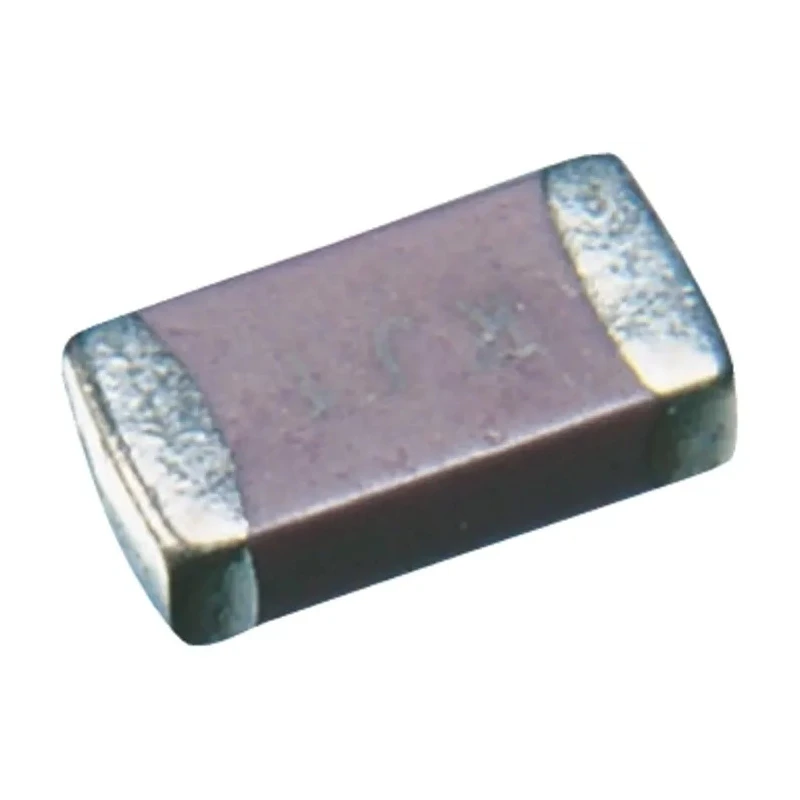

KEMET 1 nF Multilayer Ceramic Capacitor 500V DC ±5% Tolerance Surface Mount 1206 C1206C102JCGACTU
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V dc |
| Brand | KEMET |
| Height | 1mm |
| Length | 3.2mm |
| Model | C1206C102JCGACTU |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Construction | Stacked |
| Series | C |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 1nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1206 |
| Dielectric | C0G |
| Murata 1nF Multilayer Ceramic Capacitor MLCC, 500V dc V, ±5% , SMDBrand | Murata |
Key Features
- This capacitor features a stable C0G dielectric construction suitable for precision applications.
- It has a compact 1206 package size with dimensions 3.2mm length, 1.6mm width, and 1mm height.
- The device supports a wide operating temperature range from -55°C to 125°C.
- Termination type is solder with matte tin-plated contacts ensuring reliable connections.
- Packaging is tape and reel, designed for high volume automated assembly.
- The capacitor is lead-free, RoHS and REACH compliant, enhancing environmental compliance.
- This part is ideal for bypass, decoupling, and frequency discriminating circuits requiring stable capacitance.
Product Description
KEMET C1206C102JCGACTU is a 1 nF Multilayer Ceramic Capacitor designed for surface mount applications with a maximum voltage rating of 500V DC and a capacitance tolerance of ±5% using C0G dielectric.
This capacitor belongs to the C1206 series, featuring a stacked construction type and a 1206 package size measuring 3.2 mm length, 1.6 mm width, and 1 mm height. It operates reliably across a temperature range from -55°C minimum to 125°C maximum.
The termination style is solder with matte tin plating to ensure durability and effective electrical contact. Packaging is in tape and reel format, facilitating efficient pick-and-place assembly in automated production lines.
This device complies with industry standards including EIA 556, EIA 624, EIA 0805, EIA 0603, EIA 481, IPC-7351, J-STD-020, and EIA 1206. It is lead-free, RoHS and REACH compliant, aligning with environmental and safety requirements.
C0G dielectric delivers excellent temperature stability and low loss, making this capacitor suitable for applications requiring precise and stable capacitance such as bypass and decoupling circuits or frequency discriminating circuits where Q factor and capacitance stability are important.
This capacitor is ideal for industrial electronics, telecommunications, automotive electronics, and consumer devices. Its compact size and high voltage rating make it suitable for use in high-density PCB designs. Quality compliance ensures reliability in demanding industrial and electronic applications.
Explore the wide range of KEMET Multilayer Ceramic Capacitors available at EnvMart for your specific design requirements and high-performance applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 1 nF.
The maximum voltage rating is 500V DC.
The capacitor has dimensions of 3.2 mm in length, 1.6 mm in width, and 1 mm in height.
It operates reliably across a temperature range from -55°C to 125°C.
This capacitor uses a C0G dielectric, which provides excellent temperature stability and low loss.
It is packaged in tape and reel format, which facilitates efficient pick-and-place assembly in automated production lines.
The termination type is solder with matte tin plating, ensuring effective electrical contact.
The capacitance tolerance is ±5%.
The country of origin for this capacitor is India.
It is suitable for bypass, decoupling, and frequency discriminating circuits requiring stable capacitance.
This capacitor complies with several industry standards including EIA 556, EIA 624, and IPC-7351.
