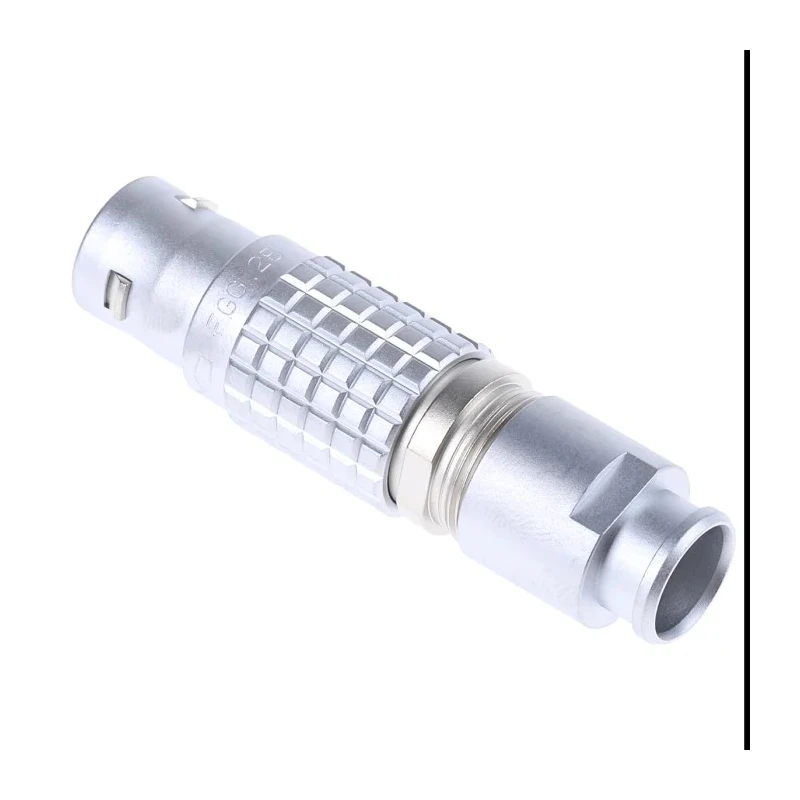

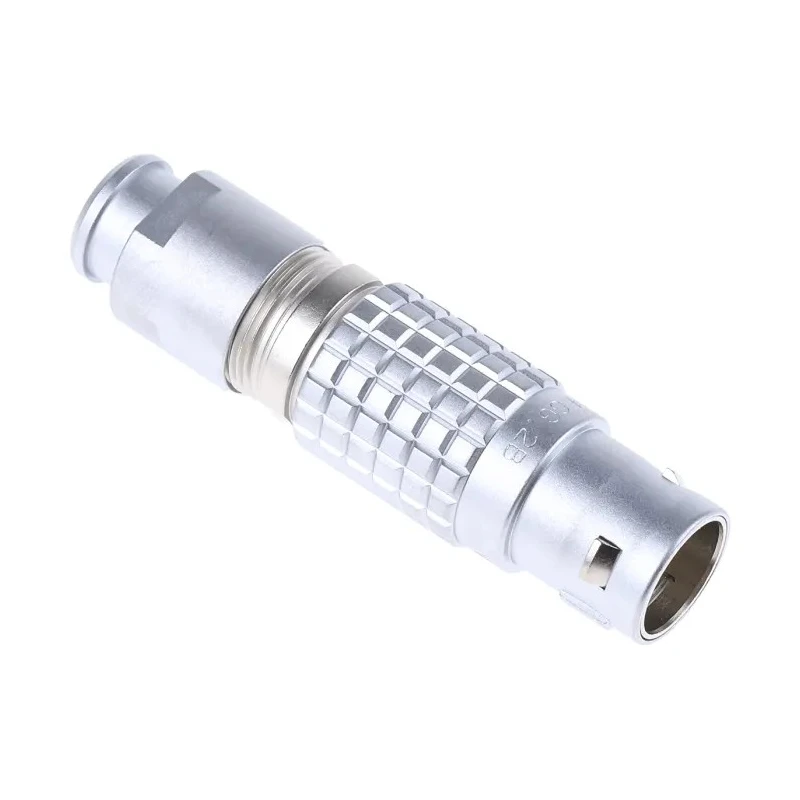

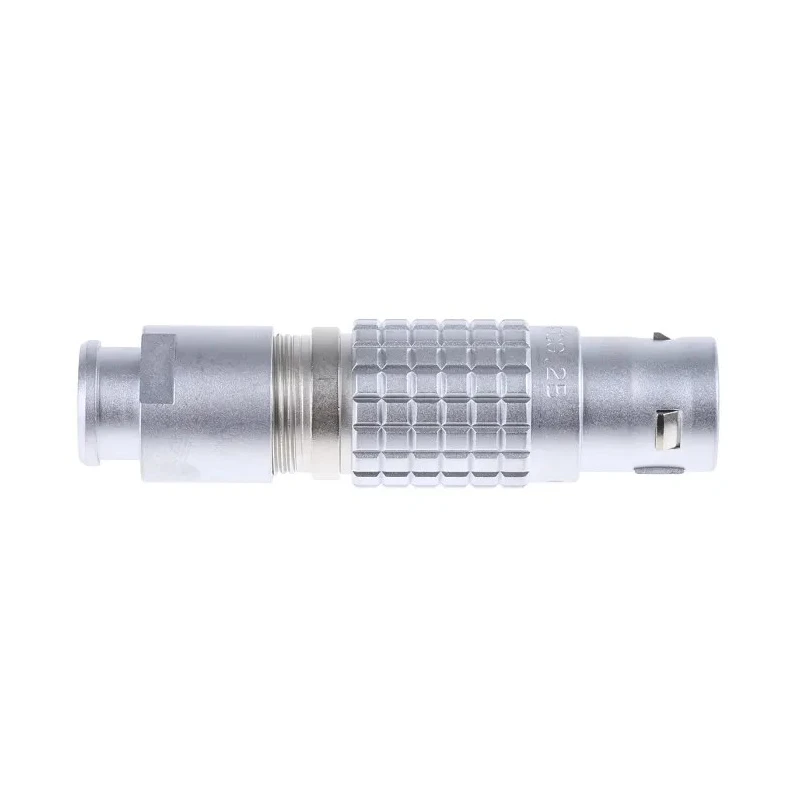

LEMO Circular Connector 7 Contacts Cable Mount 15 mm Plug Male IP50 2B Series FGG.2B.307.CLAD92Z
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 2500V |
| Brand | LEMO |
| Orientation | Straight |
| Current | 11A |
| Model | FGG.2B.307.CLAD92Z |
| IP Rating | IP50 |
| Mount Type | Cable |
| Housing Material | Brass |
| Contact Material | Brass |
| Series | 2B |
| Termination Type | Solder |
| Maximum Operating Temperature | 250°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 7 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shell Size | 2 |
| Mating Type | Push Pull |
| Connector Size | 15 mm |
| Plug/Socket | Plug |
Key Features
- Rated for a current of 11A with straight body orientation.
- Features a push-pull self-latching system for secure and easy connection.
- Constructed with brass housing and gold over nickel plated contacts for corrosion resistance.
- Operates reliably between -55°C to 250°C with IP50 ingress protection.
- Compatible with cables sized between 8.3 mm and 9.2 mm diameter.
- Designed for up to 5000 mating cycles with high vibration and shock resistance.
- Ideal for medical, research, and test instrumentation uses.
- Manufactured in Switzerland, ensuring premium quality standards.
Product Description
LEMO FGG.2B.307.CLAD92Z Circular Connector is a robust 7-contact cable mount plug designed to deliver reliable connectivity in demanding industrial environments. This 15 mm connector features a precise push-pull self-latching mechanism equipped with a collet and nut to provide bend relief and a secure cable fit.
Constructed from chrome-plated brass with a nickel-plated brass latch inner sleeve and collet nut, this connector offers outstanding durability and corrosion resistance. The gold over nickel plating on the brass contacts enhances conductivity and longevity.
Rated for 11A current and supporting a voltage of 2500V, the connector is suitable for high-performance applications requiring stable and secure signal transmission. Its IP50 ingress protection rating ensures moderate protection against dust and contaminants.
The connector supports solder termination and accommodates cable diameters from 8.3 mm to 9.2 mm. It maintains high operational reliability over a wide temperature range, from -55°C to 250°C, and endures up to 5000 mating cycles, making it viable for long-term usage in harsh conditions with strong vibration and shock resistance.
Applications include medical device connections, research equipment, and test and measurement instrumentation where secure and robust connections are critical. LEMO’s 2B series connectors are known for their quality and reliability, often chosen for industrial, laboratory, and field instrumentation.
Rated current of 11A with straight orientation. Push-pull self-latching system ensures quick and secure mating. Corrosion resistant brass housing and plated contacts. Wide temperature operating range from -55°C to 250°C.
IP50 rated for moderate ingress protection. Compatible with cables of 8.3 mm to 9.2 mm diameter. Up to 5000 mating cycles endurance. High vibration and shock resistance.
Choose the LEMO FGG.2B.307.CLAD92Z for advanced industrial circular connector needs, ensuring durability and dependable performance. Explore more in our Electronics Components and Industrial Circular Connector categories at EnvMart.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a current of 11A.
The voltage rating for this connector is 2500V.
It operates reliably between -55°C and 250°C.
This model uses solder termination.
It has an IP50 ingress protection rating, providing moderate protection against dust and contaminants.
The connector has a size of 15 mm.
This model features 7 contacts.
It is constructed with brass housing and features gold over nickel plated contacts for enhanced conductivity and corrosion resistance.
It is compatible with cables sized between 8.3 mm and 9.2 mm in diameter.
This connector is designed for up to 5000 mating cycles.
It is ideal for medical, research, and test instrumentation applications where secure connections are critical.
This connector is manufactured in Switzerland, ensuring high-quality standards.
