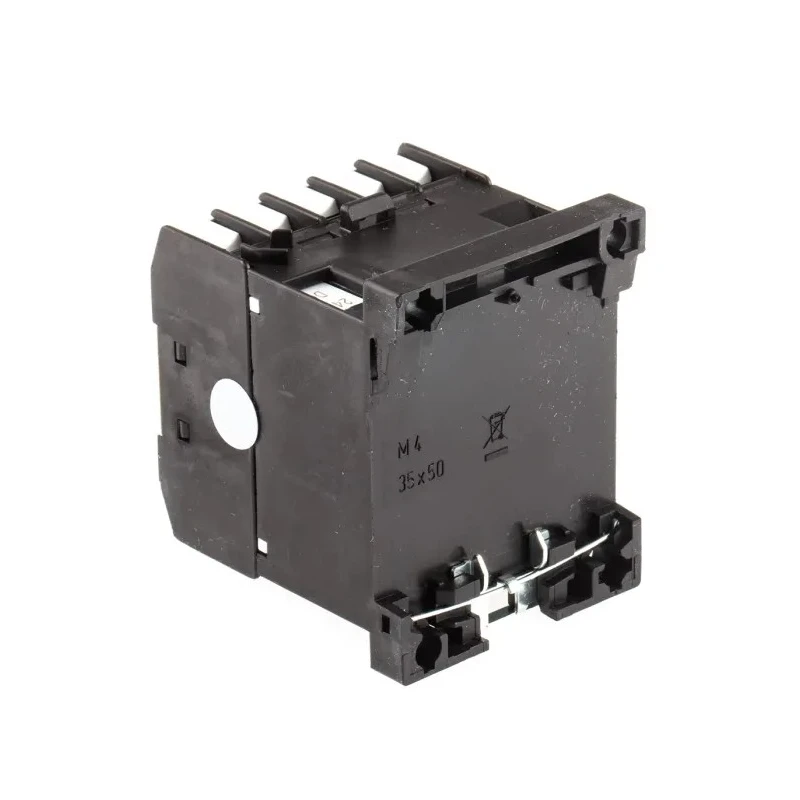

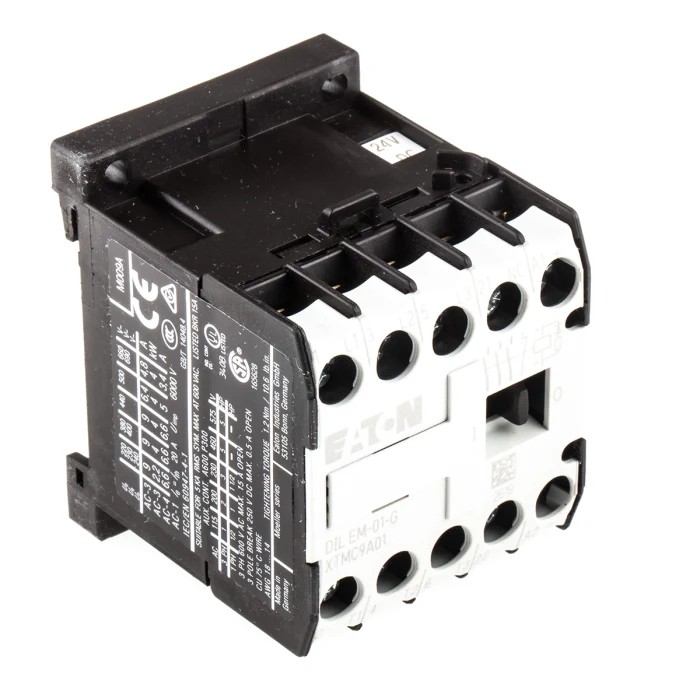

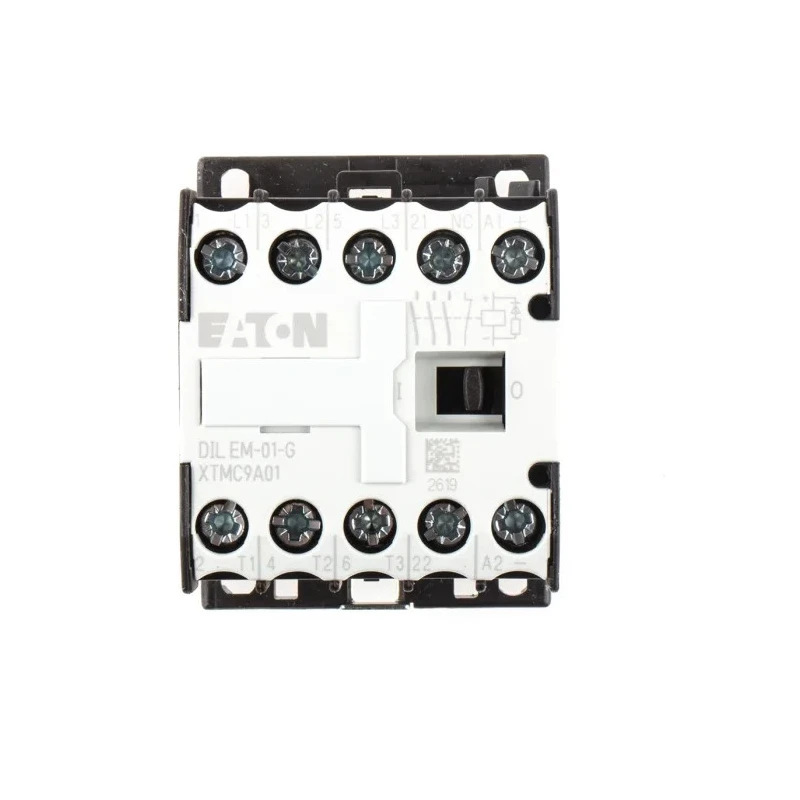

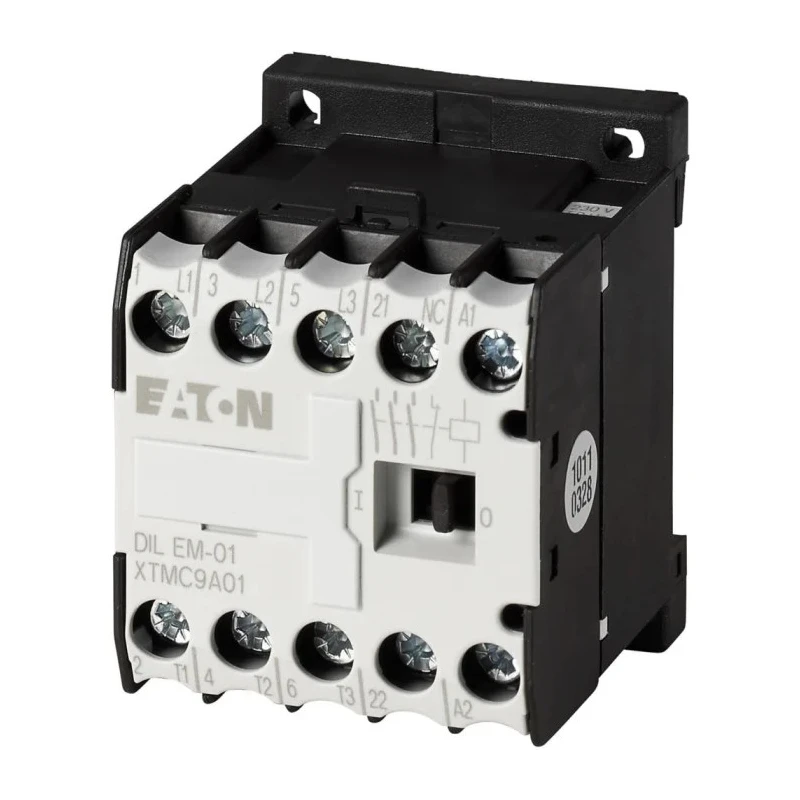

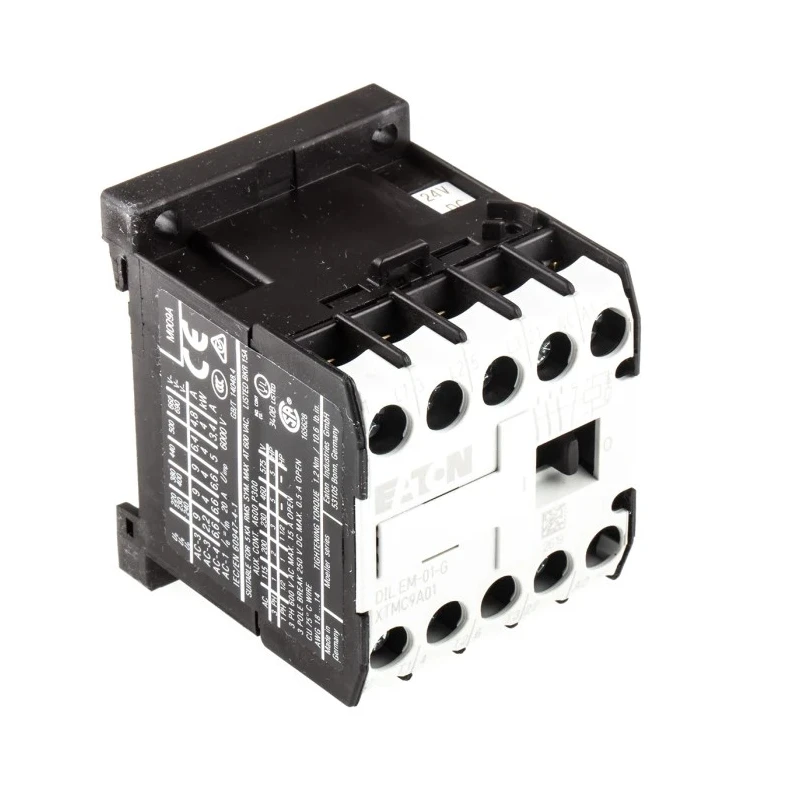

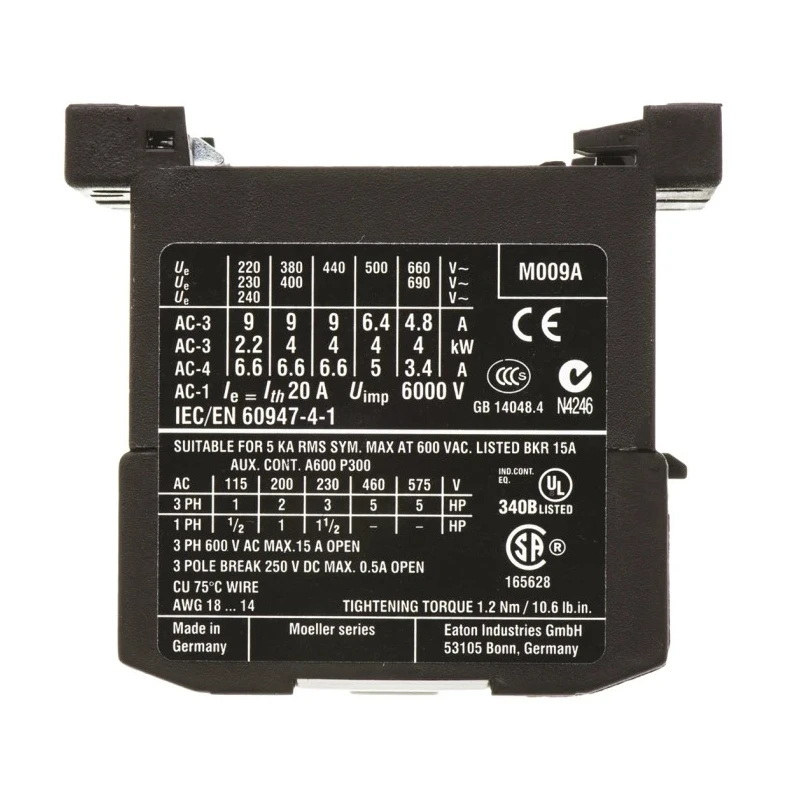

Eaton DILEM Contactor 24V DC Coil, 3-Pole, 9 A Contact Current, 4 kW Power Rating 010343 DILEM-01-G(24VDC)
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 58mm |
| Model | 010343 DILEM-01-G(24VDC) |
| Depth | 83mm |
| Width | 45mm |
| Mount Type | Screw |
| Series | DILEM |
| Power Rating | 4kW |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, IEC/EN 60947, UL, VDE 0660 |
| Contact Voltage | 400V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| RS PRO Contactor, 24V dc Coil, 3-Pole, 9 A, 4 kW, 400V, 3 VRS Stock No. | 277-8394Brand: RS PRO |
Key Features
- The contactor features screw terminal mounting for ease of installation.
- It includes one auxiliary contact configured as 1 NC for additional control.
- The unit operates reliably within a temperature range of -25°C to 40°C.
- Compact dimensions of 58mm length, 83mm depth, and 45mm width save space in control panels.
- IP20 protection rating ensures touch safety and protection against small objects.
- Mechanical endurance up to 20 million operations guarantees long service life.
- Suitable for industrial automation, motor control, and mechanical engineering applications.
- Contact voltage rating is 400V AC with 3 normally open poles (3 NO configuration).
Product Description
Eaton 010343 DILEM-01-G(24VDC) Contactor with a 24V DC coil voltage and 3-pole configuration is engineered for efficient motor control and resistive load switching in demanding industrial environments.
This contactor is compact yet rugged, measuring 58mm in length, 83mm in depth, and 45mm in width, making it an ideal space-saving solution for panel assemblies. The screw terminal mounting facilitates quick and secure wiring installation.
Operating reliably over a wide temperature range from -25°C to 40°C, the device withstands harsh industrial conditions, ensuring consistent performance throughout its lifecycle. Featuring an IP20 rating, it provides protection from accidental touch and intrusion of solid particles larger than 12mm.
The contactor supports motor control applications with a rated contact current of 9A and a power rating of 4 kW, with a contact voltage rated at 400V AC and three normally open poles (3 NO). An auxiliary contact with 1 NC configuration adds backup control capabilities.
With a mechanical lifespan of up to 20 million operations and an operational frequency capacity of 9,000 operations per hour, this Eaton DILEM series contactor delivers dependable switching performance for industrial automation, manufacturing, and mechanical engineering sectors.
The contactor has screw terminals for easy wiring. Its auxiliary contact is configured as one normally closed (1 NC) contact. IP20 rating offers protection against finger contact and objects greater than 12mm. Compact size aids in efficient panel layout and space management.
Wide operating temperature range suits harsh industrial conditions. High mechanical endurance ensures extended product life. Rated for 3-pole switching and 9A current. Designed for motor control and resistive load applications.
Operates at coil voltage of 24V DC with contact voltage of 400V AC.
Originating from Germany, this contactor reflects Eaton’s quality and standards compliance, including CSA, IEC/EN 60947, UL, and VDE 0660 certifications. It is a reliable choice for systems requiring durable, efficient switching components.
Explore EnvMart’s broad selection of industrial electrical components and Contactors to find compatible products for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 4 kW.
The contact voltage rating is 400V AC.
This model has a 3-pole configuration with three normally open contacts (3 NO).
The coil voltage for this contactor is 24V DC.
It operates reliably within a temperature range of -25°C to 40°C.
This unit features screw terminal mounting for ease of installation.
It includes one auxiliary contact configured as 1 normally closed (1 NC).
The mechanical endurance is rated up to 20 million operations.
The dimensions are 58mm in length, 83mm in depth, and 45mm in width.
It complies with CSA, IEC/EN 60947, UL, and VDE 0660 standards.
This contactor is suitable for motor control and resistive load applications.
The maximum operational frequency is 9,000 operations per hour.
