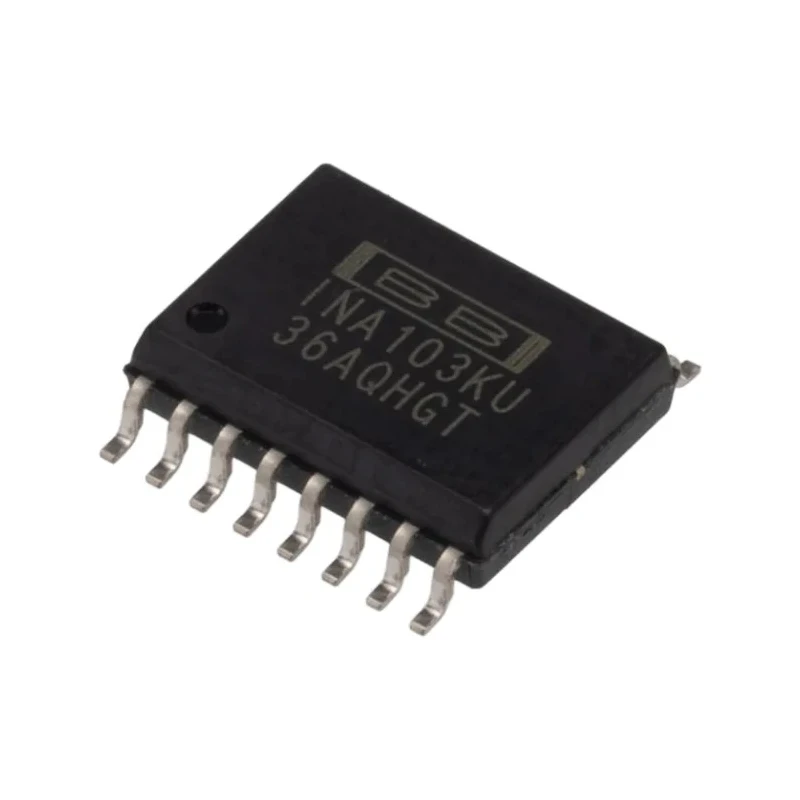

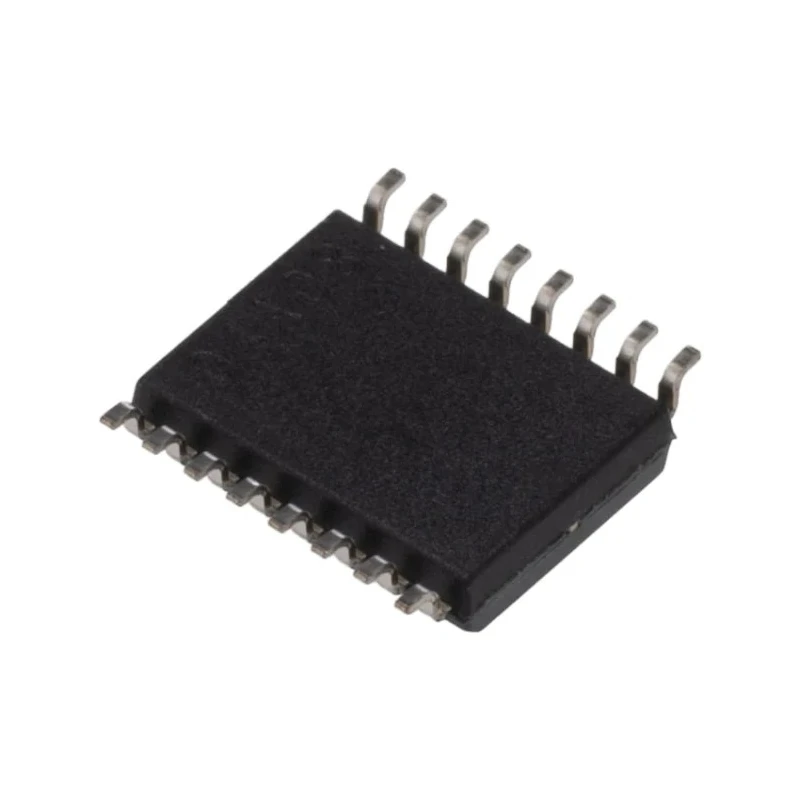

Texas Instruments Instrumentation Amplifier 16-Pin SOIC, 0.25 mV Offset, 6 MHz Gain Bandwidth, 12.5 mA Supply INA103KU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 2.35mm |
| Length | 10.28mm |
| Model | INA103KU |
| Mount Type | Surface |
| Series | INA103 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 16 |
| Maximum Supply Voltage | 25V |
| Minimum Supply Voltage | 9V |
| Supply Current | 12.5mA |
| GBP - Gain Bandwidth Product | 6MHz |
| Vos - Input Offset Voltage | 0.25 mV |
| Slew Rate | 15V/μs |
| CMRR - Common Mode Rejection Ratio | 100dB |
Key Features
- Single channel instrumentation amplifier with high common-mode rejection ratio.
- Operates from 9V to 25V supply voltage range.
- Low input offset voltage of 0.25 mV ensures accurate measurements.
- High slew rate of 15 V/μs supports fast signal changes.
- Supply current is low at 12.5 mA for efficient operation.
- Wide operating temperature range from -40°C to 85°C.
- 16-pin SOIC surface mount package for compact PCB design.
- Gain bandwidth product of 6 MHz enables high-frequency response.
Product Description
Texas Instruments INA103KU is a precision instrumentation amplifier supplied in a compact 16-pin SOIC package. This device amplifies the differential voltage between two input signals while rejecting common-mode noise, making it ideal for high accuracy measurement environments.
With a low input offset voltage of 0.25 mV and a gain bandwidth product of 6 MHz, the INA103KU provides exceptional precision and fast response suitable for industrial, laboratory, and medical instrumentation applications.
The amplifier operates within a voltage supply range of 9 to 25 volts, consuming a low current of 12.5 mA, which makes it efficient for battery-powered and low-power systems. The device delivers a high slew rate of 15 V/μs ensuring quick response to input changes without distortion.
The operating temperature spans from -40°C to 85°C, enabling reliable performance in harsh industrial or environmental conditions. The 16-pin SOIC surface mount form factor facilitates easy integration onto printed circuit boards in compact and space-sensitive designs.
Single channel instrumentation amplifier optimized for precision signal conditioning. Exceptional common-mode rejection ratio of 100 dB enhances noise immunity. Suitable for use in industrial control, medical devices, and laboratory equipment.
Low offset voltage and drift provide measurement stability over temperature changes. Compact SOIC package supports surface mount assembly techniques.
This instrumentation amplifier is a key component for accurate sensor signal amplification in electrically noisy environments, contributing to enhanced system reliability and measurement fidelity. Users can leverage the INA103KU in applications such as data acquisition, transducer interfacing, and analog signal processing.
Explore more high-quality semiconductor products in the instrumentation amplifier category to support your electronic design and manufacturing needs on EnvMart.
Explore more products in our Instrumentation Amplifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The INA103KU operates within a supply voltage range of 9V to 25V.
It features a low input offset voltage of 0.25 mV, ensuring accurate measurements.
The gain bandwidth product of this model is 6 MHz, allowing for high-frequency response.
The maximum operating temperature for the INA103KU is 85°C.
This model is a single channel instrumentation amplifier.
It has a slew rate of 15 V/μs, which supports fast signal changes.
The common-mode rejection ratio (CMRR) is 100 dB, enhancing noise immunity.
This instrumentation amplifier is provided in a 16-pin SOIC surface mount package.
The supply current for this model is 12.5 mA, making it efficient for operation.
The minimum operating temperature for this amplifier is -40°C.
This instrumentation amplifier is suitable for applications in industrial control, medical devices, and laboratory equipment.
The height of this model is 2.35 mm.
