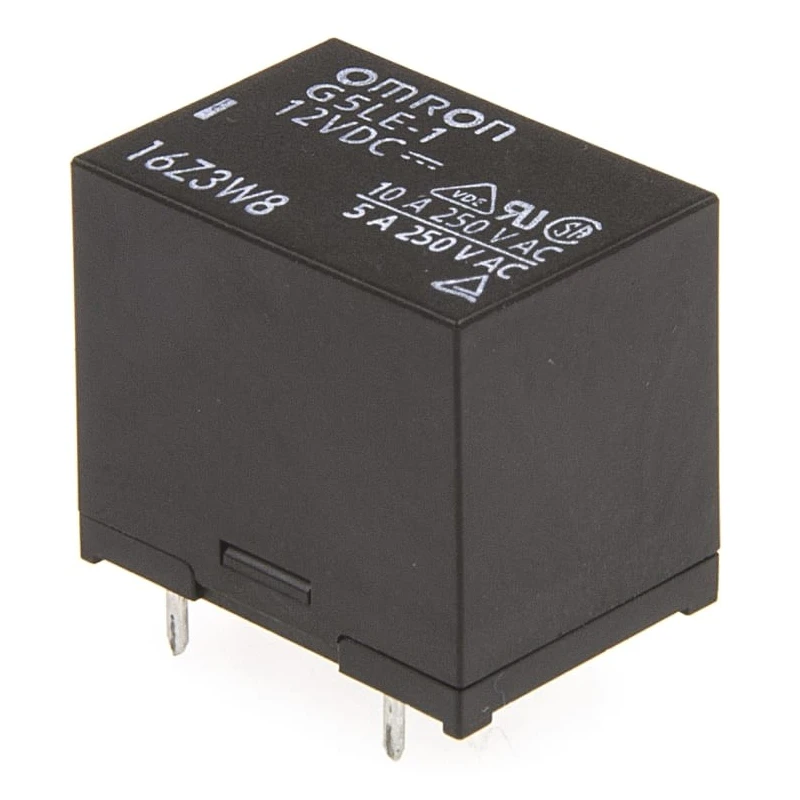

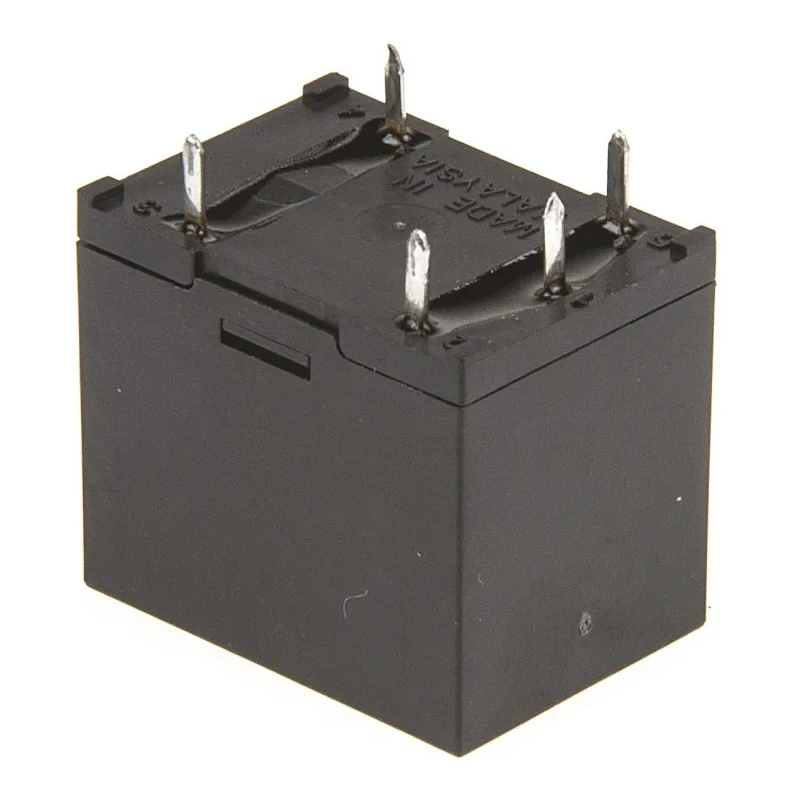

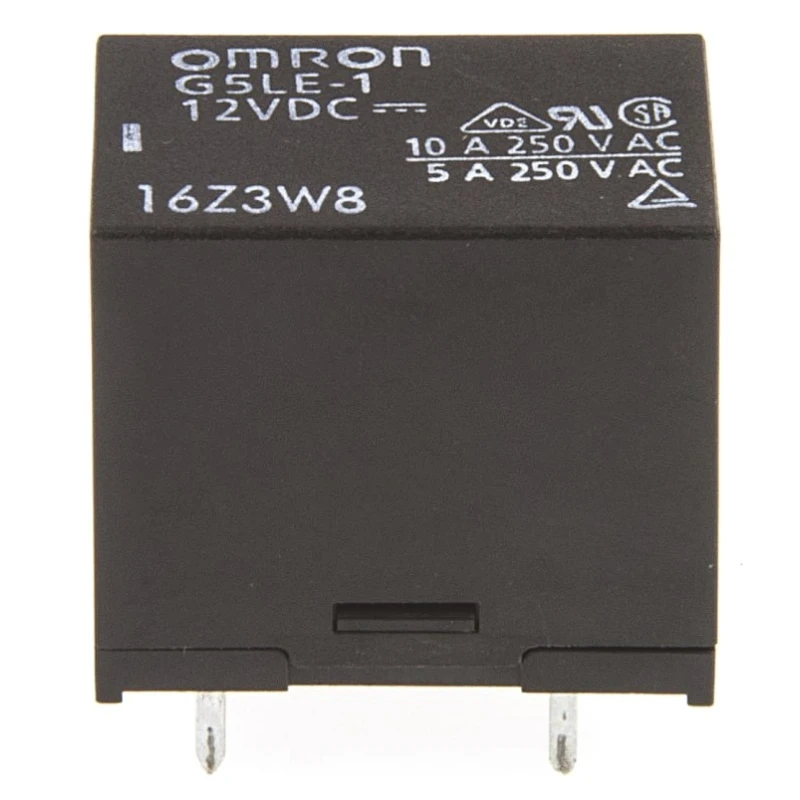

Omron PCB Power Relay 12V dc Coil 10A Switching Current SPDT G5LE-1 12DC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 19mm |
| Length | 22.5mm |
| Model | G5LE-1 12DC |
| Width | 16.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5LE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Standards/Approvals | UL, RoHS, IEC, EN, CE |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Compact subminiature 'sugar cube' format suitable for space-constrained control circuits.
- High current switching capacity supporting up to 10A continuous current.
- Coil power consumption is low at 400mW, enhancing energy efficiency.
- Operates effectively within a wide temperature range from -25°C to 85°C.
- Silver alloy contacts ensure reliable conductivity and durability.
- Coil resistance rated at 360 ohms for stable performance.
- Supports switching AC voltage up to 400V ac, suitable for various industrial applications.
- Compliance with UL, CSA, VDE, RoHS, IEC, EN, and CE standards guarantees safety and quality.
Product Description
Omron G5LE-1 12DC PCB Power Relay is engineered for industrial, automation, and electrical control applications requiring reliable switching performance. Featuring a 12V DC coil and a 10A switching current capability, this relay is designed with a compact subminiature 'sugar cube' format, optimizing space on PCBs.
The SPDT contact configuration offers flexible switching options, while silver alloy contacts provide excellent conductivity and long-lasting reliability under continuous heavy loads. Coil power consumption is minimized to 400mW, supporting energy-efficient operation in control circuits.
This relay withstands operating temperatures ranging from -25°C to 85°C, suitable for harsh industrial environments. Its switching AC voltage rating of up to 400V AC ensures compatibility with a broad range of electrical systems.

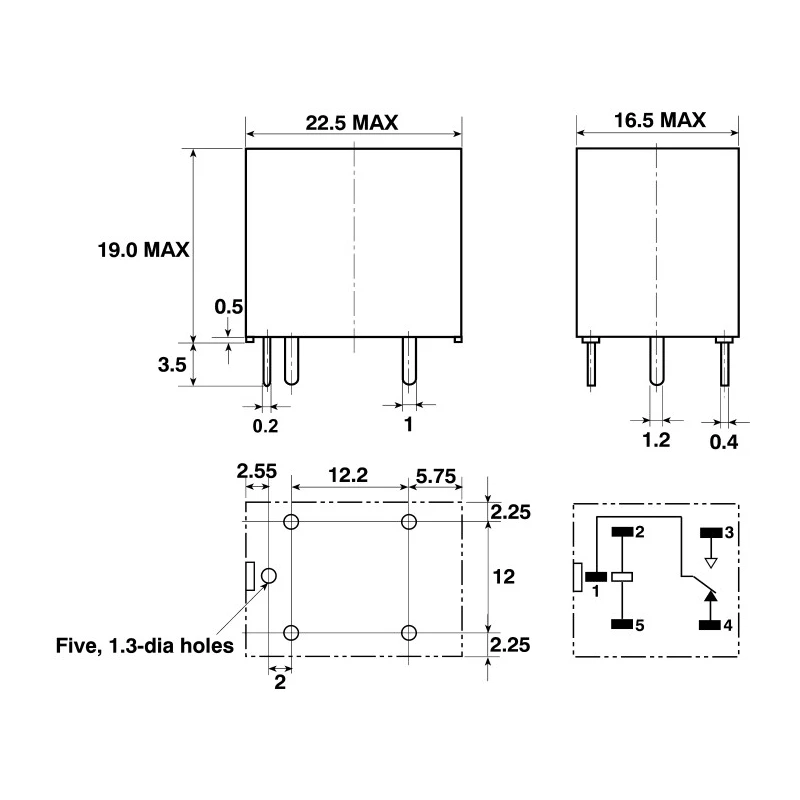

Measuring 22.5mm in length, 16.5mm in width, and 19mm in height, the G5LE-1 12DC is ideal for dense PCB layouts requiring power relays with small footprints. It complies with rigorous international standards including UL, CSA, VDE, RoHS, IEC, EN, and CE, affirming quality and safety for industrial use.
Applications include industrial automation systems, power management, signal conditioning, and other electronic control solutions requiring reliable, robust relay switching. The PCB mounting type with PCB pin terminals simplifies installation and promotes secure electrical connections.
Compact subminiature 'sugar cube' relay for PCB mounting. 12V DC coil voltage with 400mW coil power consumption. 10A switching current capability with SPDT contact configuration. Operating temperature range from -25°C to 85°C for industrial environments.
Silver alloy contact material for durability and conductivity. Switching AC voltage up to 400V AC supporting versatile applications. Compliance with UL, CSA, VDE, RoHS, IEC, EN, and CE standards. Ideal for industrial and automation control circuit applications.
Dimensions: 22.5 x 16.5 x 19 mm (LxWxH). Explore more Omron Power Relays and other electronic components for your industrial automation and PCB assembly needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 10A, making it suitable for various electrical applications.
The coil voltage for the G5LE-1 12DC is 12V DC, which is standard for many control circuits.
The relay measures 22.5mm in length, 16.5mm in width, and 19mm in height, making it compact for PCB mounting.
It operates effectively within a temperature range of -25°C to 85°C, suitable for harsh industrial environments.
This relay features a Single Pole Double Throw (SPDT) contact configuration, allowing for flexible switching options.
The coil resistance is rated at 360 ohms, ensuring stable performance during operation.
The G5LE-1 12DC can switch AC voltage up to 400V AC, making it versatile for various applications.
The contacts are made of silver alloy, which ensures reliable conductivity and durability under heavy loads.
This relay complies with several international standards, including UL, CSA, VDE, RoHS, IEC, EN, and CE, ensuring safety and quality.
It is designed for PCB mounting with PCB pin terminals, simplifying installation and promoting secure electrical connections.
The coil power consumption is low at 400mW, enhancing energy efficiency in control circuits.
This model is suitable for industrial automation systems, power management, signal conditioning, and other electronic control solutions.
