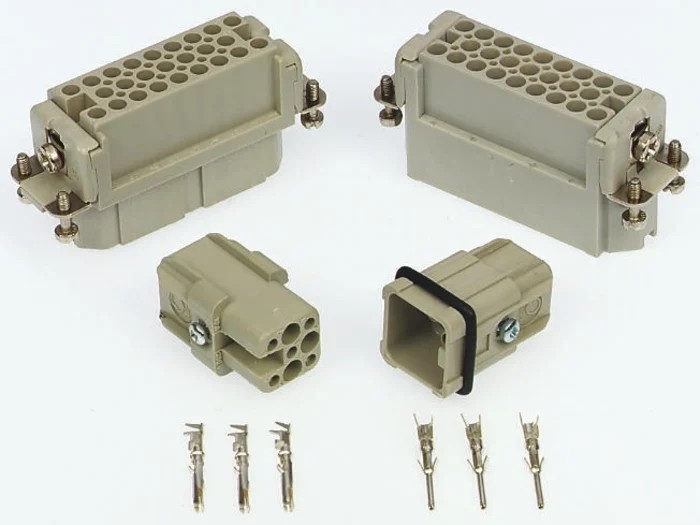

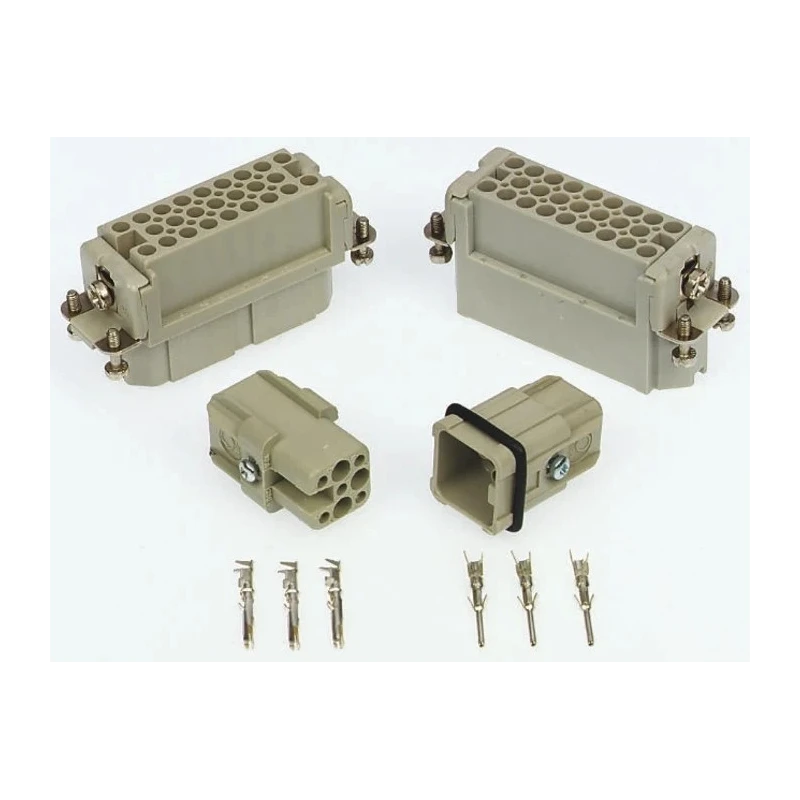

EPIC Heavy Duty Power Connector Insert, Female, 10A Current Rating, 15 Contacts, 250V Voltage, HD Series 11.2560

EPIC 11.2560 Heavy Duty Power Connector Insert is a female connector designed for industrial and commercial power connection applications. It supports a rated current of 10 amperes and operates at a voltage of 250V, featuring 15 contacts plus an earth connection (15+E) which provides a reliable power transfer and control interface.

This connector belongs to the HD series and is intended for cable mounting with an IP54 rating, which offers protection against dust ingress and water splashes, suitable for harsh environments in manufacturing, automation, and heavy electrical equipment installations.

The contact material is a copper alloy with silver plating to maximize electrical conductivity and corrosion resistance. The contacts are formed and can be crimped using the appropriate tooling, ensuring secure termination of wires within the range of 0.5 mm² to 1.5 mm² cross-sectional area. The straight orientation and female connector gender make it compatible with corresponding HD series plugs.

The product is engineered with high-density contact loading to allow more connections in smaller housing, optimizing space without compromising connectivity quality. Assembled connectors are type tested for reliable performance at 10A 250V AC according to VDE standards and hold approvals from SEV, UL, and CSA for assured quality and safety.

Typical applications include industrial machinery, heavy-duty power control systems, and electrical assemblies requiring durable and serviceable connector solutions. The insert design also ensures that a separate earth connection is made through all inserts to enhance operational safety.

Rated 10A current and 250V voltage for industrial power connections. 15+E pole format with high-density contact layout. Copper alloy contacts with silver plating for conductivity and durability. IP54 rated cable mount ensuring resistance to dust and water ingress.

Compatible with heavy duty connector systems, supporting cable wire sizes 0.5 to 1.5 mm². Formed contacts enable effective crimp termination with specialized tooling. Compliant with VDE 0110, SEV, UL, and CSA standards for safety and quality.

The product is manufactured in Germany, maintaining high-quality engineering standards for heavy duty industrial electrical connectors. This EPIC Heavy Duty Power Connector Insert meets rigorous industrial requirements and is suitable for use in demanding environments where reliable electrical connections are critical.
