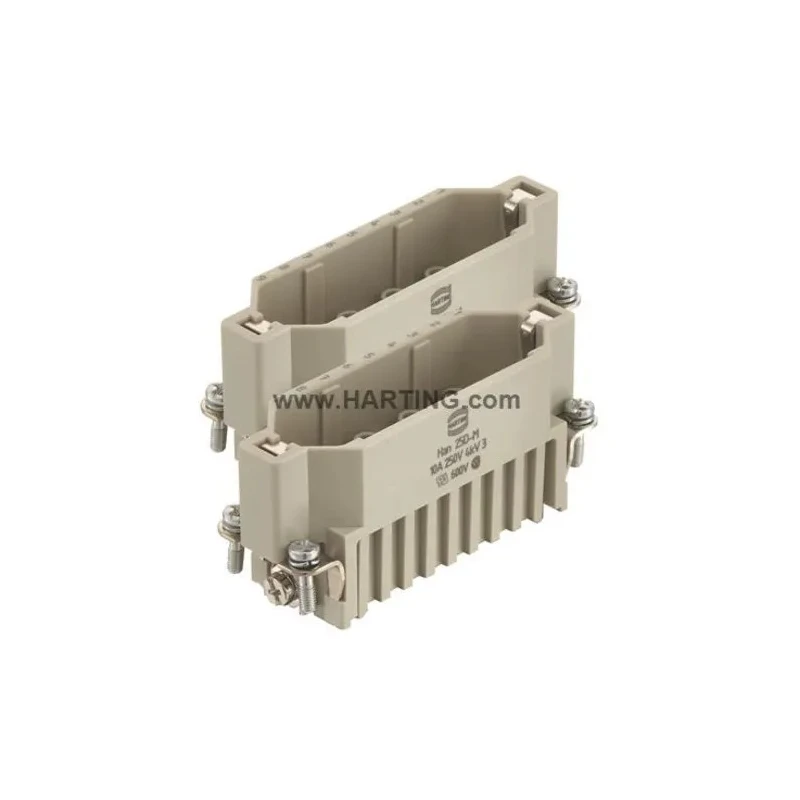

Harting Heavy Duty Power Connector Insert 10A Han D Series Male 25 Contacts 09210253011
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 600V |
| Brand | Harting |
| Orientation | Straight |
| Mount Type | PCB |
| Contact Material | Polycarbonate |
| Current Rating | 10A |
| Series | Han D |
| Sub Type | Connector Insert |
| Number of Rows | 3 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 25 |
| Number of Contacts | 25 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- The connector insert supports up to 600V voltage rating for reliable power conduction.
- It features a crimp termination method ensuring secure wire connection.
- The body orientation is straight, suitable for standard PCB mount assemblies.
- Constructed using durable polycarbonate contact material for high insulation and mechanical strength.
- Designed for a wire size range from 0.14 mm² to 2.5 mm², suitable for diverse wiring needs.
- The insert has 3 rows of contacts arranged to provide 25 poles for connection.
- It supports operating temperatures between -40°C and 125°C, suitable for harsh environments.
- The product is manufactured in Romania maintaining high-quality standards.
Product Description
Harting 09210253011 Heavy Duty Power Connector Insert is an industrial-grade, PCB mount male insert from the Han D series designed for reliable power and signal transmission in electronic and electrical equipment. Rated at 10 amperes and supporting a voltage of 600 volts, this connector insert offers robust performance for demanding applications in automation, machinery, and control systems.
The insert comprises 25 contacts arranged in 3 rows, configured in a straight orientation to align precisely with PCB mounting requirements. The connection is secured via crimp termination, ensuring durable contact stability and electrical conductivity.
Constructed using polycarbonate material, the contacts provide excellent insulating properties combined with mechanical robustness. The connector supports a wire size range from 0.14 mm² to 2.5 mm², enabling versatile use with various cable types.
It is designed for operation in temperature environments ranging from -40°C to 125°C, making it suitable for industrial, manufacturing, automation, and HVAC electrical system integration.
Manufactured in Romania, this insert complies with multiple industry standards and certifications including CSA-C22.2 No, EN 175301-801, EN 60664-1, IEC 61984, and UL 1977 ECBT2. E235076, ensuring safety, reliability, and quality conformity.
The connector insert supports a 10A current rating at 600V for demanding industrial applications. It features a 25-contact, 3-row configuration in the Han D series male format. Crimp termination method ensures secure and stable wiring connections.
Polycarbonate contact material provides durability and high insulation. Operates within a wide temperature range of -40°C to 125°C for versatile environments. Designed for PCB mounting with a straight body orientation for ease of installation.
Supports wire sizes from 0.14 mm² up to 2.5 mm². Manufactured in Romania with adherence to stringent international standards. Certified to CSA, EN, IEC, and UL standards for electrical safety and performance.
This Harting Heavy Duty Power Connector Insert 09210253011 is ideal for use in industrial equipment, manufacturing automation, electrical control panels, and other electronic components requiring high reliability and standardized power connectors. Explore more heavy duty power connector solutions and accessories at EnvMart for comprehensive industrial connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector insert supports a voltage rating of 600V, ensuring reliable power conduction for various applications.
This model has a current rating of 10A, suitable for demanding industrial applications.
It features 25 contacts arranged in 3 rows, providing a robust connection setup.
The insert supports a wire size range from 0.14 mm² to 2.5 mm², accommodating various wiring needs.
It utilizes a crimp termination method, ensuring secure and stable wire connections.
The body orientation is straight, designed for standard PCB mount assemblies.
The contacts are made from polycarbonate, providing high insulation and mechanical strength.
It is designed to operate within a temperature range of -40°C to 125°C, suitable for harsh environments.
It is manufactured in Romania, adhering to high-quality standards.
This insert complies with multiple industry standards including CSA-C22.2 No, EN 175301-801, EN 60664-1, IEC 61984, and UL 1977.
The mounting type is PCB, facilitating easy integration into electronic systems.
It is ideal for use in industrial equipment, manufacturing automation, and electrical control panels.
