Block PCB Transformer 0.5VA 230 V ac Primary, 2 x 9 V ac Secondary, Pin Mount VB 0.5/2/9

Free Delivery in India | Lowest Global Shipping Charges

Block PCB Transformer 0.5VA 230 V ac Primary, 2 x 9 V ac Secondary, Pin Mount VB 0.5/2/9

Name: Block PCB Transformer 0.5VA 230 V ac Primary, 2 x 9 V ac Secondary, Pin Mount VB 0.5/2/9
Brand: Block
SKU: 96320
Price: 8.89 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	59%
Length	22mm
Model	VB 0.5/2/9
Depth	22.7mm
Gross Weight	35g
Width	19mm
Mount Type	Pin
Series	VB
Maximum Operating Temperature	70°C
Number of outputs	2
Number of Pins	5
Primary Voltage	230 V ac
Secondary Voltage	2 x 9 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Features pin mounting and 5 pins for secure PCB connection.
Constructed with vacuum epoxy resin moulding to UL94-V0 flame retardant standards.
Designed for high efficiency of 59% with low temperature rise during operation.
Certified to UL 5085-1/-2, CSA 22.2 No.66, ENEC 10 (VDE), and IEC 61558-2-1 standards for safety and reliability.
Operation approved up to 70°C maximum temperature and frequency range 50-60Hz.
Short circuit proof design suitable for reliable electronic applications.
Manufactured in Germany ensuring high quality and industrial-grade performance.

Product Description

Block VB 0.5/2/9 is a high-quality PCB Transformer designed for industrial and electronic applications requiring reliable power isolation and voltage transformation. It provides a power capacity of 0.5VA with a primary voltage input of 230 V alternating current and dual secondary outputs delivering 9 V ac each. This transformer series is inherently short circuit proof, making it ideal for sensitive PCB power supply circuits.

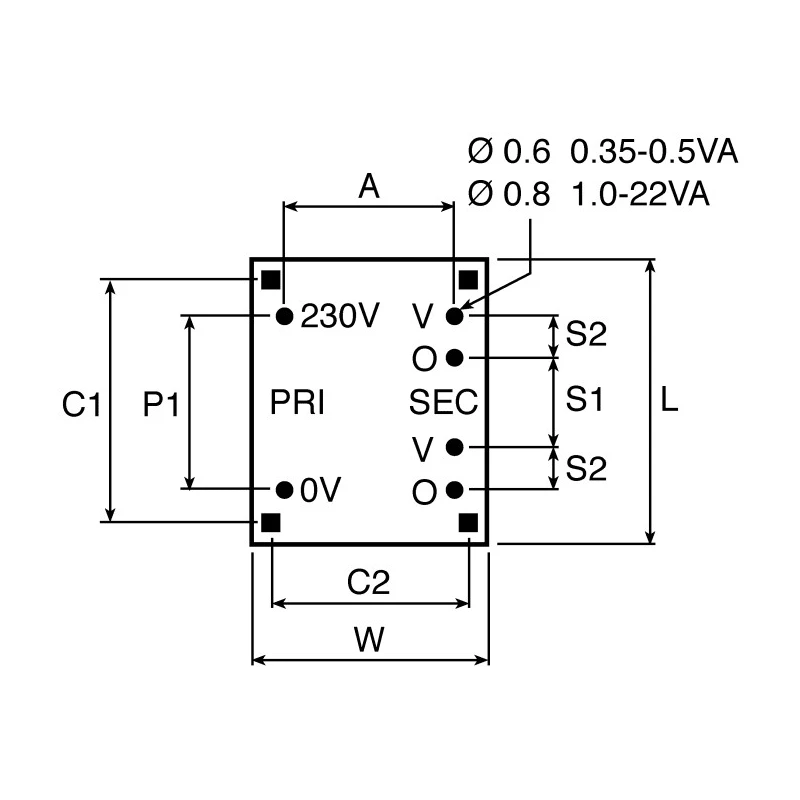

The transformer utilizes vacuum epoxy resin moulding achieving UL94-V0 flame retardant rating and features double section glass fibre reinforced polyamide bobbins for enhanced durability. It has been thoroughly tested to ensure electrical safety and flash impulse resistivity. The compact form factor with dimensions of 22mm length, 19mm width, and 22.7mm depth makes it well suited for PCB mounting with its pin type mount and 5 output pins.

Efficiency stands at 59%, supporting a low temperature rise during continuous operation with a maximum operating temperature of 70°C. It conforms to rigorous international standards including UL 5085-1/-2, CSA 22.2 No.66, ENEC 10 (VDE), EN 61558-2-1, and IEC 61558-2-1. The frequency range supported is 50 to 60 Hz, suitable for global electronic equipment applications.

This transformer is made in Germany, upholding premium manufacturing quality. It is particularly well suited for industrial electronics, laboratory equipment, HVAC control boards, and manufacturing automation requiring compact, efficient, and low-noise power supply transformers.

Features pin mounting and 5 pins for secure PCB connection. Constructed with vacuum epoxy resin moulding to UL94-V0 flame retardant standards. Designed for high efficiency of 59% and low temperature rise during operation.

Certified to UL 5085-1/-2, CSA 22.2 No.66, ENEC 10 (VDE), and IEC 61558-2-1 standards for safety and reliability. Compact dimensions of 22 x 19 x 22.7 mm for space-saving PCB integration. Supports frequency range from 50 to 60 Hz with maximum operating temperature of 70°C.

Inherently short-circuit proof design for durable performance. Manufactured in Germany, ensuring strict quality controls and compliance. Explore more transformers and electronic components at EnvMart for cutting-edge industrial and laboratory applications.
