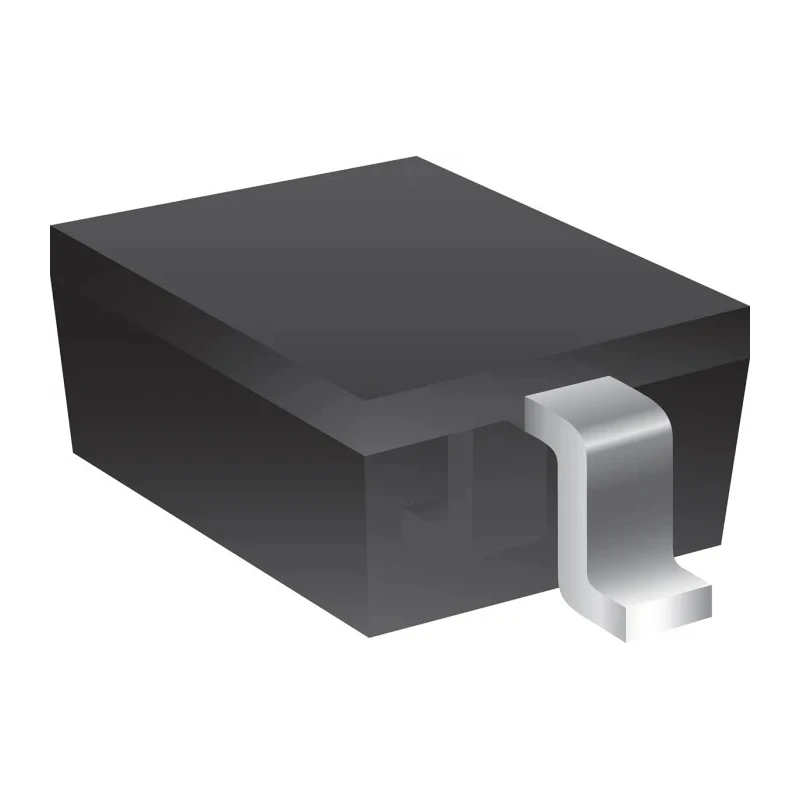

Bourns 1-Element Bi-Directional TVS Diode, Surface Mount, 400 W Peak Pulse Power, 4 V Breakdown, 2-Pin SOD-323 CDSOD323-T03SC

Bourns CDSOD323-T03SC is a 1-element bi-directional transient voltage suppression (TVS) diode designed to protect sensitive electronic circuits from voltage surges and electrostatic discharge events. This diode features a compact surface-mount SOD-323 package with 2 pins, making it ideal for modern, dense PCB layouts in portable communications, computing, and video equipment.

With a peak pulse power dissipation of 400 watts, it effectively clamps transient voltage spikes to a clamping voltage of 8 volts, activating at a minimum breakdown voltage of 4 volts. This ensures reliable protection of sensitive components during transient voltage events. The diode supports a wide operating temperature range from -55°C to 150°C, suitable for use in various industrial and commercial environments.

The device is built to handle a maximum peak pulse current of 43 amperes, capable of absorbing high surge currents. Low reverse leakage current of 125 microamperes minimizes unnecessary power consumption during normal operation.

The flat configuration and small size reduce the risk of component movement during automated PCB assembly processes, enabling easy handling with standard pick-and-place equipment. Compliance with RoHS directives ensures environmental safety.

This bi-directional TVS diode is particularly suited for portable communications, computing, and video equipment to enhance device reliability by suppressing voltage transients. It finds application in industrial hardware protection, telecommunications infrastructure, and consumer electronics requiring surge protection.

Offers bi-directional transient voltage suppression for surge and electrostatic discharge protection. Compact SOD-323 package with 2 pins suitable for PCB mounting. Peak pulse power dissipation of 400 watts ensures robust protection.

Minimum breakdown voltage of 4 volts with clamping voltage at 8 volts for effective transient control. Operates reliably from -55°C up to 150°C for varied environmental conditions. Maximum peak pulse current rated at 43 amperes for high surge current capability.

Low maximum reverse leakage current of 125 microamperes to minimize power loss. Flat semiconductor chip design minimizes roll away and is compatible with pick-and-place equipment. Ideal for portable communications, computing, and video equipment manufacturers requiring compact surge protection.

Compliant with RoHS standards and includes ESD protection suitable for sensitive electronic equipment. Browse more TVS Diodes and protective semiconductors at EnvMart for industrial, commercial, and laboratory electronics design applications.
