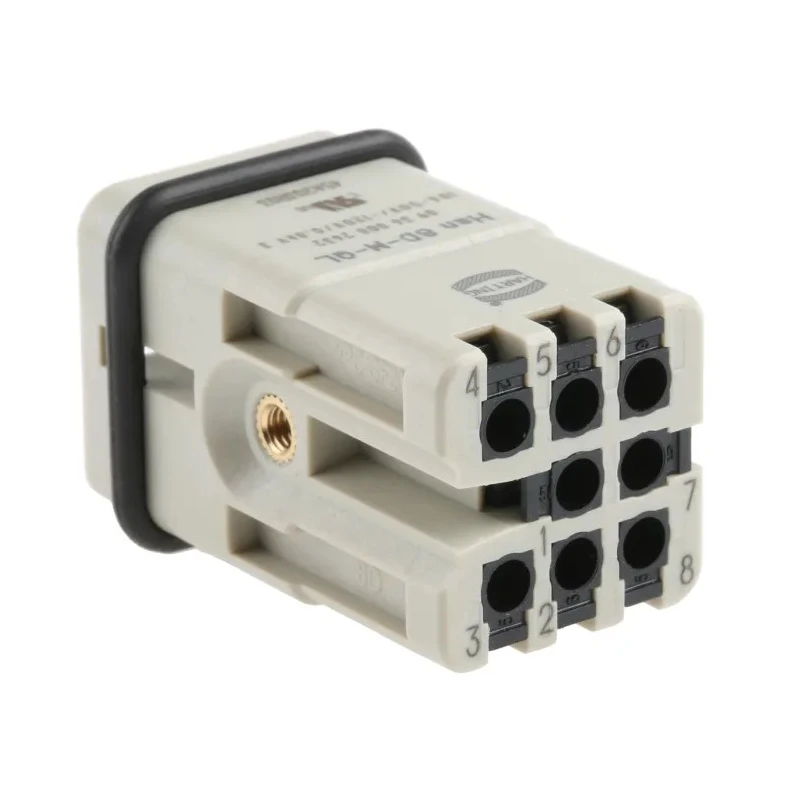

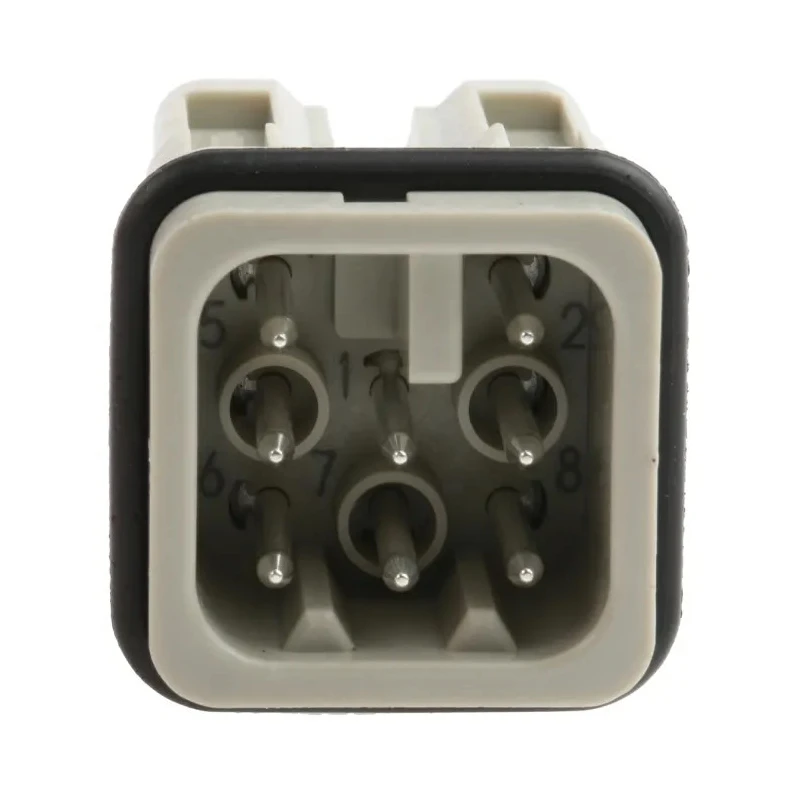

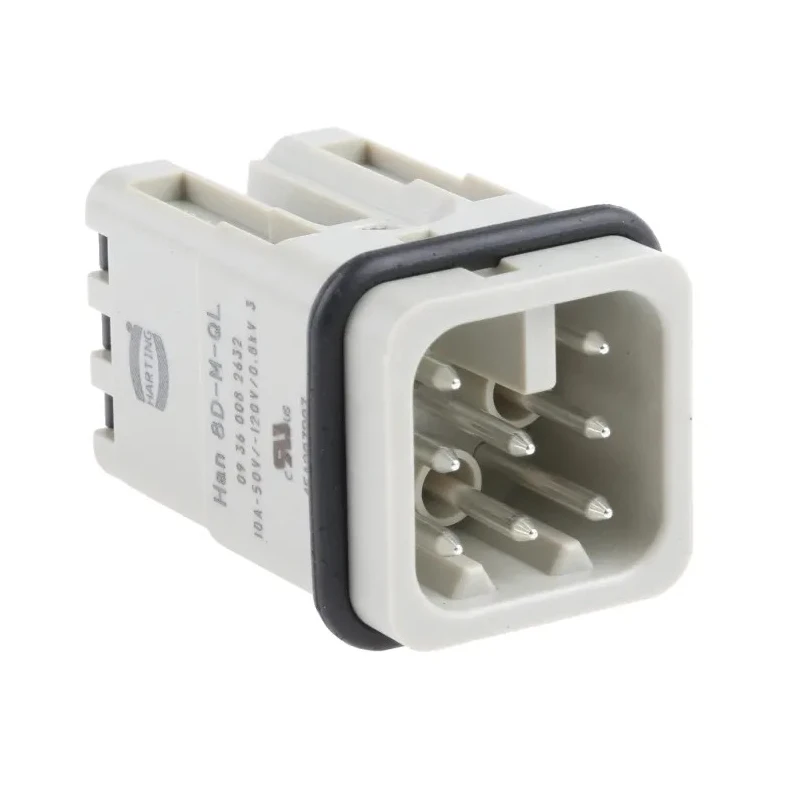

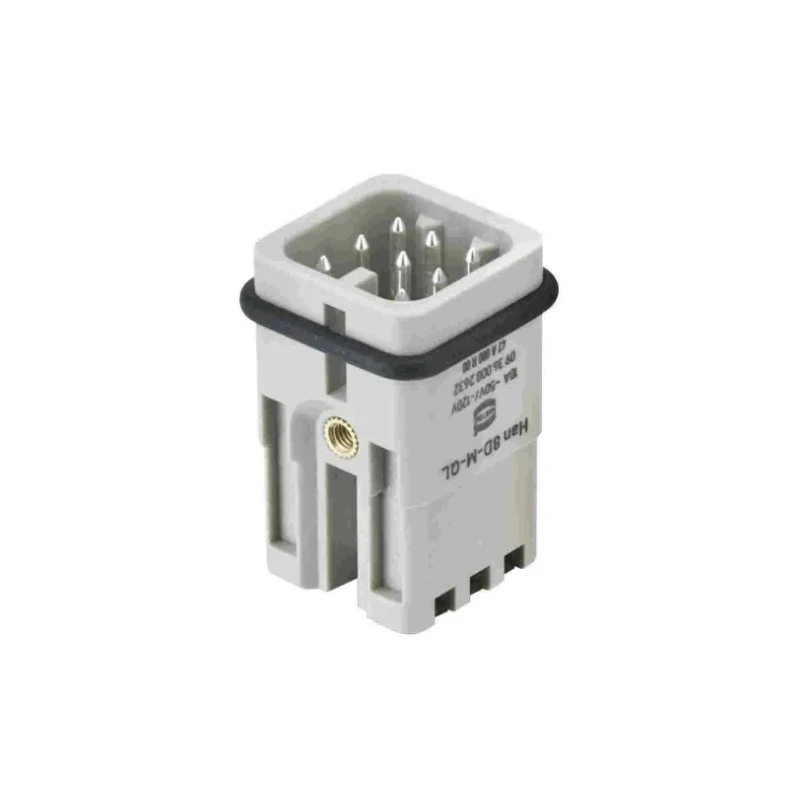

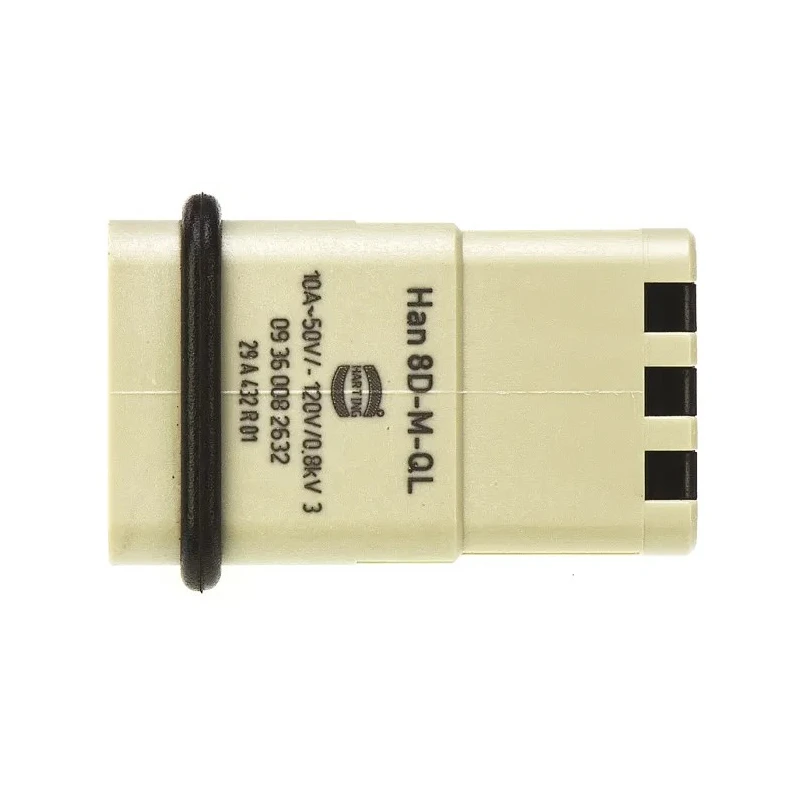

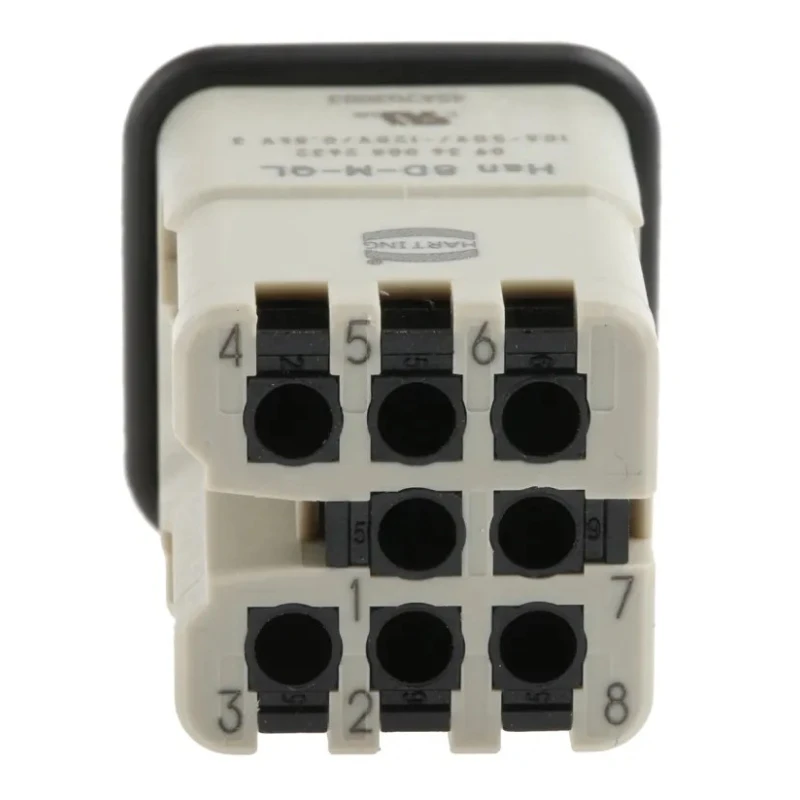

HARTING Heavy Duty Power Connector Insert 10A 120V Han D Series Male 8 Contacts 09360082632

Name: HARTING Heavy Duty Power Connector Insert 10A 120V Han D Series Male 8 Contacts 09360082632
Brand: HARTING
SKU: 96064
Price: 35.31 USD
Availability: InStock



Category Heavy Duty Power Connector Insert Brand HARTING Condition New

Specifications

Country of Origin	India
Voltage	120V
Brand	HARTING
Orientation	Straight
IP Rating	IP65
Mount Type	Cable
Contact Material	Copper Alloy
Current Rating	10A
Series	Han D
Sub Type	Quick Lock Insert
Number of Rows	3
For Use With	Heavy Duty Power Connector
Standards/Approvals	IEC 60664-1
Pole Format	8
Contact Plating	Silver
Number of Contacts	8
Connector Gender	Male
Minimum Wire Size mm²	0.25mm²
Maximum Wire Size mm²	1.5mm²

Key Features

Rated for 10A current and 120V voltage, suitable for moderate power circuits.
Han D Series cable-mounted male insert with quick lock for secure and fast assembly.
Features 8 silver-plated copper alloy contacts arranged in 3 rows for reliable conductivity.
Accommodates wire sizes from 0.25 mm² up to 1.5 mm² for versatile cable terminations.
Designed with IP65 rating for protection against dust ingress and water jets.
Meets insulation coordination requirements as per IEC 60664-1 standard.
Used in automation control cabinets, manufacturing machinery wiring, and portable equipment.
Straight orientation enables inline cable routing and easy mating.

Product Description

HARTING 09360082632 is a Heavy Duty Power Connector Insert designed for industrial electrical systems requiring robust and secure power transmission at 10 amperes and 120 volts. This Han D Series male quick-lock insert is cable-mounted and provides reliable multi-contact power distribution within heavy duty power connector housings.

The insert features 8 contacts arranged in 3 rows, made of silver-plated copper alloy to ensure low resistance and excellent conductivity. It supports termination of wire cross-sections ranging from 0.25 mm² to 1.5 mm², accommodating typical power and control cables in automation and manufacturing environments.

Its IP65 rating protects against dust ingress and water jets, making it suitable for use in harsh, dusty, or wet industrial conditions. Compliance with IEC 60664-1 insulation standards ensures safe clearance and creepage distances for reliable operation.

This component is ideal for applications such as automation control cabinets that require compact multi-contact power distribution, machinery wiring on production lines, portable equipment demanding frequent connect and disconnect operations, and test rigs needing dependable eight-contact connectivity. The straight contact orientation aligns with inline cable routing requirements and facilitates easy mating with compatible connector housings.

Users are advised that these connectors should not be mated or unmated under electrical load, and connections must be properly polarized to avoid incorrect mating. Rated up to 10 amps and 120 volts for moderate current power applications.

Eight silver-plated copper alloy contacts arranged in three rows. IP65 protection ensures durability in dusty or wet environments. Accepts wire sizes between 0.25 mm² and 1.5 mm² for versatile use. Complies with IEC 60664-1 insulation coordination standards.

Quick lock mounting type enables fast and secure assembly. Suitable for industrial automation, manufacturing machinery, portable equipment, and test rigs. Designed for cable mounting within heavy duty connector housings.

Explore more heavy duty power connector solutions on EnvMart for your industrial and manufacturing needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This connector insert is rated for 10A current and 120V voltage, making it suitable for moderate power circuits.

It features 8 contacts arranged in 3 rows, which are made of silver-plated copper alloy for reliable conductivity.

This model accommodates wire sizes ranging from 0.25 mm² up to 1.5 mm², allowing for versatile cable terminations.

The connector insert has an IP65 rating, providing protection against dust ingress and water jets, suitable for harsh environments.

It complies with the IEC 60664-1 insulation coordination standards, ensuring safe clearance and creepage distances for reliable operation.

This model uses a cable mounting type and features a quick lock mechanism for secure and fast assembly.

The contacts are arranged in a straight orientation, which facilitates inline cable routing and easy mating with compatible housings.

It is suitable for applications such as automation control cabinets, manufacturing machinery wiring, portable equipment, and test rigs.

The contacts are made of silver-plated copper alloy, which ensures low resistance and excellent conductivity.

The connector features 8 contacts arranged in 3 rows, designed for reliable multi-contact power distribution.

Users are advised not to mate or unmate the connectors under electrical load and to ensure connections are properly polarized to avoid incorrect mating.

The country of origin for this connector insert is India.
