HARTING Heavy Duty Power Connector Insert Female 4 Contacts 80A 830V Han K Series 09380062711

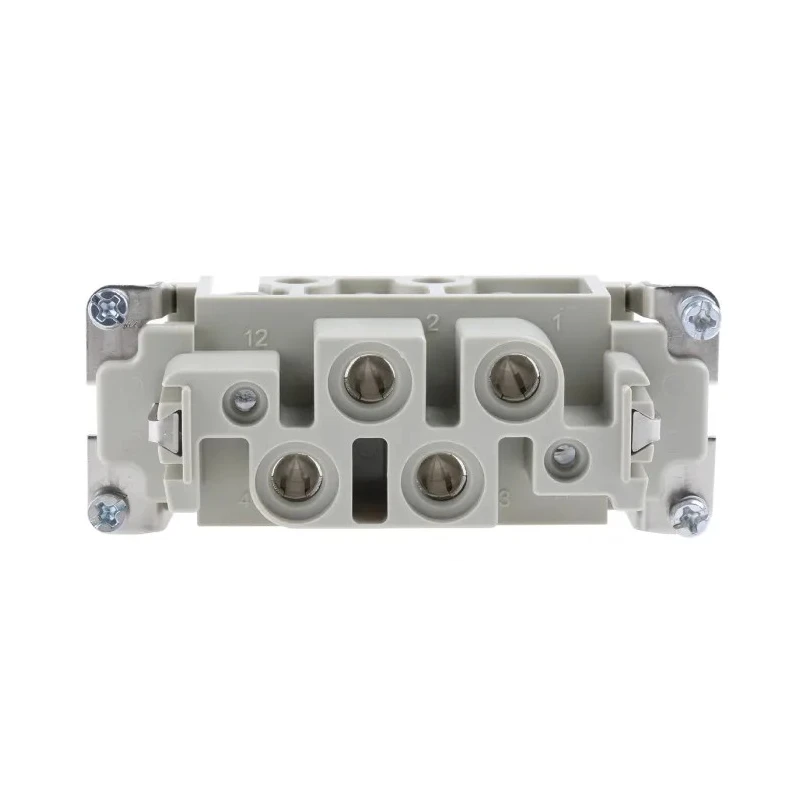

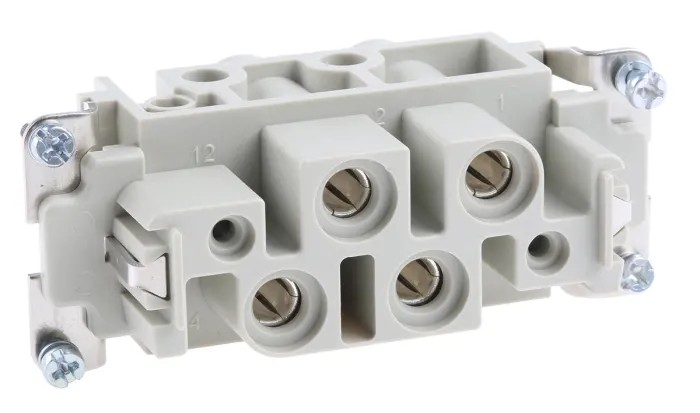

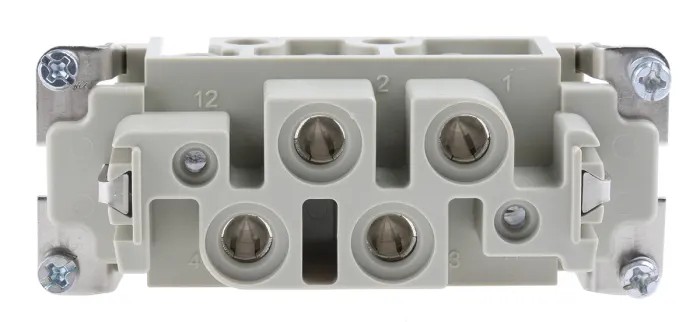

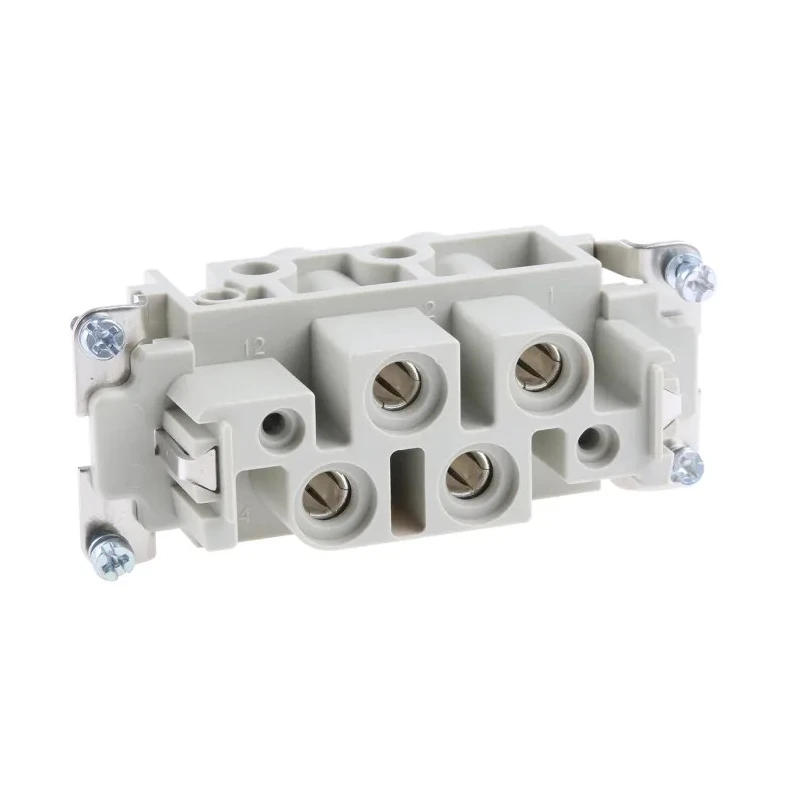

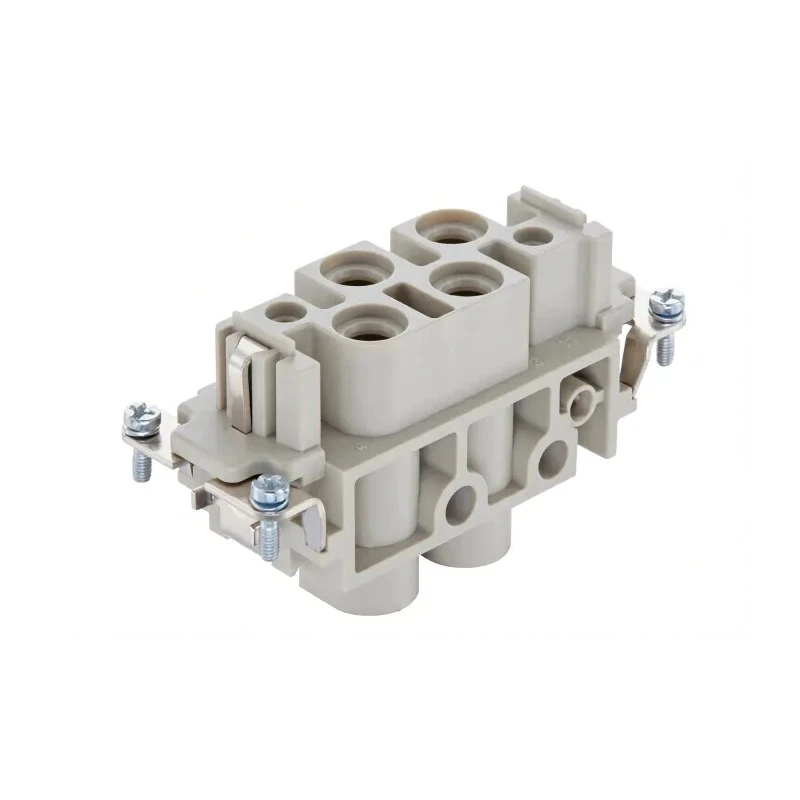

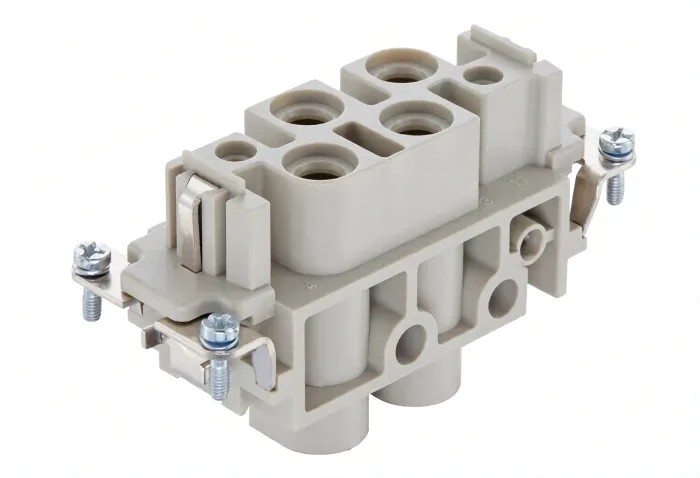

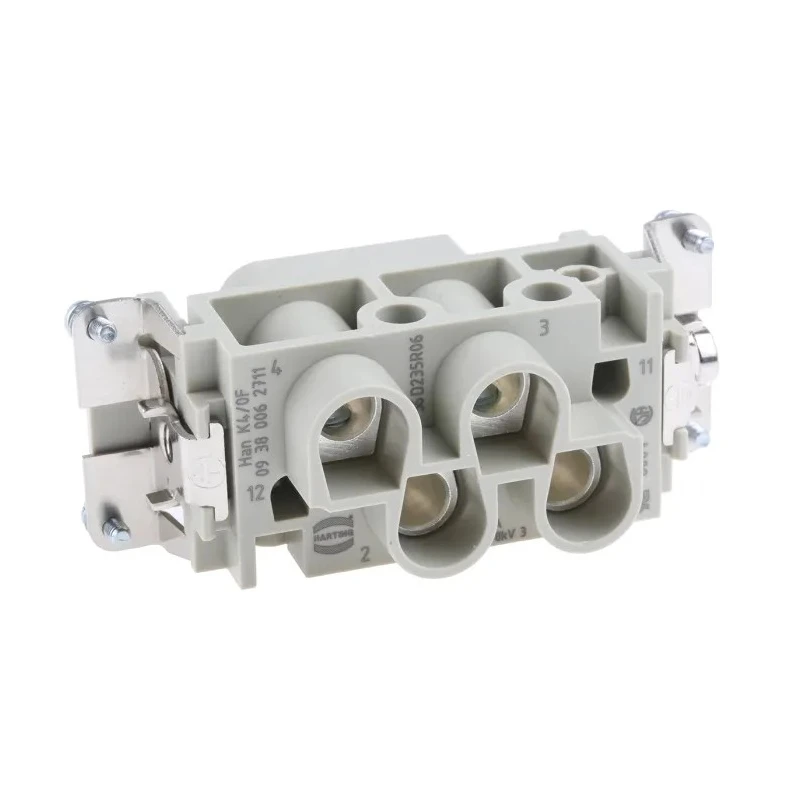

HARTING 09380062711 Heavy Duty Power Connector Insert is a female, straight cable-mounted connector insert with four contacts, designed for high-current industrial power applications. Rated at 80 amps and 830 volts, this insert is part of the Han K series, offering exceptional performance in industrial automation, machinery power feeds, transport systems, and electrical assembly rigs.

The connector is constructed with silver-plated copper alloy contacts to provide low contact resistance and high durability, supporting up to 500 mating cycles for consistent reliability. It accepts conductors sized between 1.5 mm² and 16 mm², enabling versatile cable configurations. The screw termination system with recommended tightening torques ensures safe and secure electrical connections.

This heavy-duty power connector insert operates effectively across a broad temperature range from -40°C to +125°C, suitable for harsh industrial conditions. It offers insulation resistance exceeding 10^10 ohms and a rated impulse voltage of 8 kV to maintain excellent dielectric integrity.

The insert's design includes a protective-earth contact, enabling safe earthing in the four-contact arrangement, which is essential for reliable industrial safety practices. Installation is facilitated using recommended slotted or PH2 screwdrivers matching terminal screws.

Typical applications encompass power distribution within factory automation cabinets, connection panels in industrial machinery, transport system power feeds, temporary power supplies for testing equipment, and supply lines in electrical or mechanical assembly setups, reflecting its versatile industrial utility.

Rated current capacity of 80 amps ensures suitability for high-power circuits. Voltage rating up to 830 volts accommodates demanding industrial environments. Four silver-plated copper alloy contacts arranged in two rows provide reliable conductivity.

Compatible with heavy-duty connector housings featuring Han K series connectors. Accepts conductor wire sizes from 1.5 mm² to 16 mm² for flexible wiring options. Straight female cable mount design enables secure and efficient installation.

Contact plating of silver reduces resistance and enhances durability. Operating temperature range from -40°C to +125°C supports wide thermal endurance. Includes protective-earth contact for secure earthing within the four-contact configuration.
