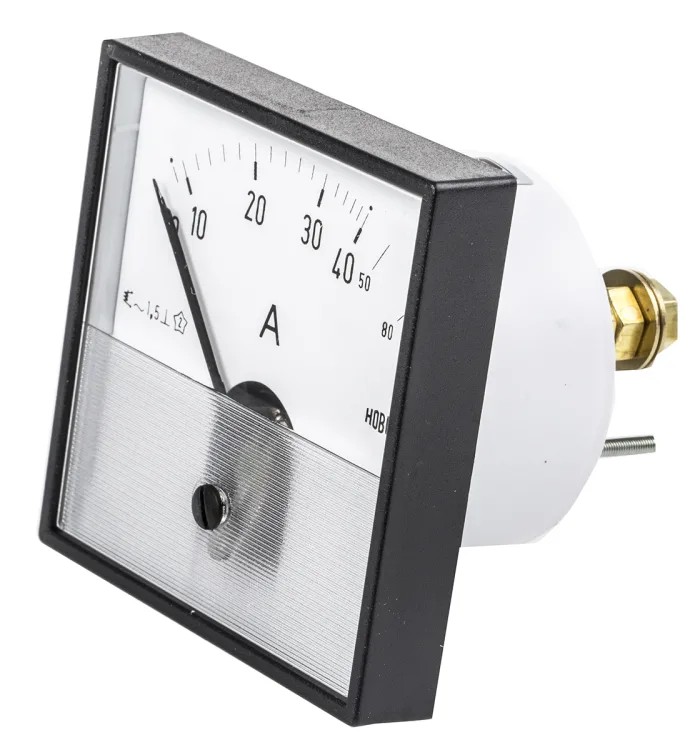

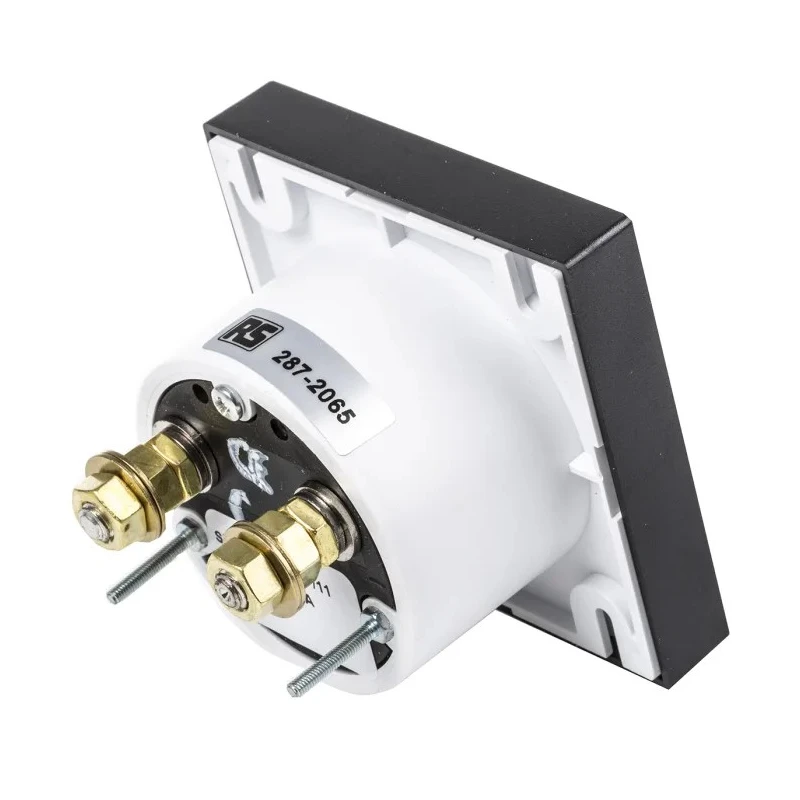

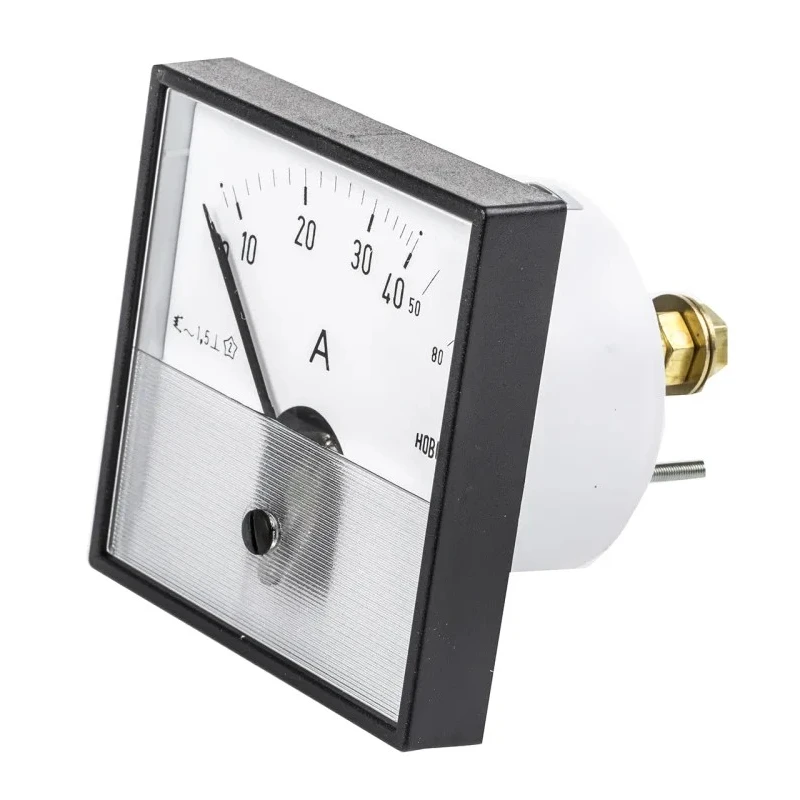

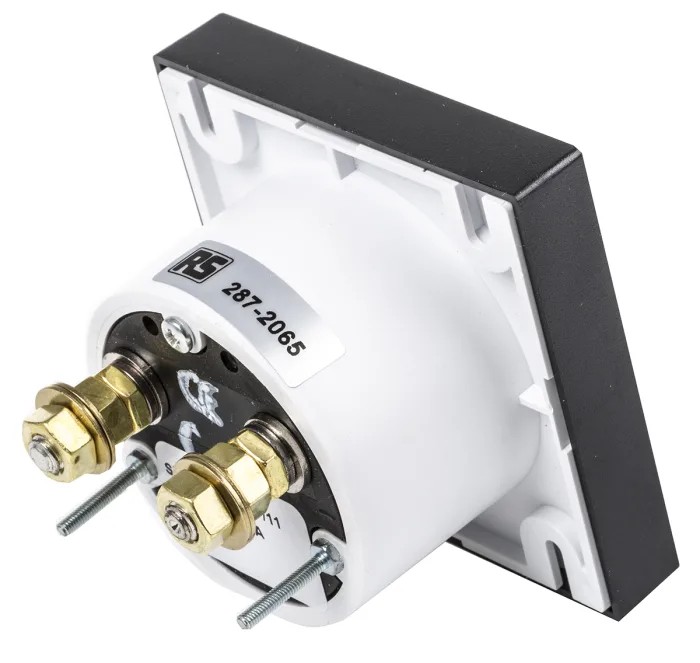

HOBUT Analogue Panel Ammeter 80 A AC Moving Iron, 72 mm x 72 mm PD72MIS40A2/1-001
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | HOBUT |
| Model | PD72MIS40A2/1-001 |
| Depth | 30.5mm |
| Maximum Operating Temperature | 40°C |
| Current Type | AC |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | UL 94 V-0, BS 89 IEC 51 |
| Cutout Height | 72mm |
| Cutout Width | 72mm |
| Maximum Measurement | 80 A |
| Moving Element | Moving Iron |
| Maximum Ampere Value | 80 A |
Key Features
- Utilizes moving iron as the moving element for reliable AC current detection.
- Compact 72 mm x 72 mm cutout size suitable for DIN standard panel mounting.
- Supports maximum operating temperature up to 40°C and minimum down to -25°C.
- Features a flame retardant case complying with UL 94 V-0 standards.
- Protection class IP52 at the front for dust and water resistance.
- Designed with a horizontal 90° scale for easy reading within industrial control panels.
- Overload capacity is twice the rated current ensuring safe operation.
- Fixing done via a single hole with a ‘U’ clamp and anti-rotation pin for secure installation.
Product Description
HOBUT PD72MIS40A2/1-001 Analogue Panel Ammeter 80 A AC features a moving iron mechanism for accurate alternating current measurement, presented in a compact 72 mm x 72 mm DIN panel meter format suitable for automation and control environments.
This ammeter withstands operating temperatures ranging from -25°C to 40°C, making it fit for various industrial settings including electrical, automation, and process control applications.
The horizontal 90° scale integrated into the meter improves user readability and precision. The unit complies with UL 94 V-0 fire retardant standards and comes with IP52 front panel protection, enhancing durability and safety.
Installation is streamlined by a single-hole fixing system with a ‘U’ clamp and anti-rotation pin, ensuring firm placement in control panels. The device is designed to tolerate overloads up to twice the nominal current rating, supporting a maximum of 80 A AC measurement.
Uses moving iron moving element technology for AC measurement. Dimensions: 72 mm height x 72 mm width x 30.5 mm depth. Maximum operating temperature 40°C and minimum -25°C. Flame retardant housing to UL 94 V-0 standard. Protection class IP52 for environmental resistance.
Fixing via single hole and U clamp with anti-rotation pin supplied. Maximum current rating of 80 A AC with accurate scale markings. Manufactured under BS 89 IEC 51 standard for accuracy class 1.5.
This analogue panel ammeter is ideal for use in industrial machinery, electrical panels, HVAC systems, and process control instrumentation where reliable AC current monitoring is essential. Its UK origin confirms adherence to stringent manufacturing quality and standards.
Carry out your industrial control system upgrades with this robust HOBUT Panel Meter. Explore additional measuring instruments and automation components available in the EnvMart Industrial Automation Systems category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current measurement of this ammeter is 80 A AC.
The dimensions of this model are 72 mm in height, 72 mm in width, and 30.5 mm in depth.
It operates within a temperature range of -25°C to 40°C.
This ammeter utilizes a moving iron mechanism for accurate AC current measurement.
The front panel has a protection class of IP52, providing resistance to dust and water.
Installation is done via a single hole with a 'U' clamp and an anti-rotation pin for secure placement.
It complies with UL 94 V-0 fire retardant standards and BS 89 IEC 51 for accuracy class 1.5.
The display features a horizontal 90° scale for improved readability.
The overload capacity is twice the rated current, allowing for safe operation up to 160 A.
This ammeter is manufactured in the United Kingdom, ensuring adherence to stringent quality standards.
It is suitable for use in industrial machinery, electrical panels, HVAC systems, and process control instrumentation.
The cutout size for panel mounting is 72 mm x 72 mm, suitable for DIN standard installations.
