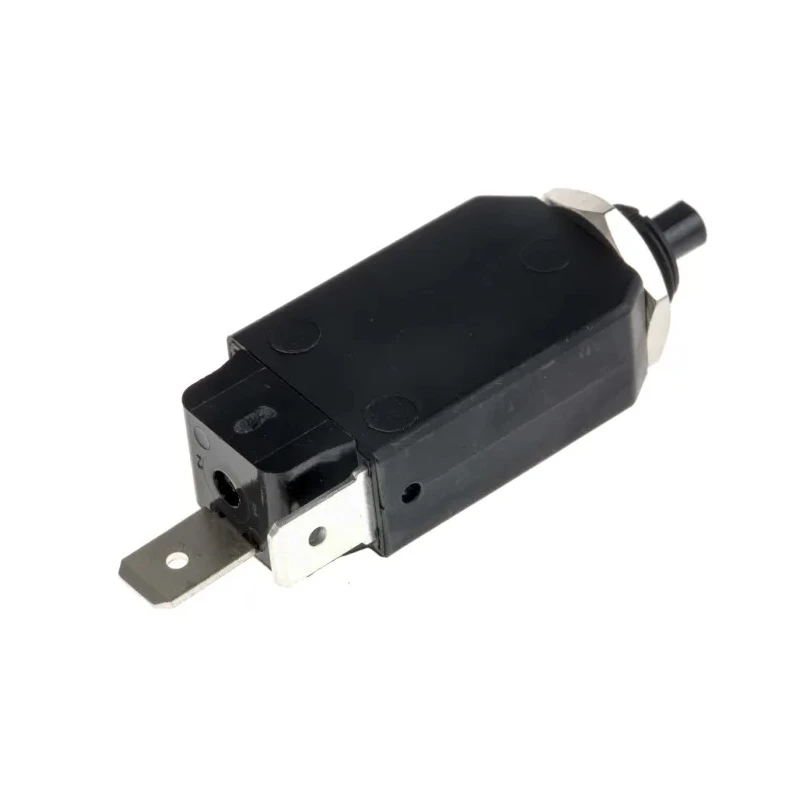

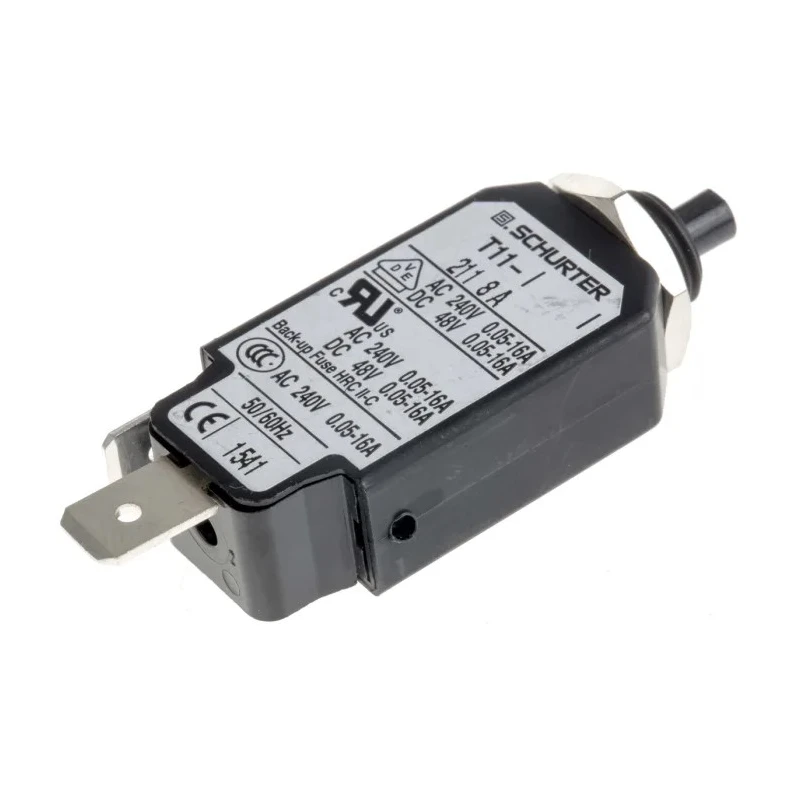

Schurter Thermal Circuit Breaker 8A Current Rating 1-Pole Panel Mount 240V AC 48V DC T11 4400.0015
Specifications
| Country of Origin | India |
|---|---|
| Range | T11 |
| Brand | Schurter |
| Height | 50.2mm |
| Width | 15.2mm |
| Mount Type | Panel |
| Current Rating | 8A |
| Series | T11 |
| Terminal type | Threaded |
| Breaking Capacity | 6.5A |
| Number of Poles | 1 |
| Standards/Approvals | RoHS |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 48V dc |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Push Button |
| Mount Hole Size | 13.6 mm |
| Break Time | Medium |
| Schurter T11 T11 Thermal Circuit Breaker -, 8A Current Rating 1-Pole, PanelBrand | Schurter |
Key Features
- The circuit breaker features a thermal tripping mechanism with a push button reset actuator.
- It offers a compact panel mount design with a width of 15.2 mm and height of 50.2 mm.
- The device includes threaded terminals and snap-in mounting for ease of installation.
- The breaking capacity is 6.5 amps with a medium break time suitable for general industrial and household applications.
- The breaker features positive trip-free release and bimetallic element triggering for reliability.
- It has an insulation resistance exceeding 100 megaohms, ensuring electrical safety.
- The Schurter T11 breaker is largely insensitive to short start-up surges and resistant to shock and vibration.
- It is ROHS compliant and certified to international standards including UL, CSA, and VDE.
Product Description
Schurter 4400.0015 Thermal Circuit Breaker is a new, single-pole thermal circuit breaker designed for panel mounting in electrical applications. It operates with an 8 ampere current rating at 240 volts AC and 48 volts DC, providing reliable trip protection via a thermal mechanism.
The device features a compact form factor with dimensions of 15.2 mm in width and 50.2 mm in height. Installation is simplified by the snap-in mount and threaded terminals, allowing secure and efficient panel integration.
Operating on a thermal tripping mechanism triggered by a bimetallic element, the breaker ensures positively trip-free release, making it largely insensitive to short start-up surges. Its medium break time and breaking capacity of 6.5 amps suit a variety of applications, ranging from household equipment to industrial power tools.
The circuit breaker maintains insulation resistance greater than 100 megaohms, enhancing durability and safety. Its design also ensures resistance to shock and vibration, important for reliable operation in demanding environments.
This Schurter T11 series breaker complies with ROHS standards and holds certifications such as UL, CSA, and VDE approvals, marking its conformance to international quality and safety benchmarks.
The circuit breaker features a thermal tripping mechanism with a push button reset actuator. Compact panel mounting with snap-in design and threaded terminals for secure installation. Rated current of 8 amperes and voltage ratings of 240V AC and 48V DC.
Breaking capacity of 6.5 amps with medium break time for versatile application. Positive trip-free release triggered by bimetallic element ensures operational reliability. Insulation resistance greater than 100 megaohms for enhanced safety.
Certified to international standards including UL, CSA, VDE, and ROHS compliance.
This Schurter thermal circuit breaker is ideal for use in household electrical equipment, industrial applications, power tools, and uninterruptible power supplies. Its robust construction and certifications make it a reliable choice for a variety of electrical protection needs.
Explore more quality Circuit Breakers and electrical components at EnvMart to enhance your electrical system safety and efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This thermal circuit breaker has a current rating of 8 amperes.
It operates at a rated voltage of 240V AC and 48V DC.
The breaking capacity of this unit is 6.5 amps.
This model features a thermal tripping mechanism triggered by a bimetallic element.
It is designed for panel mounting with a snap-in design and includes threaded terminals for secure installation.
The dimensions are 15.2 mm in width and 50.2 mm in height.
It features a push button reset actuator.
Yes, it is RoHS compliant and certified to international standards including UL, CSA, and VDE.
The break time is classified as medium, suitable for various applications.
It is suitable for use in household electrical equipment, industrial applications, power tools, and uninterruptible power supplies.
The insulation resistance exceeds 100 megaohms, enhancing electrical safety.
The country of origin for this thermal circuit breaker is India.
