| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | VAL-U-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | VAL-U-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |

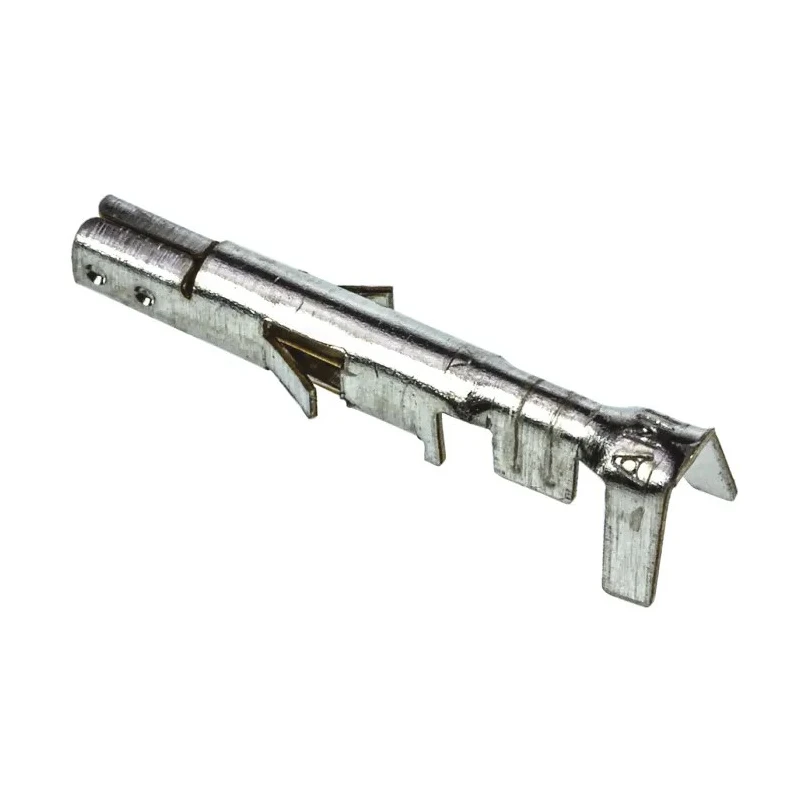

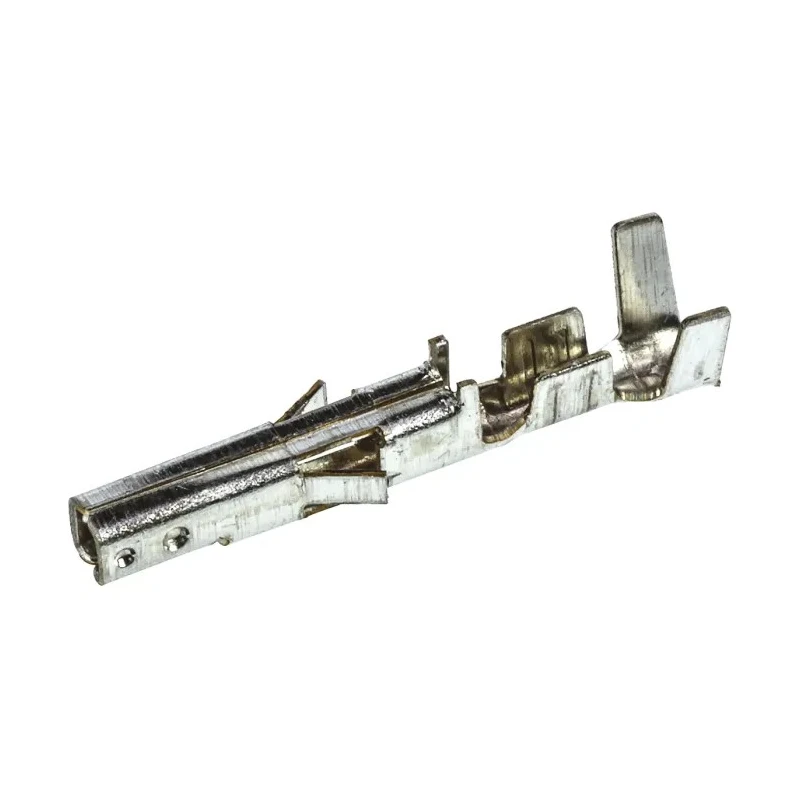

TE Connectivity 1586317-1 Female Crimp Terminal VAL-U-LOK Series is engineered for electronic components and power connectors, optimized for 26 AWG minimum to 22 AWG maximum wire sizes with a current rating of 9 amperes. This crimp terminal is tailored for use within VAL-U-LOK connector housings, offering excellent electrical performance and mechanical reliability.
Manufactured from high-quality brass and plated with tin, it ensures low contact resistance and protection against oxidation. Suitable for industrial and laboratory wiring applications, it operates across a broad temperature range from -40°C to 105°C, making it ideal for harsh environments and demanding electrical conditions.
The crimp termination ensures secure wire attachment with high mechanical strength, important for manufacturing, automation, and maintenance tasks within electronics assembly and control systems.
Technical advantages include a maximum contact resistance of 10 milliohms, enhancing signal integrity and reducing power loss. This product complies with industrial quality standards but does not carry specific certifications by default.
The crimp terminal is compatible with VAL-U-LOK connector housing systems. Constructed using brass contact material for reliable conductivity. Contacts are plated with tin to enhance corrosion resistance. Suitable for wire sizes ranging from 0.1mm² (26 AWG) to 0.3mm² (22 AWG).
Maximum operating temperature is 105°C, withstanding harsh industrial environments. Minimum operating temperature reaches -40°C, enabling broad temperature range usage. Has a maximum contact resistance of 10 milliohms ensuring efficient electrical connection.
Termination type is crimp, providing a secure and robust connection.
This terminal is a standard choice for users in electronics manufacturing, assembly, and repair industry sectors requiring dependable Crimp Contacts for printed circuit boards and wire harnesses.
Explore the Electronics Components section on EnvMart for compatible connectors and accessories.
