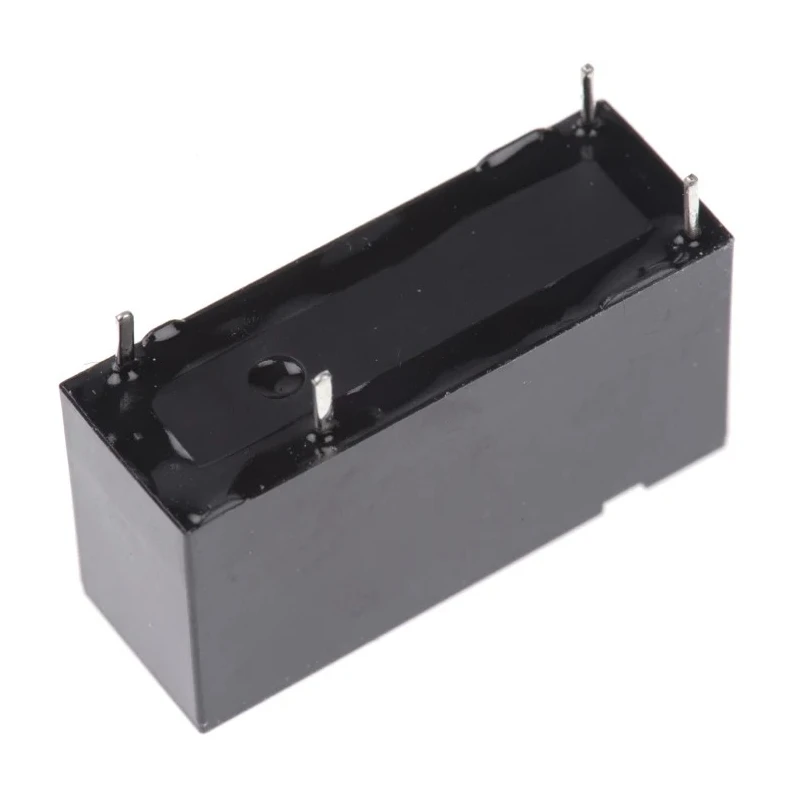

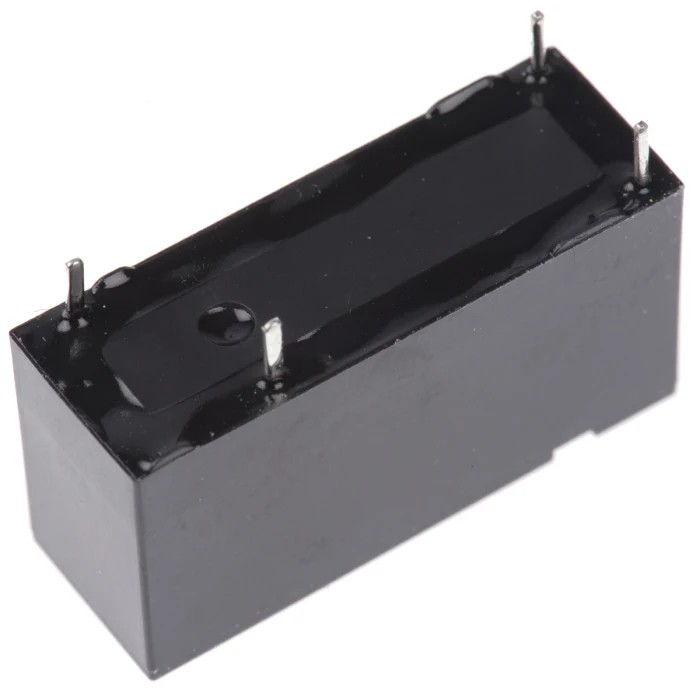

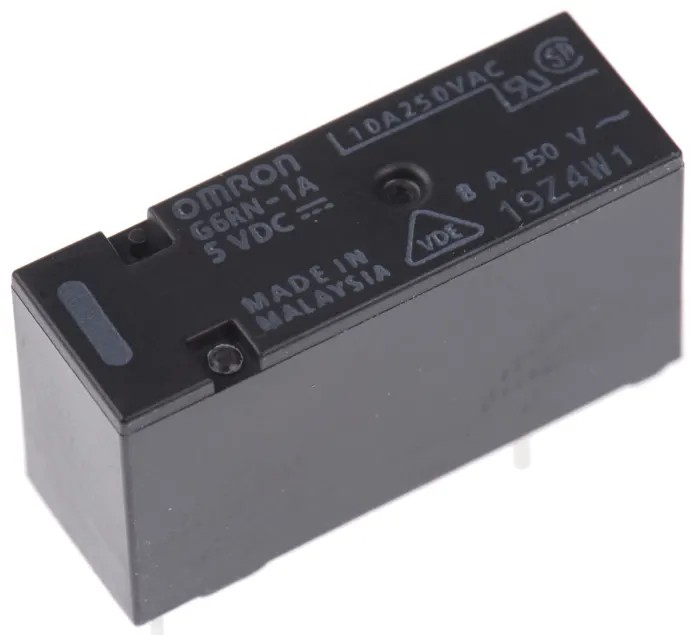

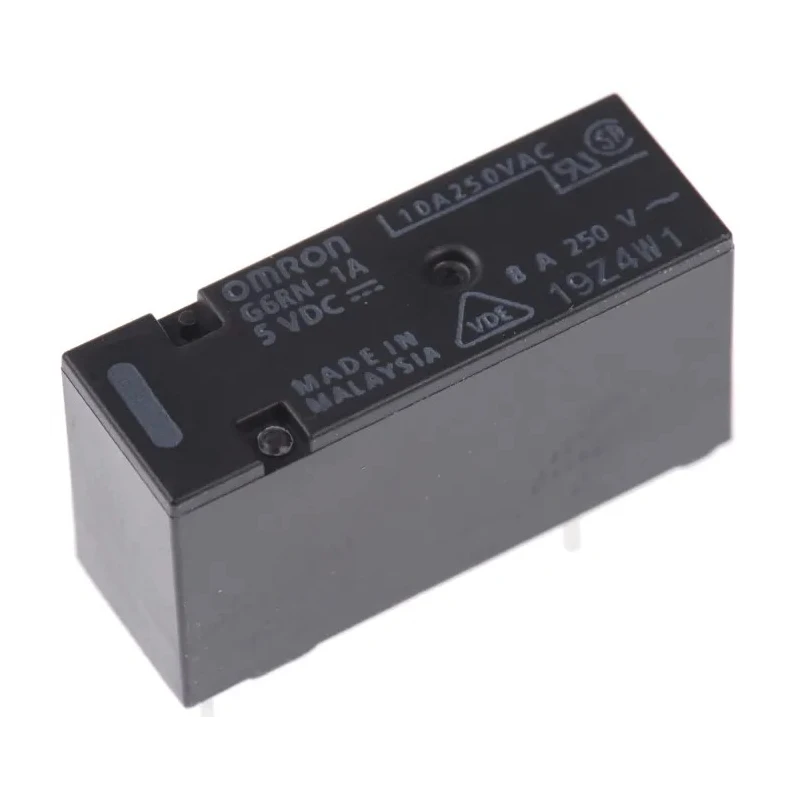

Omron PCB Power Relay 5V DC Coil 8A Switching Current SPST G6RN-1A 5DC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Operating Temperature | -40 → +85°C |
| Height | 15.3mm |
| Length | 28.8mm |
| Model | G6RN-1A 5DC |
| Width | 10.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6RN |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Mechanical Life | 10 x 106 |
| Coil Resistance | 114Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 220mW |
| Minimum contact load | 100mA @ 5mVdc |
| OMRON G6R-1A PCB RLY 5VDCBrand | NEUTRAL |
Key Features
- Equipped with a 5V DC coil voltage for efficient control.
- Features SPST contact configuration suitable for single-pole switching.
- Supports switching currents up to 8 amperes for reliable power handling.
- Gold-plated contacts provide low resistance and reduce contact corrosion.
- Designed for operating temperatures from -40°C to 85°C for versatile environmental use.
- Minimum contact load as low as 100mA at 5mV DC ensures sensitivity.
- Coil resistance is 114 ohms with a coil power consumption of 220mW for energy efficiency.
- Relay supports switching AC voltage up to 250V and DC voltage up to 30V.
Product Description
Omron G6RN-1A 5DC PCB Power Relay is a compact, reliable relay designed for use in electrical and automation applications. It features a 5V DC coil voltage and supports switching currents up to 8 amperes with a single-pole, single-throw (SPST) contact arrangement, ideal for circuit control on printed circuit boards.
This relay belongs to the G6RN series known for full sealing, ensuring durability and resistance to environmental factors. The relay's gold-plated contacts provide excellent conductivity and corrosion resistance, contributing to a contact resistance of only 100 milliohms. Operating temperature ranges from -40°C to 85°C, making it suitable for various industrial and commercial environments.

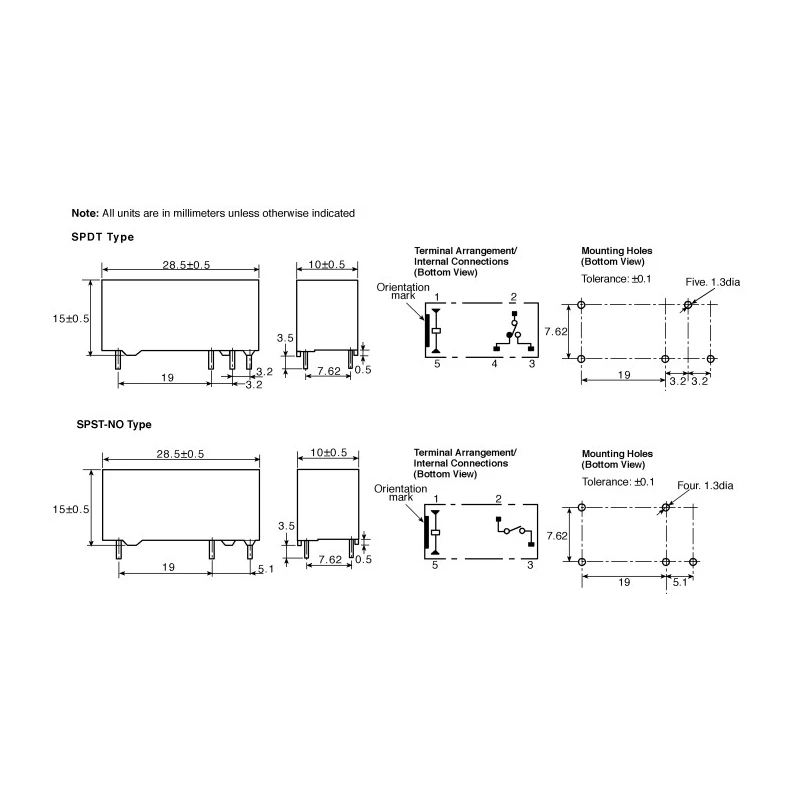

The dimensions of the relay (28.8mm length, 10.5mm width, and 15.3mm height) allow for space-efficient PCB mounting. Coil resistance is 114 ohms, consuming just 220 milliwatts, which ensures low power usage.
Additional features include a minimum contact load of 100mA at 5mV DC, enabling precise control in sensitive circuits. The relay can switch AC voltages up to 250V and DC voltages up to 30V, providing versatility for different circuit requirements. Mechanical life expectancy reaches 10 million cycles, ensuring long-term reliability in applications such as industrial automation, instrumentation, HVAC controls, and telecommunications.
Equipped with 5V DC coil for efficient relay actuation. Gold-plated contacts reduce oxidation and maintain low contact resistance. Designed for PCB mounting with solder terminal types. Robust operation from -40°C to 85°C suits demanding environments.
SPST contact configuration suitable for various switching applications. High electrical capability with 8A switching current and 2kVA switching power. Fully sealed design prevents dust and moisture ingress. Long mechanical lifespan of 10 million operations ensures reliability.
Compact dimensions enable high-density PCB integration.
Omron G6RN series power relays are trusted components in electronics and electrical systems across industrial, laboratory, HVAC, and manufacturing sectors. Explore more Power Relays and related products in EnvMart’s Electronics & Electricals category for advanced automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of up to 8 amperes, making it suitable for various power handling applications.
It operates with a coil voltage of 5V DC, which is efficient for relay actuation.
The relay measures 28.8mm in length, 10.5mm in width, and 15.3mm in height, allowing for space-efficient PCB mounting.
It can operate in temperatures ranging from -40°C to +85°C, making it versatile for various environments.
This model features a single-pole, single-throw (SPST) contact configuration suitable for single-pole switching applications.
The minimum contact load is 100mA at 5mV DC, which ensures sensitivity in circuit control.
The coil resistance is 114 ohms, with a coil power consumption of 220mW, ensuring energy efficiency.
It can switch AC voltages up to 250V and DC voltages up to 30V, providing versatility for different circuit requirements.
The mechanical life expectancy reaches 10 million cycles, ensuring long-term reliability in various applications.
The contacts are made of gold-plated material, which provides low resistance and reduces contact corrosion.
It is RoHS compliant, ensuring it meets environmental and safety standards.
This relay is designed for PCB mounting with solder terminal types, facilitating easy integration into circuits.
