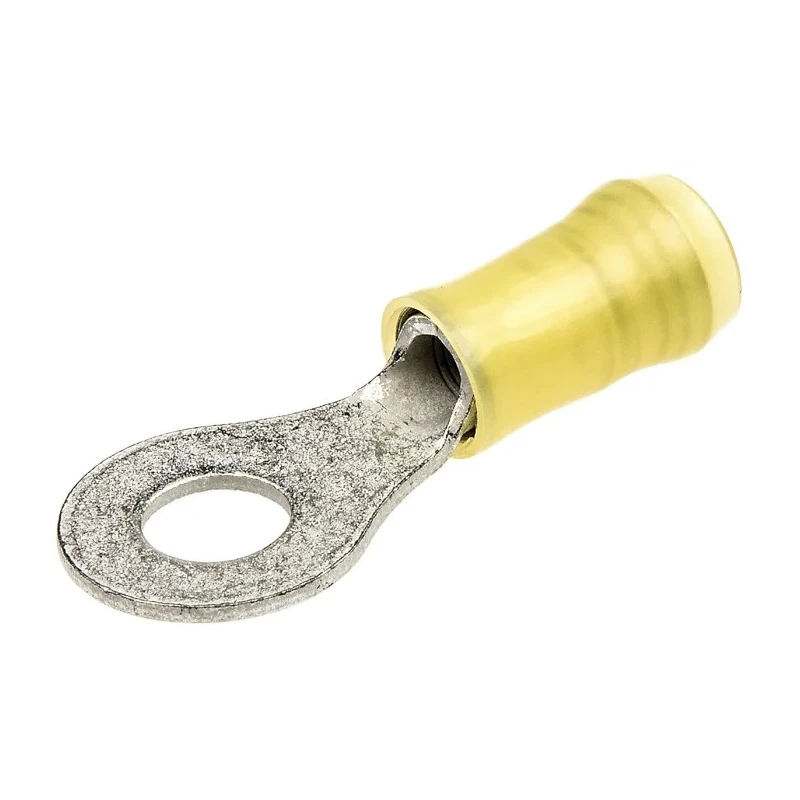

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 12 AWG 10 AWG Wire Size Yellow 130205
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| Model | 130205 |
| Insulation | Insulated |
| Overall Length | 33mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 13.5mm |
| Inner Ring Diameter | 6.35mm |
| Stud Size | M6 |
Key Features
- Constructed with a high conductivity copper body ensuring reliable electrical contact.
- Features a tin-plated copper contact for corrosion resistance and durability.
- Insulated with yellow nylon sleeve for easy wire size identification.
- Designed with serrations inside the barrel for maximum contact and tensile strength after crimping.
- Funnelled wire entry prevents wire strand turn-back for fast and uniform insertion.
- Copper sleeve inside the barrel improves wire insulation support and prevents fraying.
- Operating temperature up to 105°C suitable for demanding electrical environments.
- Overall length measures 33 mm with a 13.5 mm outer ring diameter.
Product Description
TE Connectivity 130205 PIDG Insulated Ring Terminal is engineered for secure electrical connections in a variety of industrial applications. It supports wire sizes ranging from 12 AWG to 10 AWG and features an M6 stud size with precision tooling for consistent crimps.
The terminal is constructed of high conductivity copper with a tin plating finish to ensure reliable conduction and resist corrosion. Its barrel includes serrations that enhance contact and tensile strength after crimping, while the copper sleeve inside the barrel supports insulation integrity preventing wire fray.
The outer insulation is a yellow nylon sleeve that aids in quick wire size identification, contributing to efficient wiring processes in production environments. The funnelled wire entry minimizes strand damage or turn-back, allowing for high-speed wire insertion and uniform crimps when used with specialised tooling dies.
Designed to operate at temperatures up to 105°C, these terminals are suitable for use in demanding environments such as control instrumentation, lighting, power supply panels, transportation equipment, motors, aerospace systems, and general industrial applications.
This PIDG series Ring Terminal provides a versatile wiring solution that meets or exceeds military specification MIL-T-7928, Type II, Class 1 and 2, ensuring consistent reliability and performance in complex electrical circuits.
High conductivity copper body enhances electrical performance. Tin plating provides corrosion resistance for long-term durability. Yellow nylon insulation sleeve facilitates wire gauge identification. Serrated barrel design ensures maximum contact and tensile strength.
Copper sleeve in barrel supports insulation and prevents fraying. Funnelled wire entry prevents wire strand turn-back for smooth insertion. Operates at high temperatures up to 105°C. Suitable for aerospace, industrial, and automotive wiring applications.
