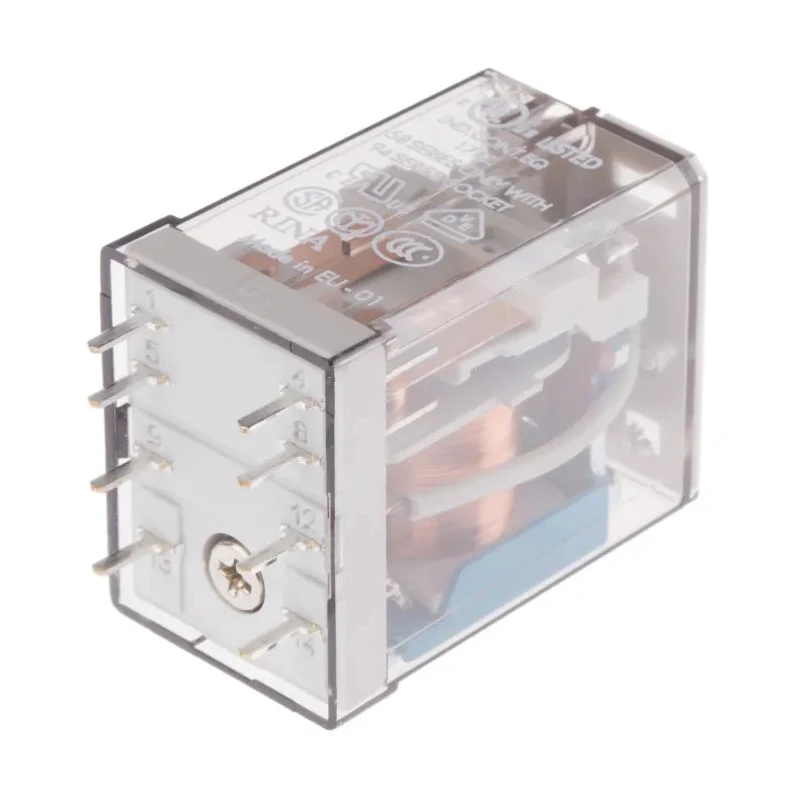

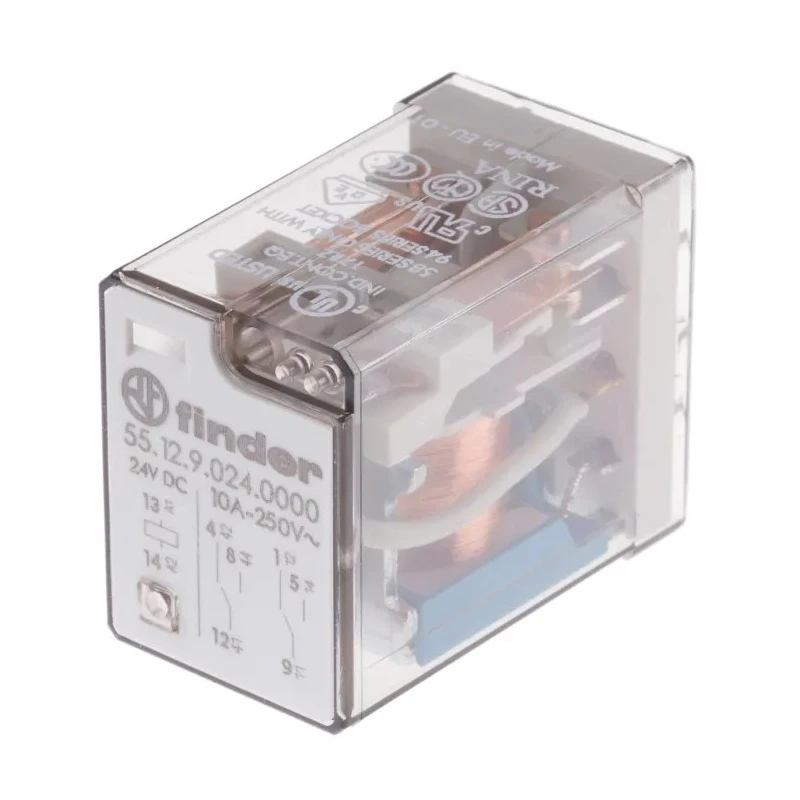

Finder PCB Power Relay 24V DC Coil, 10A Switching Current, DPDT Contact Configuration 55.12.9.024.0000
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 35.8mm |
| Length | 27.7mm |
| Width | 20.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 55 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | CSA, CE, CCC, VDE, RoHS, RINA, EN, EAC, cURus |
| Coil Resistance | 600Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 1W |
Key Features
- Supports a coil voltage of 24V DC for efficient operation.
- Designed with DPDT contact configuration for dual pole double throw switching.
- Switching current capacity of 10A suitable for various electrical loads.
- Constructed with silver alloy contact material for excellent conductivity.
- Mount type is PCB to ensure compatibility with printed circuit boards.
- Operates safely within -40°C to 85°C temperature range.
- Supports switching AC voltage up to 400V AC for versatile applications.
- Coil power rating is 1W for energy-efficient control.
Product Description
Finder 55.12.9.024.0000 is a high-quality PCB Power Relay designed for precise and reliable switching in automation and electrical control systems. This relay utilizes a 24V DC coil and supports a switching current of 10A with a Double-Pole Double-Throw (DPDT) contact configuration, offering versatile and secure circuit control.
Manufactured with durable silver alloy contacts, it ensures optimal electrical conductivity and long service life. The relay's design supports a maximum switching voltage of 400V AC and provides an isolation voltage of 4kV between the coil and contacts, enhancing operational safety in demanding environments.
The device is engineered to operate reliably within a wide temperature range from -40°C to +85°C, making it suitable for use in various industrial, manufacturing, and automation applications. Its compact form factor with dimensions of 27.7mm length, 20.7mm width, and 35.8mm height facilitates easy PCB mounting, integrating seamlessly into electronic assemblies.
This relay complies with multiple international safety and quality standards such as CSA, CE, CCC, VDE, RoHS, RINA, EN, EAC, and cURus, guaranteeing its suitability for global applications.
Common uses include controlling motors, actuators, and relay logic systems in electrical installations, as well as operation in safety and alarm systems where precise switching capability is critical.
Supports coil voltage of 24V DC for stable activation. 10A switching current capacity meets typical load requirements. DPDT contact configuration provides flexible circuit control. Silver alloy contacts ensure high conductivity and durability.
Compact size allows easy integration on PCB mounting applications. Wide operating temperature range from -40°C to 85°C ensures reliability under harsh conditions. Maximum switching voltage of 400V AC accommodates diverse applications.
Compliance with multiple global safety and quality standards. Isolation voltage of 4kV enhances safety between coil and contacts. Suitable for industrial, manufacturing, HVAC, and automation use cases. Explore other relays and electrical components in EnvMart's Electronics & Electricals category for comprehensive solutions that meet your industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current capacity of 10A, making it suitable for various electrical loads.
It operates with a coil voltage of 24V DC, ensuring stable activation.
The relay features a Double-Pole Double-Throw (DPDT) contact configuration, allowing for versatile circuit control.
It supports a maximum switching voltage of 400V AC, accommodating diverse applications.
The dimensions of this model are 27.7mm in length, 20.7mm in width, and 35.8mm in height.
It operates reliably within a temperature range of -40°C to +85°C, suitable for harsh environments.
The contacts are constructed from silver alloy, ensuring excellent conductivity.
This unit is designed for PCB mounting, allowing easy integration into electronic assemblies.
The coil power rating is 1W, contributing to energy-efficient control.
It complies with multiple international safety and quality standards including CSA, CE, CCC, VDE, RoHS, RINA, EN, EAC, and cURus.
The isolation voltage between the coil and contacts is 4kV, enhancing operational safety.
It is suitable for controlling motors, actuators, and relay logic systems in various industrial and automation applications.
