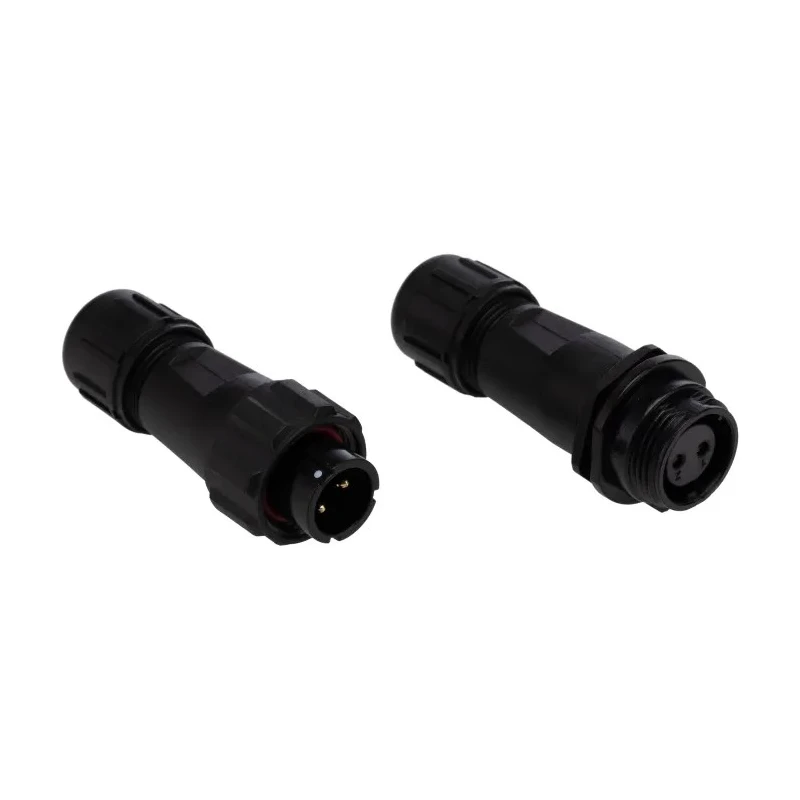

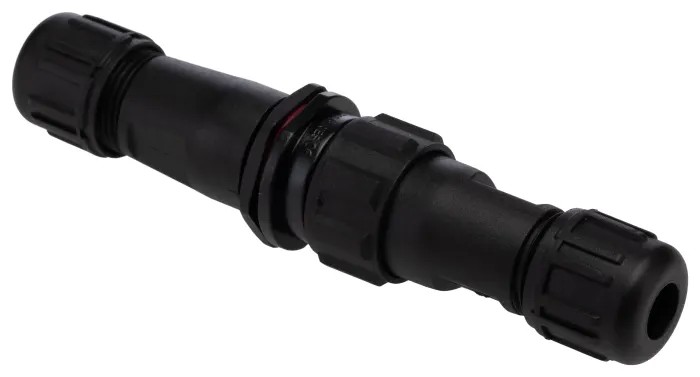

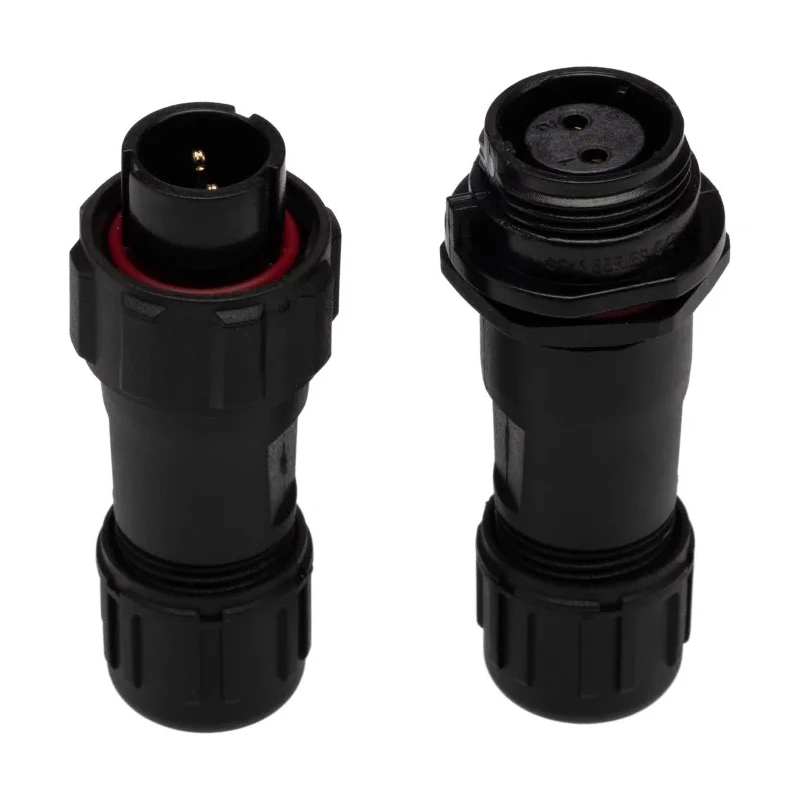

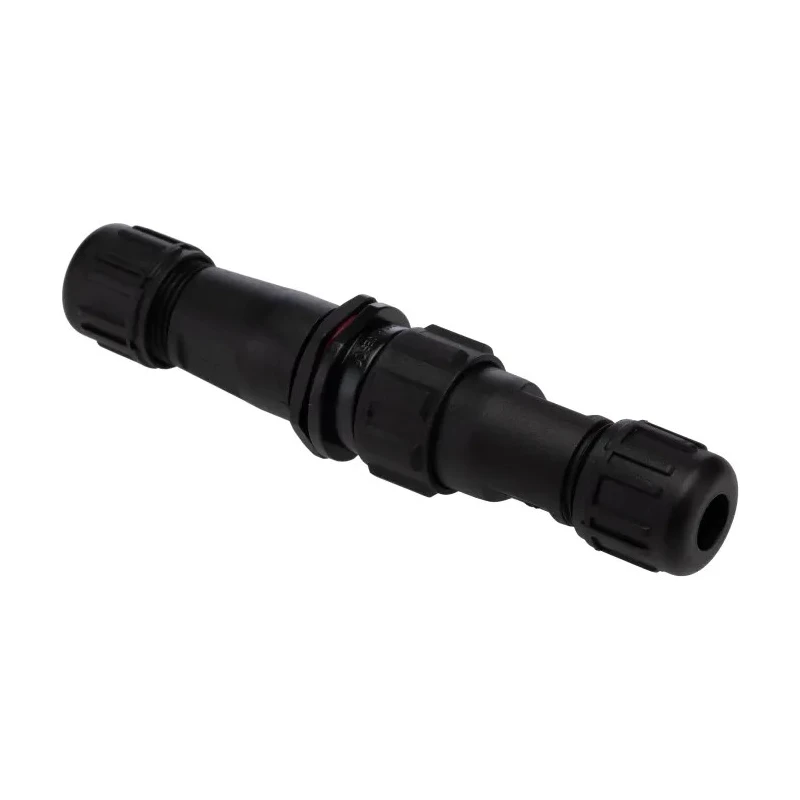

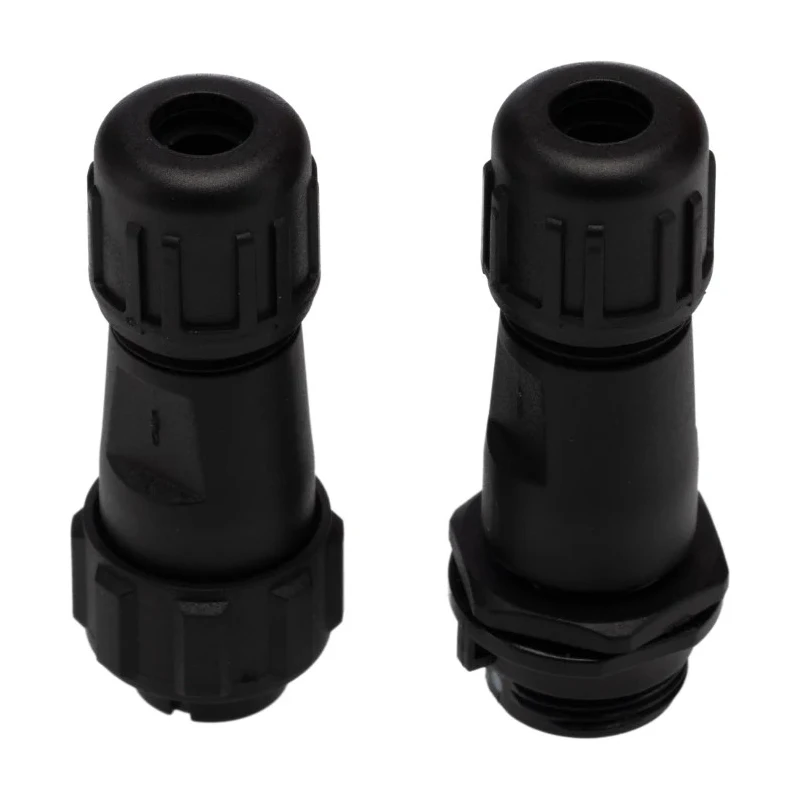

RS PRO Circular Connector, Miniature Cable Mount, 2 Contacts, Plug & Socket, Male and Female, Threaded Mating 144-0627

RS PRO 144-0627 is a circular miniature cable mount connector with 2 contacts for industrial power, signal, and data transmissions. This connector combines a plug and socket pair with male and female brass contacts plated in gold to ensure highly reliable conductivity and resistance against corrosion. Its robust polyamide 66 and polycarbonate housing protects against mechanical shocks and extreme weather conditions, making it suitable for heavy-duty industrial environments.

Rated for IP68 ingress protection, the connector remains waterproof when submerged beyond 1 meter for prolonged periods and is dust tight, offering full protection against small corrosive particles. It supports a continuous current rating of 13 amperes and a voltage rating of 250 volts. The threaded mating type ensures secure, vibration-resistant connections in the field.

Operating temperature ranges from -40°C to +85°C, enabling performance stability under temperature extremes encountered in industrial, manufacturing, water treatment, and HVAC applications. The solder termination ensures a reliable electrical joint for long-term durability.

The straight orientation of the connector facilitates inline cable mounting, within compact assemblies due to its miniature size. This connector is a vital component for electrical installations demanding ruggedness and high reliability where environmental sealing and electrical performance are critical.

The IP68 rating guarantees waterproof and dust-tight protection for dependable operation. Brass contacts with gold plating provide excellent electrical conductivity and corrosion resistance. Robust polyamide 66 and polycarbonate housing protects against environmental stresses.

Threaded mating ensures secure and vibration-resistant connections. Temperature range from -40°C to +85°C supports use in harsh industrial environments. Solder termination type delivers strong and durable electrical connections.

Compact miniature size and straight orientation allow space-efficient inline cable mounting.

This RS PRO SP13 series 144-0627 circular connector is ideally suited for industrial, manufacturing, laboratory, water treatment, and HVAC equipment applications requiring ruggedized, high-performance cable connections with ingress protection to IP68.
