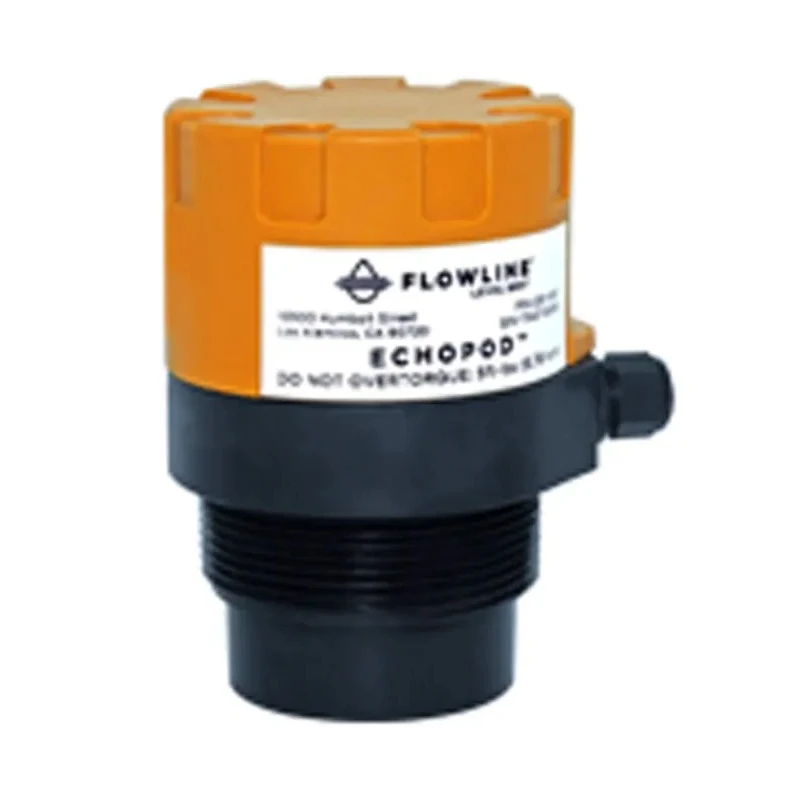

Flowline Reflective Ultrasonic Liquid Level Transmitter Horizontal Vertical Polypropylene Housing US03
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Flowline |
| Model | US03 |
| Cable Length | 1.2m |
| Mount Type | Horizontal, Vertical |
| Housing Material | Polypropylene |
| Series | US03 |
| Maximum Operating Temperature | 80°C |
| Maximum Pressure | 2bar |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 20mA |
| Device Type | Reflective Ultrasonic Liquid Level Transmitter |
| Interface Type | USB |
| Maximum dc Voltage | 28V dc |
| Standards/Approvals | CE, CSA, cUS |
Key Features
- Measures liquid levels up to 3 meters with high accuracy.
- Equipped with a 1.2 m cable for flexible installation.
- Polypropylene housing and PVDF transducer suitable for corrosive environments.
- Operates between -40°C and 80°C temperature range.
- USB interface for easy configuration via Flowline WebCal software.
- Compact IP68 rated Type 6P enclosure for durability in harsh conditions.
- Maximum pressure rating of 2 bar and maximum DC voltage of 28 V dc.
- Reliable fail-safe diagnostics with configurable signal outputs.
Product Description
Flowline US03 Reflective Ultrasonic Liquid Level Transmitter is engineered for precise and reliable liquid level sensing in various industrial, process, and water treatment applications. It employs proprietary Reflective Technology, ideal for challenging condensing environments, providing continuous level measurement up to 3 meters with a 4 mA to 20 mA analog output configurable through USB using Flowline's WebCal software.
Designed for both horizontal and vertical mounting, the transmitter features a rugged polypropylene housing and chemically resistant PVDF transducer, making it suitable for use in corrosive liquid environments.
The device features a cable length of 1.2 meters, supports a wide operating temperature range from -40°C to 80°C, and withstands pressures up to 2 bar. Its compact Type 6P (IP68) enclosure ensures protection for use in harsh industrial and process tank settings such as day tanks, IBCs, drums, cooling towers, skids or machines, and waste sumps.
Fail-safe diagnostics provide selectable fail-safe signal outputs, ensuring safety and reliability during operation. The transmitter complies with CE, CSA, and cUS standards but is not suited for hazardous area certification.
This product is manufactured in the United States and delivered in new condition, ready to fulfill measurement requirements in industrial automation, water treatment, manufacturing, and HVAC systems.
Continuous liquid level measurement using advanced Reflective Technology. Compact polypropylene enclosure offers high resistance to harsh environments. USB interface allows easy configuration and calibration. Suitable for horizontal and vertical mounting orientations.
Operating temperature range from -40°C to 80°C accommodates diverse application needs. Fail-safe operation with configurable diagnostic outputs increases system reliability. Compliance with international approvals including CE, CSA, and cUS guarantees quality and safety.
Explore more Flowline Level Transmitter products for robust and accurate liquid level monitoring on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It measures liquid levels up to 3 meters with high accuracy.
The operating temperature range is from -40°C to 80°C.
It provides a 4 mA to 20 mA analog output, configurable via USB using Flowline's WebCal software.
The housing is made of polypropylene, and the transducer is made of chemically resistant PVDF, suitable for corrosive environments.
It is designed for both horizontal and vertical mounting, providing flexibility in installation.
It comes with a cable length of 1.2 meters for flexible installation.
The maximum pressure rating is 2 bar.
Yes, it includes fail-safe diagnostics with configurable signal outputs to enhance safety and reliability.
It complies with CE, CSA, and cUS standards, ensuring quality and safety.
The maximum DC voltage rating is 28 V dc.
It is suitable for various industrial, process, and water treatment applications, including day tanks, IBCs, and waste sumps.
Configuration is performed via a USB interface using Flowline's WebCal software, allowing easy setup and calibration.
