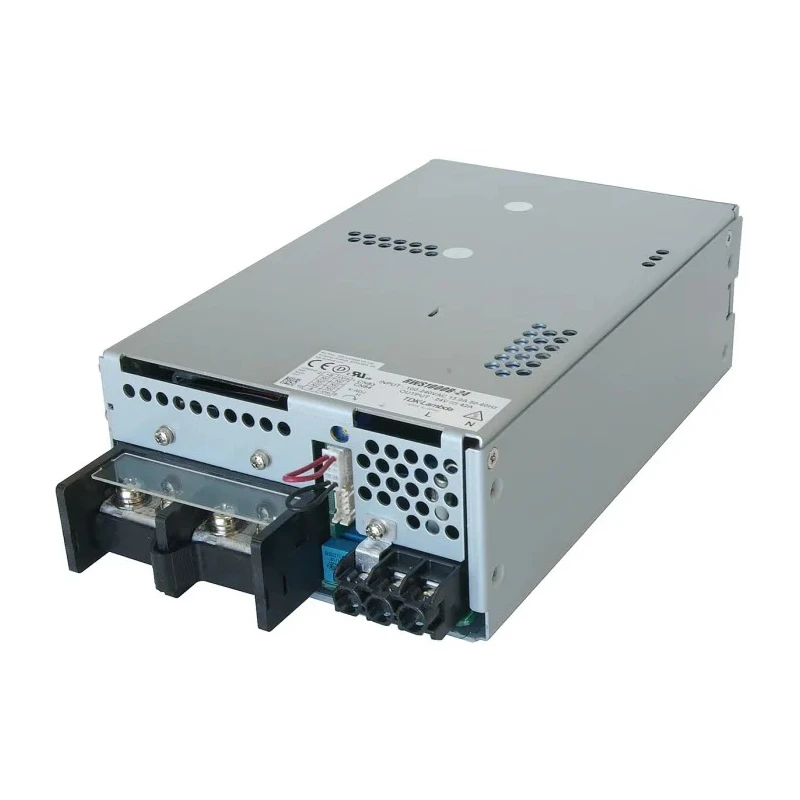

TDK-Lambda RWS1000B-48 Switching Power Supply 48V DC, 1 kW, Panel Mount, 21A Output Current RWS1000B-48
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | TDK-Lambda |
| Power | 1kW |
| Efficiency | 88% |
| Length | 198mm |
| Model | RWS1000B-48 |
| Depth | 63mm |
| Gross Weight | 2kg |
| Width | 63mm |
| Mount Type | Panel |
| Series | RWS1000B |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 340, 265V dc |
| Maximum Output Voltage | 48V dc |
| SMPS Output Current | 21A |
| Minimum Input Voltage | 265V ac |
| Conducted and radiated EMI | EN55011 / EN55022-B, FCC Class B, VCCI-B |
Key Features
- Maximum output voltage of 48V DC with a single output configuration.
- Supports SMPS output current of 21A for high power applications.
- Operates from a universal AC input voltage range of 85V to 265V AC and up to 340V DC.
- Compact and durable panel mount construction with dimensions 198mm length x 63mm width x 63mm depth.
- Wide operating temperature range from -20°C to 60°C suitable for harsh conditions.
- High efficiency of 88% to reduce energy loss and operational costs.
- Conforms to multiple international standards including EN 61000 series, IEC/UL/CSA/EN 62368-1, VCCI-B, CE, and FCC Class B EMI compliance.
Product Description
TDK-Lambda RWS1000B-48 Switching Power Supply is a robust industrial-grade power supply designed for reliable delivery of 48V DC output at 1 kW power capacity. This panel mount power supply supports a single output configuration providing 21A current, making it suitable for demanding automation, broadcast, test and measurement, and LED signage applications.
The RWS1000B-48 series features a compact and enclosed construction with dimensions measuring 198mm in length, 63mm width, and 63mm depth, facilitating easy integration into control panels and equipment racks. It maintains operational stability with an extended temperature range from -20°C up to 60°C, ensuring consistent performance in varied environmental conditions.
Engineered with high efficiency at 88%, this power supply minimizes energy waste while delivering steady output voltage and current. It operates from a universal AC input voltage range of 85V to 265V AC, with a maximum input voltage of 340V DC, accommodating fluctuating power sources effectively.
Compliance with international EMI and safety standards including EN 61000-4 series, IEC/UL/CSA/EN 62368-1, VCCI-B, CE mark, and FCC Class B underscores its suitability for industrial and commercial environments requiring electromagnetic compatibility and safety assurance.
The power supply’s long electrolytic capacitor lifespan enhances reliability, lowering maintenance requirements and cost of ownership. Its design supports system integrity and eases compliance for industrial automation, manufacturing, and testing applications.
Maximum output voltage of 48V DC with single output. 21A SMPS output current for high power delivery. Universal AC input voltage from 85V to 265V AC, max 340V DC input. Compact panel mount design measuring 198x63x63 mm. Wide operational temperature from -20°C to 60°C.
High efficiency rating of 88% to reduce energy consumption. Multiple international EMI and safety standards compliance.
This TDK-Lambda RWS1000B-48 power supply is optimal for industrial machinery, automation systems, broadcast equipment, LED signage, and testing instrumentation. It combines compactness, efficiency, and compliance to support demanding electrical power requirements.
Explore more industrial power supplies and TDK-Lambda products on EnvMart for advanced power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 48V DC.
It supports a single output current of 21A.
This power supply has an efficiency rating of 88%.
The dimensions are 198mm in length, 63mm in width, and 63mm in depth.
It operates within a temperature range of -20°C to 60°C.
This model is designed for panel mounting.
It conforms to multiple standards including EN 61000 series, IEC/UL/CSA/EN 62368-1, VCCI-B, CE, and FCC Class B.
The gross weight of this power supply is 2kg.
It is suitable for automation, broadcast, test and measurement, and LED signage applications.
This power supply has a single output configuration.
The country of origin for the RWS1000B-48 is Malaysia.
