TDK-Lambda Switched Mode DIN Rail Power Supply 264V AC/DC Input, 24V DC, 4.2A Output, 100W DPP100-24

Free Delivery in India | Lowest Global Shipping Charges

TDK-Lambda Switched Mode DIN Rail Power Supply 264V AC/DC Input, 24V DC, 4.2A Output, 100W DPP100-24

Name: TDK-Lambda Switched Mode DIN Rail Power Supply 264V AC/DC Input, 24V DC, 4.2A Output, 100W DPP100-24
Brand: TDK-Lambda
SKU: 194621



Category DIN Rail Power Supplies Brand TDK-Lambda Condition New

Specifications

Country of Origin	Taiwan
Brand	TDK-Lambda
Power	100W
Efficiency	87%
Height	75mm
Model	DPP100-24
Depth	96.7mm
Width	73mm
Series	DPP
Output Current	4.2A
Maximum Operating Temperature	71°C
Sub Type	Switched Mode
Minimum Operating Temperature	-10°C
Number of outputs	1
Maximum Input Voltage	264V ac
Electrical Phase	1
Maximum Output Voltage	24V dc
Minimum Input Voltage	85V ac

Key Features

Supports universal AC/DC input voltage from 85V to 264V AC.
Compact size with dimensions 75mm height, 73mm width, and 96.7mm depth.
High efficiency up to 87% and active power factor correction (PFC).
Convection cooled design with LED indicator for operational status.
Wide operating temperature range from -10°C to 71°C.
Adjustable output voltage range from 22.5V DC to 28.5V DC.
Equipped with load sharing and high immunity for industrial environments.
Suitable for factory automation, industrial controls, and process measurement applications.

Product Description

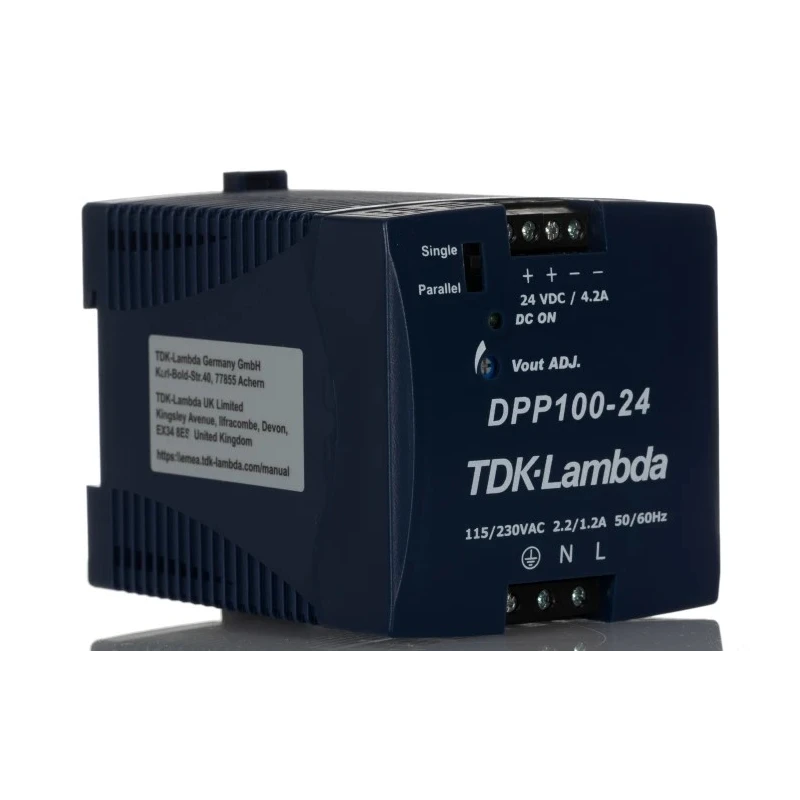

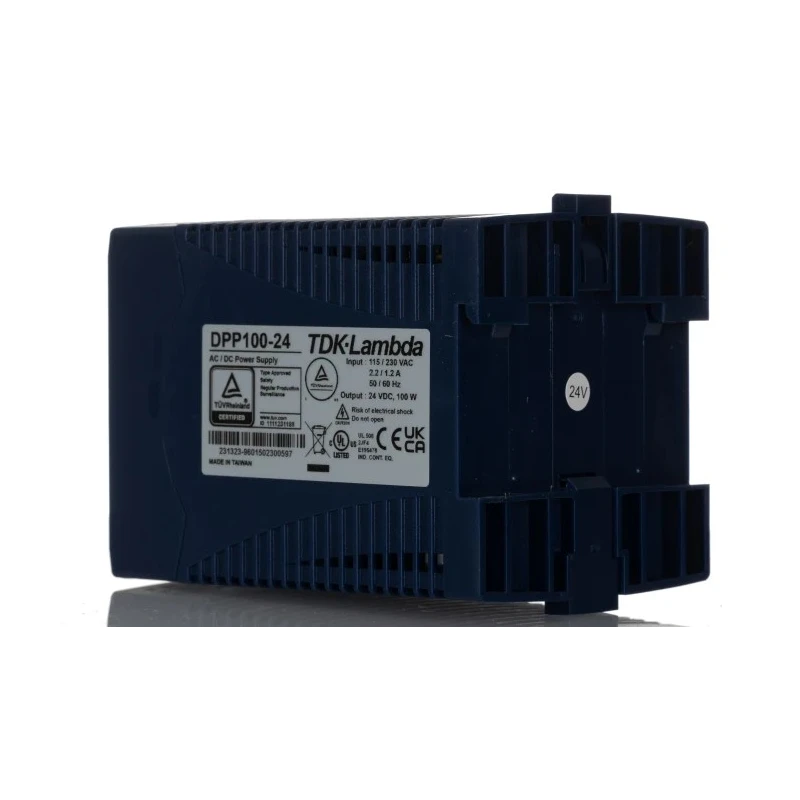

TDK-Lambda DPP100-24 is a switched mode DIN rail power supply engineered to deliver reliable 24V DC output at 4.2A with a total power capacity of 100 watts. Featuring a universal AC/DC input voltage range from 85V to 264V AC, this compact power supply ensures compatibility with various industrial electrical systems.

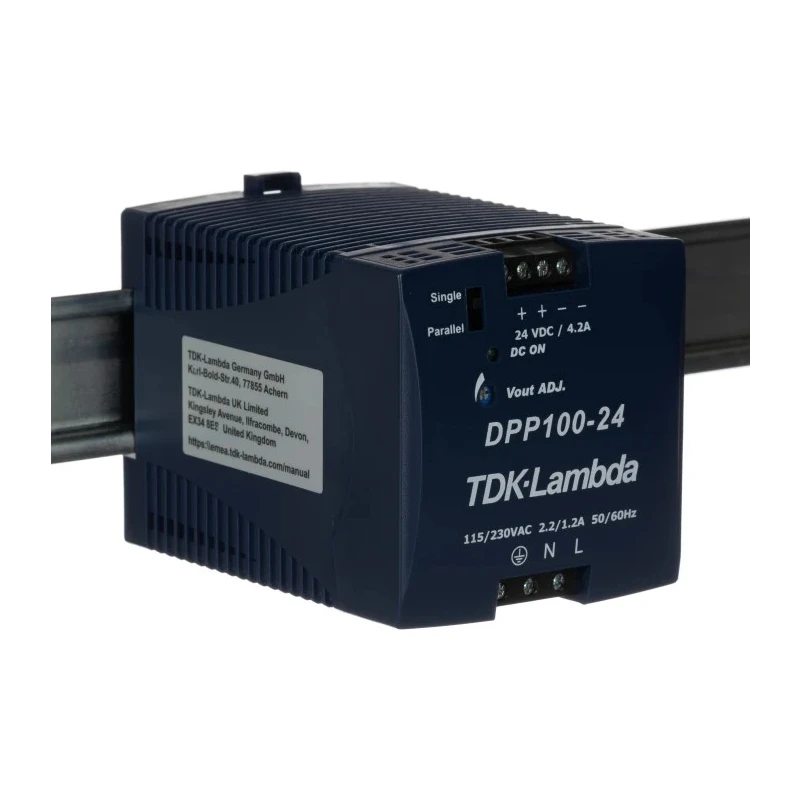

The device measures 75mm in height, 73mm in width, and 96.7mm in depth, optimized for space saving in DIN rail mounting setups. Its advanced active power factor correction (PFC) combined with a high efficiency rating of up to 87% reduces energy losses and operational costs. Convection cooling and an LED indicator improve system integration and provide clear operational status monitoring without requiring additional cooling accessories.

Designed for extreme conditions, it operates efficiently within temperatures ranging from -10°C to 71°C. The output voltage is adjustable between 22.5V DC and 28.5V DC to accommodate specific devices and system tolerances. Robust load sharing capabilities and high immunity make this unit suitable for demanding industrial environments.

Universal AC/DC input voltage from 85V to 264V AC. 100W power output with 4.2A current at 24V DC nominal voltage. Compact DIN rail mounting with 75x73x96.7 mm dimensions. Convection cooling with LED status indicator. Wide operating temperature range from -10°C to 71°C.

Adjustable output voltage from 22.5V DC to 28.5V DC. Active power factor correction (PFC) for improved efficiency up to 87%. Load sharing and high immunity for industrial environments. Certifications: CE and UL approved.

This power supply is ideal for applications in factory automation, industrial control systems, process control instrumentation, and test and measurement equipment requiring stable 24V DC power.
