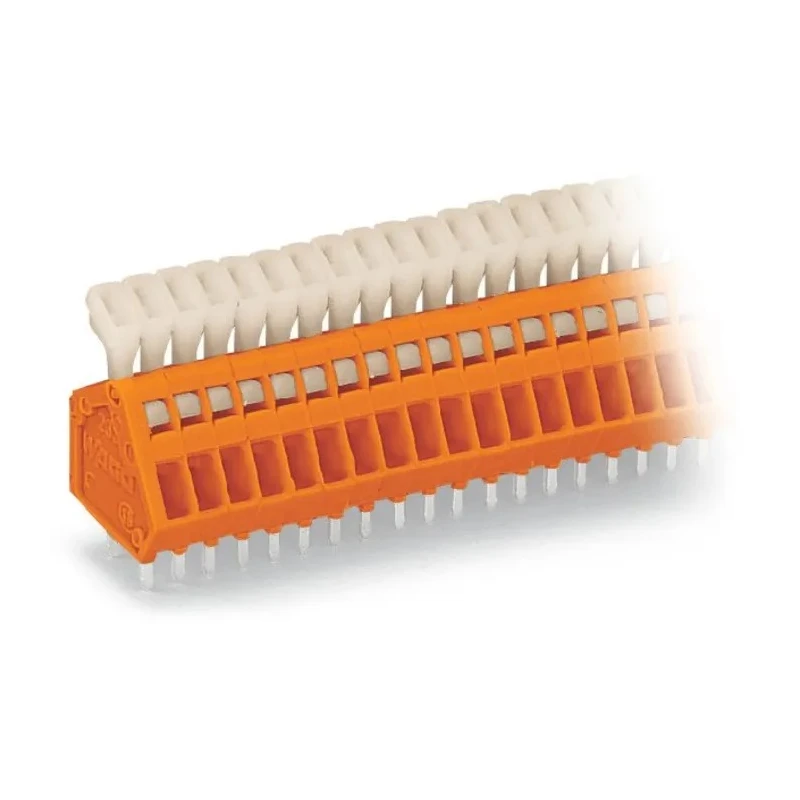

WAGO PCB Terminal Block, 5-Contact, 2.54 mm Pitch, 1 Row, Polyamide 66, Orange, Push-in, 150V, Model 233-505

WAGO 233-505 PCB Terminal Block is designed for efficient and reliable connection of wires to printed circuit boards in electronic and electrical systems. Featuring a single row with 5 contacts and a 2.54 mm pitch, this terminal block ensures compact arrangement and optimizes space usage on PCBs. The polyamide 66 (PA66) housing provides superior insulation and mechanical strength, supporting long-term durability in demanding applications.

Its push-in wire connection method allows for quick and secure installation, minimizing assembly errors and enhancing productivity. The block accommodates wire sizes between 0.08 mm² and 0.5 mm², as well as AWG 28 to AWG 20, offering versatility for a wide range of wiring requirements. With a 4A current rating and 150V voltage capacity, the terminal block meets stringent performance criteria for industrial, laboratory, and commercial electronic assemblies.

Orange color facilitates easy identification and organization on PCBs, and the straight orientation simplifies alignment during mounting. Compliance with CSA and UL standards assures users of product quality and safety. The compact form factor (19.5 mm length, 15 mm width, 13.9 mm depth) allows installation in high-density electronic layouts.

Single row, 5-contact configuration for optimized PCB layouts. Push-in connection reduces installation time and provides secure fit. Polyamide 66 material offers excellent electrical insulation and mechanical strength. Support for multiple wire sizes increases versatility in circuit design.

Designed for 4A current and 150V voltage requirements. Distinct orange color improves visual tracking during assembly. CSA and UL compliance for international standards compatibility. Compact dimensions ensure compatibility with space-constricted PCB environments.

Typical applications include electronic circuit prototyping, PCB manufacturing, laboratory instrumentation, industrial control panels, and commercial electronics. Use in construction, manufacturing, and automation systems where robust PCB connection solutions are required.
