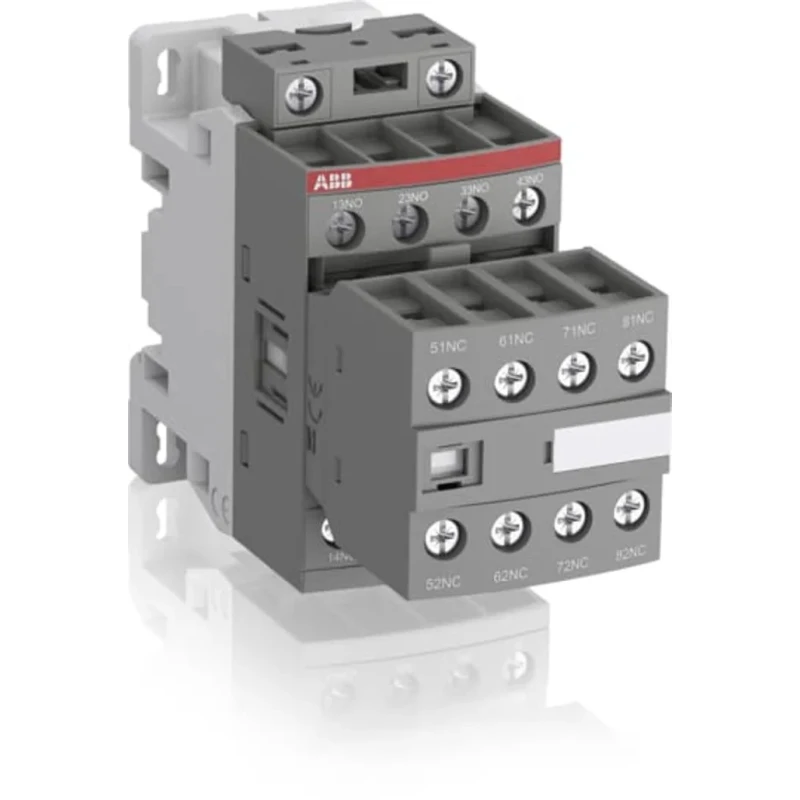

ABB NFZ Contactor Relay 1SBH136001R2353, 250V DC Coil, 8-Pole, 6A, 140W, 5 NO/3 NC, Screw Terminal, DIN Rail, 690V

Free Delivery in India | Lowest Global Shipping Charges

ABB NFZ Contactor Relay 1SBH136001R2353, 250V DC Coil, 8-Pole, 6A, 140W, 5 NO/3 NC, Screw Terminal, DIN Rail, 690V



Category Contactor Relay Brand ABB Condition New

Specifications

Country of Origin	France
Brand	ABB
Length	110.5mm
Model	1SBH136001R2353
Depth	110.5mm
Width	45mm
Mount Type	DIN Rail
Series	NFZ
Power Rating	140W
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	8
Contact Voltage	690V
Coil Voltage	250V dc
Normal State Configuration	5 NO/3 NC
Contact Current	6A
Number of Auxiliary Contacts	8
Auxiliary Contact Configuration	5 NO/3 NC
Operational Current Ie	6A
Control Circuit Voltage Uc	690V
Pole and Throw Configuration	8

Key Features

Designed for auxiliary and control circuit switching applications.
Features a 250V DC coil for broad voltage compatibility.
Supports up to 8 poles and handles a contact current of 6A.
Equipped with 5 NO and 3 NC contact configuration for versatile operation.
Delivers a power rating of 140W for demanding environments.
Mounts easily on DIN rail for secure industrial installation.
Screw terminal design ensures robust electrical connections.
Complies with international standards for safety and performance.

Product Description

ABB 1SBH136001R2353 NFZ Contactor Relay, featuring a 250V DC coil, provides reliable auxiliary circuit switching for a range of industrial automation applications. With an 8-pole configuration and a contact current rating of 6A, this relay is engineered for demanding control environments such as motor management systems, PLC outputs, and industrial machinery switching.

The compact relay offers a power rating of 140W, supporting efficient performance in automation and control tasks. The 5 NO (normally open) and 3 NC (normally closed) contact arrangement gives users versatile switching capability, making it suitable for multifaceted electrical systems.

Designed for auxiliary and control circuit switching applications. Features a 250V DC coil for broad voltage compatibility. Supports up to 8 poles and handles a contact current of 6A. Equipped with 5 NO and 3 NC contact configuration for versatile operation.

Delivers a power rating of 140W for demanding environments. Mounts easily on DIN rail for secure industrial installation. Screw terminal design ensures robust electrical connections. Complies with international standards for safety and performance.

Operates reliably between -40°C and 70°C ambient temperatures. Suitable for PLC outputs and motor control circuits.

The relay incorporates built-in surge protection to guard against voltage dips and sags, providing continuous operational reliability. Its screw terminal design allows for quick and sturdy installation within control panels, while DIN rail mounting enables flexible placement in diverse enclosure types.

ABB's NFZ Series is recognized for its robust build and compliance with international quality standards (such as CE, UL, IEC 60947-5-1, and RoHS), ensuring safety and longevity in industrial environments. The relay is manufactured in France and is ideal for use in automation systems, machinery control, and commercial electrical installations.

Typical applications include industrial machinery, PLC output modules, motor switching, and reliable circuit management within manufacturing, HVAC, and water treatment facilities. This relay supports integration into advanced automation control systems where reliability and performance are critical.
