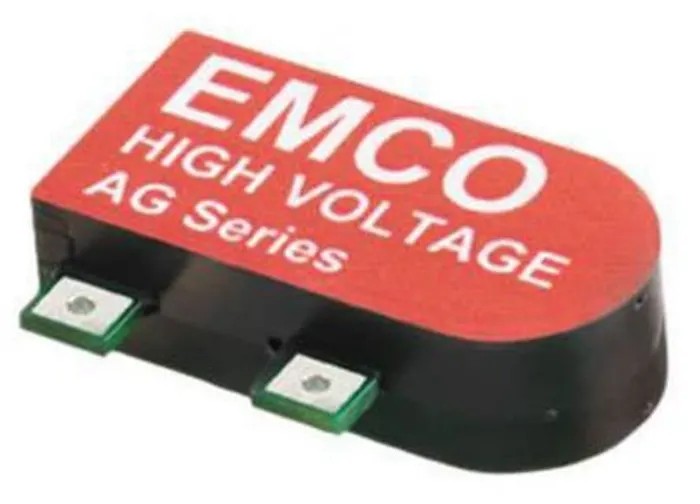

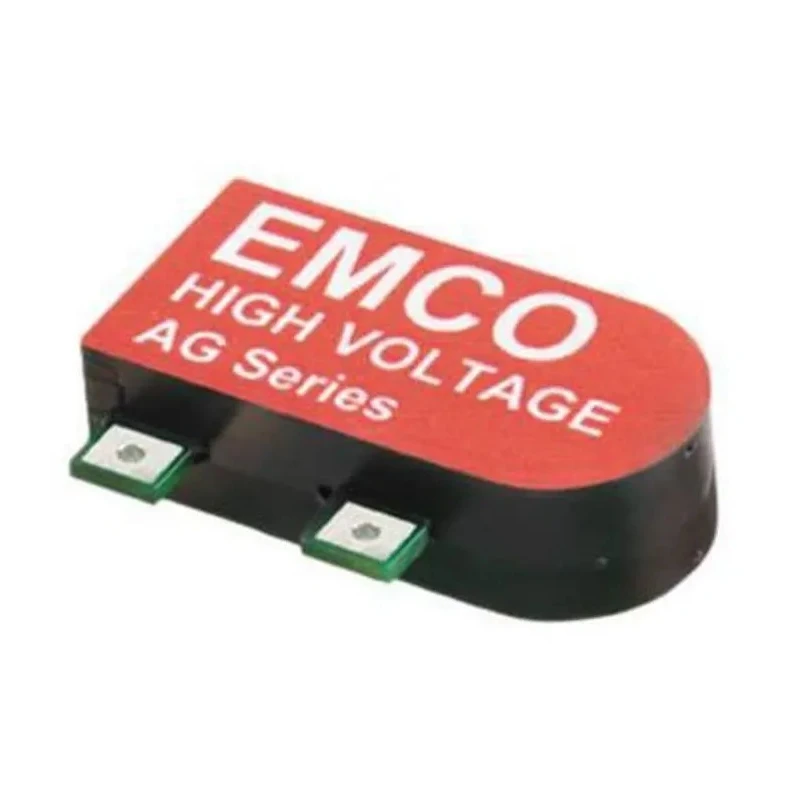

XP Power AG10P-5 Isolated DC/DC Converter, 1 kV DC Output, 1 mA, Input 5V DC, Surface Mount, 1 W, 75°C Max
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power Ag DC/DC Converter, 1kV dc/ 1 mA, 5V dc I |
| Brand | XP Power |
| Length | 23.37mm |
| Model | AG10P-5 |
| Depth | 6.35mm |
| Gross Weight | 5.7g |
| Width | 17.53mm |
| Mount Type | Surface |
| Series | Ag |
| Maximum Operating Temperature | 75°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -25°C |
| MTBF | 1862000h |
| Number of outputs | 1 |
| Ripple and Noise | 0.79% Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5V dc |
| Output Voltage 1 | 1kV dc |
| Output Current 1 | 1mA |
| Isolation Voltage | 500V |
Key Features
- Isolated DC/DC converter with 1kV DC output voltage and 1mA current.
- Operates with a stable 5V DC input for consistent performance.
- Compact surface mount package ideal for space-limited designs.
- Maximum output power of 1W and wide operating temperature range (-25°C to 75°C).
- MTBF rating of over 1.86 million hours ensures long-term reliability.
- 500V galvanic isolation for safe and robust operation.
- Low ripple and noise with a peak-to-peak rating of 0.79%.
- Suitable for photomultiplier tubes, mass spectrometry, ion pumps, and capacitor charging.
Product Description
The XP Power AG10P-5 Isolated DC/DC Converter is a specialized compact solution engineered for applications requiring reliable high-voltage DC output and robust electrical isolation. This converter provides a 1kV DC output at up to 1mA, powered by a low-voltage 5V DC input, making it ideal for integration into electronic devices demanding efficient conversion and minimal size and weight. Surface mount design ensures a small footprint and suitability for modern PCB layouts.
Its advanced proportional input/output architecture and quasi-sinewave oscillator promote exceptional performance, complemented by galvanic input-output isolation rated at 500V. The converter delivers a maximum output power of 1W and offers short circuit protection for at least one minute, ensuring safe operation and resilience against electrical faults.
Isolated DC/DC conversion: 1kV DC output, 1mA maximum current. Exclusive surface mount design for efficient electronic assembly. Extensive MTBF: 1,862,000 hours for long-term industrial reliability. Ripple and noise maintained at 0.79% peak-to-peak, safeguarding sensitive electronics.
Operates reliably from -25°C to 75°C, well-suited for harsh environments. Proportional input/output, control pin, low leakage current, and low output/input capacitance. avalanche photodiodes, capacitor charging, electrophoresis, photomultiplier tubes, piezo devices, mass spectrometry, sustaining ion pumps.
No minimum load required, external component-free integration.
This converter meets demanding industry requirements for efficiency, safety, and performance, with robust isolation for critical scientific, laboratory, and industrial applications. Designed for engineers developing equipment in medical, analytical, and test instrument sectors, it enhances longevity and reliability in the most challenging use cases.
Mounting is simplified by the surface package dimensions (length: 23.37mm, width: 17.53mm, depth: 6.35mm), and unit weight is only 5.7g, contributing to compact and lightweight project builds. With origins in the United States and manufactured under the XP Power brand, AG10P-5 stands as a leading choice for isolated DC conversion solutions.
Visit EnvMart for more advanced DC-DC Converters and reliable power solutions from XP Power.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output voltage of 1kV DC and a maximum output current of 1mA.
The AG10P-5 operates with a stable input voltage of 5V DC.
The maximum output power of this unit is 1W.
It can operate reliably in a temperature range from -25°C to 75°C.
This model features a surface mount design, making it suitable for compact PCB layouts.
The dimensions of this unit are 23.37mm in length, 17.53mm in width, and 6.35mm in depth.
The AG10P-5 maintains a ripple and noise level of 0.79% peak-to-peak.
It offers galvanic isolation rated at 500V, ensuring safe operation.
This model has an MTBF rating of over 1.86 million hours, indicating long-term reliability.
It is suitable for applications such as photomultiplier tubes, mass spectrometry, ion pumps, and capacitor charging.
No, this converter does not require a minimum load for operation, allowing for external component-free integration.
The weight of this unit is 5.7g, contributing to its compact design.
